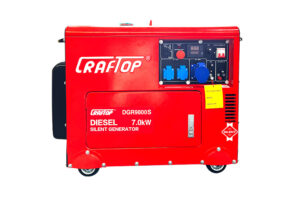

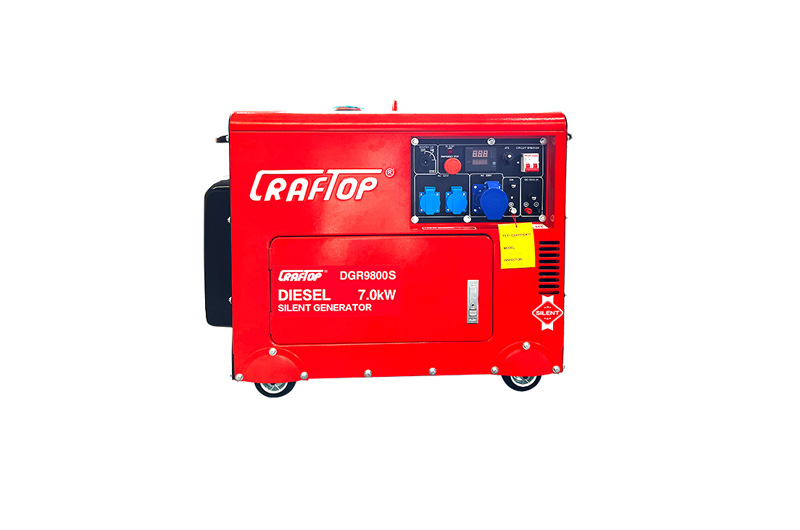

Diesel Generator DGR9800S

1. CRAFTOP Diesel Generator: the Silent Champion with advanced noise reduction and airflow design for a tranquil working environment.
2. EURO V certified engine delivers powerful performance and driving pleasure.
3. 100% copper motor ensures high efficiency and stable voltage output.
4. Convenient features like air preheating for easy cold starts.
5. Optional remote control and ATS technology for seamless power transitions.
6. Intelligent control panel with comprehensive protection.
7. Versatile applications for homes, shops, and emergencies.


CRAFTOP Diesel Generator, the Silent Champion! Its unique dual-stage noise reduction system and advanced airflow design create a tranquil working environment. With high-quality, ultra-effective sound-absorbing materials and scientifically engineered vibration isolation, it ensures quiet operation, allowing you to savor moments of tranquility.

Unleash the Power! The CRAFTOP four-stroke diesel engine delivers exhilarating performance. With top clearance oil pump and low inertia fuel injection technology, it achieves thorough combustion and robust power. EURO V certified, it guarantees top-notch quality, offering you an enjoyable driving experience.

Efficiency at Its Finest! Choose the pinnacle of quality. The 100% copper motor with F-class insulation ensures high conversion efficiency. Intelligent voltage AVR regulation provides stable voltage output with minimal waveform distortion, giving you a pure power experience.

No Worries for Cold Starts! The CRAFTOP Diesel Generator is equipped with an air preheating system, effortlessly handling low-temperature conditions. Start with ease anytime, anywhere, keeping your life and work uninterrupted.

Smart Control for Convenient Living! Optional remote control technology and ATS automatic switching enable swift transitions between mains and diesel power. Technology guides your way, making life smarter.

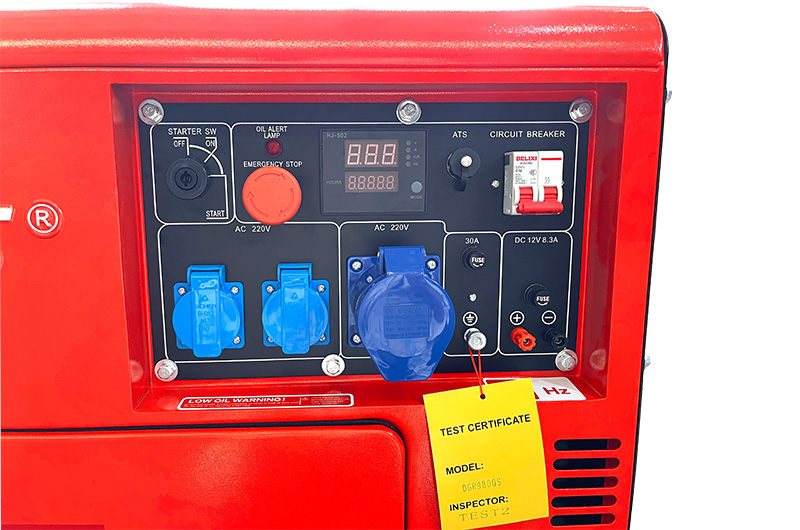

Safety and Reliability! The CRAFTOP Diesel Generator features an intelligent digital display control panel with comprehensive protection against overload, overvoltage, overcurrent, and low voltage. Enjoy worry-free living with all-around protection and high-quality performance.

Versatile Applications! The CRAFTOP Diesel Generator is widely used in homes, shops, and various emergency scenarios. Wherever and whenever you need power, it safeguards your life and work, ensuring an uninterrupted flow of energy.


Product Name 7.0kW Silent Diesel Generator
Model Name DGR9800S
Generator type (avr/inverter) AVR-CASE
Motor type (2stroke/4stroke/diesel) 4Stroke/Diesel
Displacement (cc) 499cc
Power output (rpm) 3600rpm
Oil engine capacity (L) 1.65L
Three phase max power
Three phase rated power
Single phase max power (kW) 7.0kW
Single phase rated power (kW) 6.5kW
Voltage (V) 110V+220V
Frequency (Hz) 60Hz
Fuel consumption (g/kWh or L/h) ≤280g/kWh
Running time at 75% of load hours 12V/6A
Tank capacity (L) 30L
Starting system Recoil&Electric
Guaranteed sound level ( (LWA) dB (A))* 220A
Noise emission at 7m (dB (A))* 72dB
Weight (kg(lbs)) 171kg
Socket type ac (eu/uk/usa..) USA
Number of sockets AC 3 Postion
Socket type DC Post
Number of sockets DC 2 Post
Oil guard
Oil alarm
Fuel level gauge
Thermic protection
Hour meter
Volt meter
Frequency meter
Wheel kit
Battery charger
Box size (mm) 910x530x840mm
Box weight (kg(lbs)) 171kg
Units container 20/40/40HQ 48/167pcs(20/40HQ)

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.



Q       How often should I maintain a gasoline-powered light generator?
A       Regular maintenance is essential to ensure optimum performance. This includes changing the oil, cleaning the air filter, checking the spark plugs, draining the fuel when not used for a long time, and performing periodic inspections of crucial parts.
Q       How much fuel does a gasoline light generator consume?
A       Fuel consumption varies according to the generator’s power and the load it is subjected to. Our generators are most efficient when they run close to their maximum capacity.
Q       Are gasoline-powered light generators noisy?
A       No, at Craftop, we specialize in controlling noise emissions from our gasoline-powered light generators.
Q       Can they be used indoors?
A       It is recommended to use our gasoline light generators indoors with adequate ventilation. Although our gasoline generators have the best quality and safety, they emit tiny amounts of exhaust gases that can pollute the air.
Q       How long can a gasoline-powered generator run continuously?
A       A gasoline generator’s continuous run time depends on the fuel tank’s size and the load it is powering. In general, generators can run for several hours at full load before requiring a refueling.
