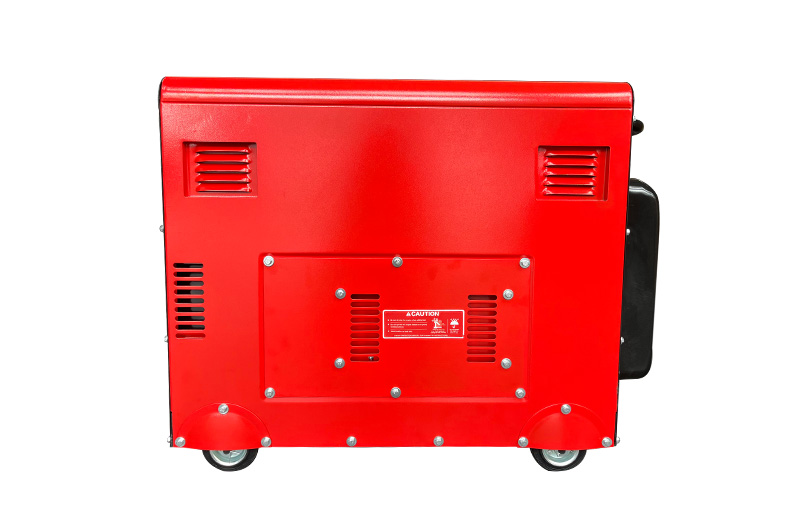

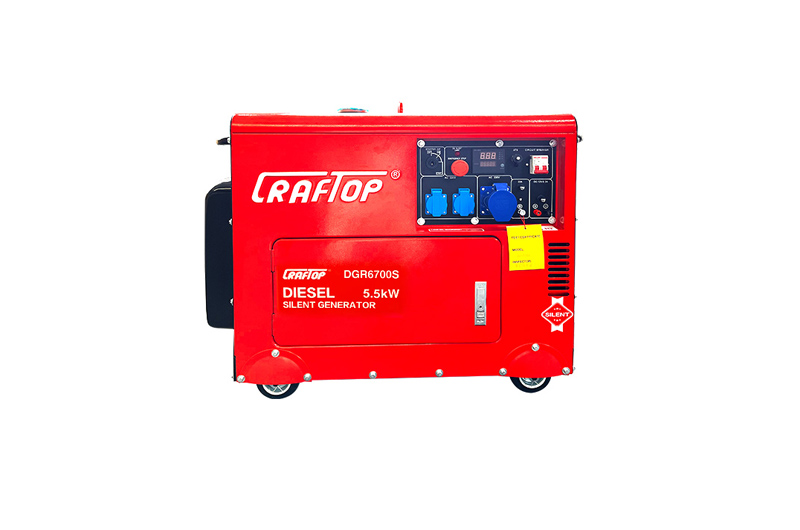

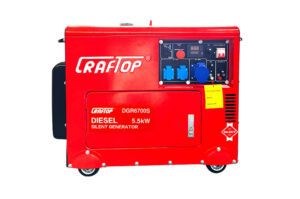

DGR6700S

Diesel Generator DGR6700S

1. Whisper-quiet operation with patented dual-stage noise reduction system.

2. EURO V certified four-stroke diesel engine for powerful performance.

3. 100% copper motor for efficient conversion and stable output.

4. Air preheating for easy cold starts.

5. Optional remote control and ATS technology.

6. Intelligent digital display control panel with multiple protections.

7. Widely applicable for emergency use in homes and shops.

PRODUCT DESCRIPTION

1.Experience whisper-quiet operation with the patented dual-stage noise reduction system, featuring advanced aerodynamic design, premium sound-absorbing materials, and scientifically engineered vibration isolation for optimal noise reduction.

2.Empowered by the EURO V certified CRAFTOP four-stroke diesel engine, equipped with top clearance oil pump and low inertia fuel injection technology, ensuring thorough combustion and delivering exceptional power.

3.Benefit from the highest quality 100% copper motor with F-class insulation, guaranteeing outstanding efficiency and stable voltage output. Intelligent voltage AVR regulation minimizes voltage distortion, providing reliable power.

4.Facilitate easy starting in low-temperature conditions with the integrated air preheating system, making the CRAFTOP diesel generator effortlessly convenient even in chilly environments.

5.Enhance convenience and reliability by choosing optional remote control technology and Automatic Transfer Switch (ATS), enabling seamless and rapid automatic switching between utility power and diesel power.

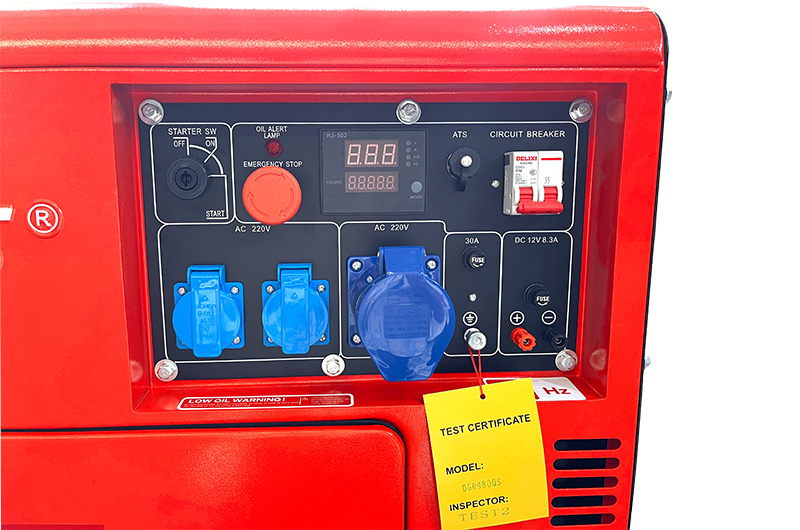

6.Enjoy peace of mind and elevate your quality of life with the intelligent digital display control panel, featuring comprehensive protection against overload, overvoltage, overcurrent, and low voltage.

7.Widely applicable for emergency use in residential and commercial settings, serving as a dependable power solution for homes, shops, and more.

SPECIFICATIONS

Product Name	5.0kW Silent Diesel Generator
Model Name	DGR6700S
Generator type (avr/inverter)	AVR-CASE
Motor type (2stroke/4stroke/diesel)	4Stroke/Diesel
Displacement (cc)	418cc
Power output (rpm)	3600rpm
Oil engine capacity (L)	1.65L
Three phase max power	─
Three phase rated power	─
Single phase max power (kW)	5.5kW
Single phase rated power (kW)	5.0kW
Voltage (V)	110V+220V
Frequency (Hz)	60Hz
Fuel consumption (g/kWh or L/h)	≤280g/kWh
Running time at 75% of load hours	12V/6A
Tank capacity (L)	14.5L
Starting system	Recoil&Electric
Guaranteed sound level ( (LWA) dB (A))*	180A
Noise emission at 7m (dB (A))*	72dB
Weight (kg(lbs))	149kg
Socket type ac (eu/uk/usa..)	USA
Number of sockets AC	3 Postion
Socket type DC	Post
Number of sockets DC	2 Post
Oil guard	√
Oil alarm	√
Fuel level gauge	√
Thermic protection	√
Hour meter	─
Volt meter	√
Frequency meter	√
Wheel kit	√
Battery charger	√
Logistic
Box size (mm)	910x530x740mm
Box weight (kg(lbs))	149kg
Units container 20/40/40HQ	72/190pcs(20/40GP)

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

DGR9800S

Diesel Generator DGR9800S

GGR6500

GGR6500 Gasoline Generator for Professional Power Generation

GGR3500FD

GGR3500FD Gasoline Generator for Power Backup

GGR3500A

GGR3500A Gasoline Light Generator for Semi-Professional Projects

GGR3000

GGR3000 Gasoline Generator for Electricity Generation

GGR2500FD

GGR2500FD Gasoline Light Generator for Domestic Use

GGR2500A

GGR2500A Gasoline Light Generator for Domestic Use

GGR1500

GGR1500 Gasoline Generator for Electricity Generation

FAQ

Q How often should I maintain a gasoline-powered light generator?

A Regular maintenance is essential to ensure optimum performance. This includes changing the oil, cleaning the air filter, checking the spark plugs, draining the fuel when not used for a long time, and performing periodic inspections of crucial parts.

Q How much fuel does a gasoline light generator consume?

A Fuel consumption varies according to the generator’s power and the load it is subjected to. Our generators are most efficient when they run close to their maximum capacity.

Q Are gasoline-powered light generators noisy?

A No, at Craftop, we specialize in controlling noise emissions from our gasoline-powered light generators.

Q Can they be used indoors?

A It is recommended to use our gasoline light generators indoors with adequate ventilation. Although our gasoline generators have the best quality and safety, they emit tiny amounts of exhaust gases that can pollute the air.

Q How long can a gasoline-powered generator run continuously?

A A gasoline generator’s continuous run time depends on the fuel tank’s size and the load it is powering. In general, generators can run for several hours at full load before requiring a refueling.
