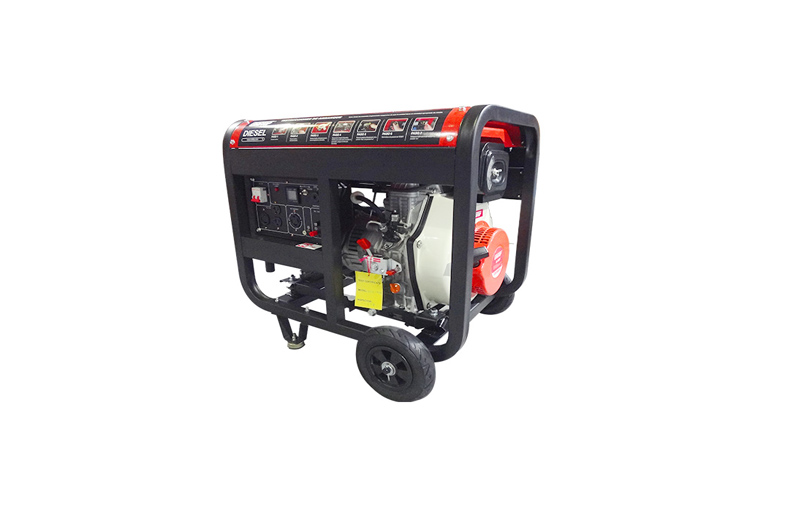

Diesel Generator DGR6500E

1. EURO V certified diesel engine for enhanced combustion and powerful performance.
2. 100% copper motor with F-class insulation for high efficiency and stable voltage output.
3. Intelligent voltage AVR regulation for minimal waveform distortion.
4. AC and DC multifunctional outputs.
5. Equipped with an intelligent digital display control panel.
6. Optional remote control technology enables quick automatic switching between grid and diesel power.
7. Sturdy construction with reinforced thick square tube frame.
8. Lightweight design and four-wheel mobility for greater convenience.
9. Widely used for emergency power generation and welding operations.

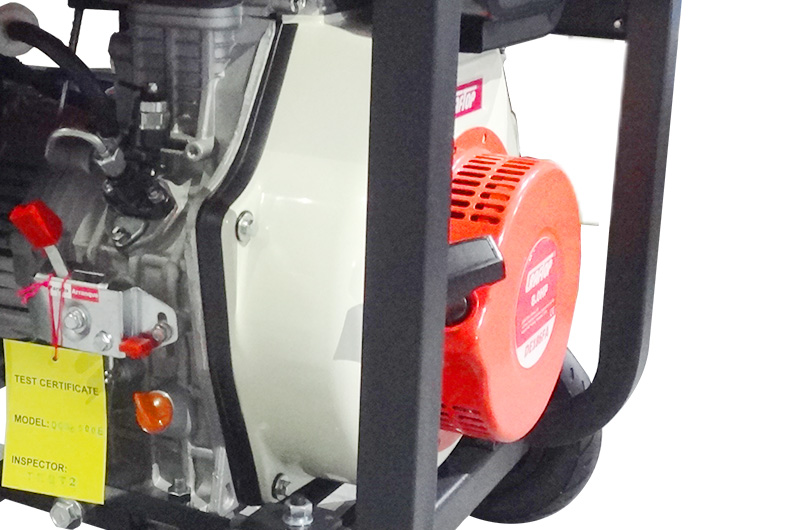

1. Equipped with EURO V certified CRAFTOP four-stroke diesel engine, which adopts top clearance oil pump and low inertia fuel injection technology to achieve more complete combustion and more powerful power;

2. Using 100% all-copper motor, Class F insulation, high conversion efficiency; intelligent voltage AVR adjustment, stable voltage output and small voltage waveform distortion;

3. Optional remote control technology and ATS automatic switching technology can realize rapid automatic switching between mains electricity and diesel electricity;

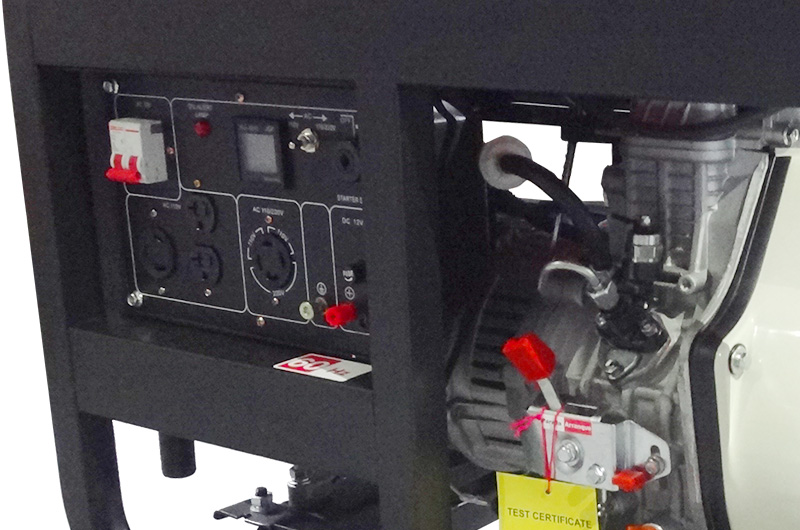

4. Equipped with an intelligent digital display control panel, which has overload, overvoltage, overcurrent and low-voltage protection, and a three-in-one intelligent display of voltage, frequency and timing, making it easy to maintain and maintain;

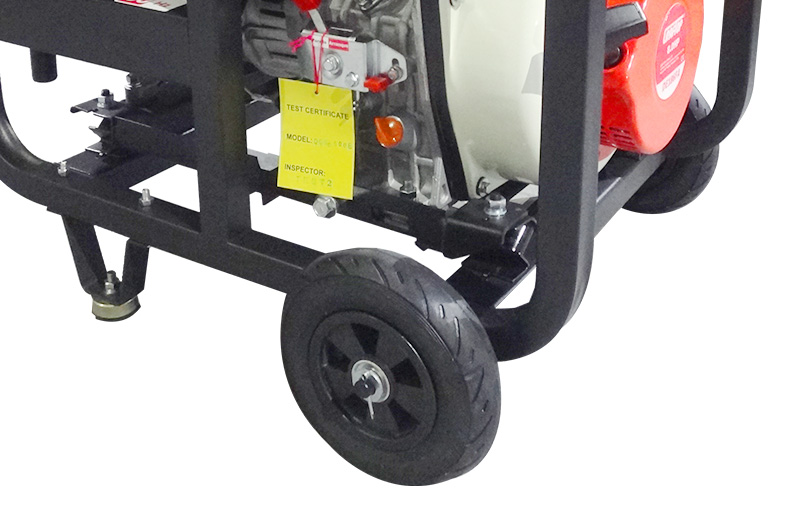

5. Thickened and thickened square tube frame, the structure is more reliable and firm, the lightweight design and four-wheel movement are more convenient, and the use is more convenient;

6. AC and DC multi-function output, fully meet user needs, widely used in emergency power generation and welding operations


Product Name 5.0kW Silent Diesel Generator
Model Name DGR6500E
Picture 图片1
Generator type (avr/inverter) AVR-CASE
Motor type (2stroke/4stroke/diesel) 4Stroke/Diesel
Displacement (cc) 418cc
Power output (rpm) 3600rpm
Oil engine capacity (L) 1.65L
Three phase max power
Three phase rated power
Single phase max power (kW) 5.5kW
Single phase rated power (kW) 5.0kW
Voltage (V) 110V+220V
Frequency (Hz) 60Hz
Fuel consumption (g/kWh or L/h) ≤280g/kWh
Running time at 75% of load hours
Tank capacity (L) 12.5L
Starting system Recoil&Electric
Guaranteed sound level ( (LWA) dB (A))*
Noise emission at 7m (dB (A))* 85dB
Weight (kg(lbs)) 113kg
Socket type ac (eu/uk/usa..) USA
Number of sockets AC 2 Postion
Socket type DC Post
Number of sockets DC 2 Post
Oil guard
Oil alarm
Fuel level gauge
Thermic protection
Hour meter
Volt meter
Frequency meter
Wheel kit
Battery charger
Box size (mm) 740x505x630mm
Box weight (kg(lbs)) 113kg
Units container 20/40/40HQ 108/288pcs(20/40GP)

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.



Q       How often should I maintain a gasoline-powered light generator?
A       Regular maintenance is essential to ensure optimum performance. This includes changing the oil, cleaning the air filter, checking the spark plugs, draining the fuel when not used for a long time, and performing periodic inspections of crucial parts.
Q       How much fuel does a gasoline light generator consume?
A       Fuel consumption varies according to the generator’s power and the load it is subjected to. Our generators are most efficient when they run close to their maximum capacity.
Q       Are gasoline-powered light generators noisy?
A       No, at Craftop, we specialize in controlling noise emissions from our gasoline-powered light generators.
Q       Can they be used indoors?
A       It is recommended to use our gasoline light generators indoors with adequate ventilation. Although our gasoline generators have the best quality and safety, they emit tiny amounts of exhaust gases that can pollute the air.
Q       How long can a gasoline-powered generator run continuously?
A       A gasoline generator’s continuous run time depends on the fuel tank’s size and the load it is powering. In general, generators can run for several hours at full load before requiring a refueling.
