MS180 Chainsaw Parts

CRAFTOP offers top-quality spare parts for MS180 series gasoline chainsaws, including:

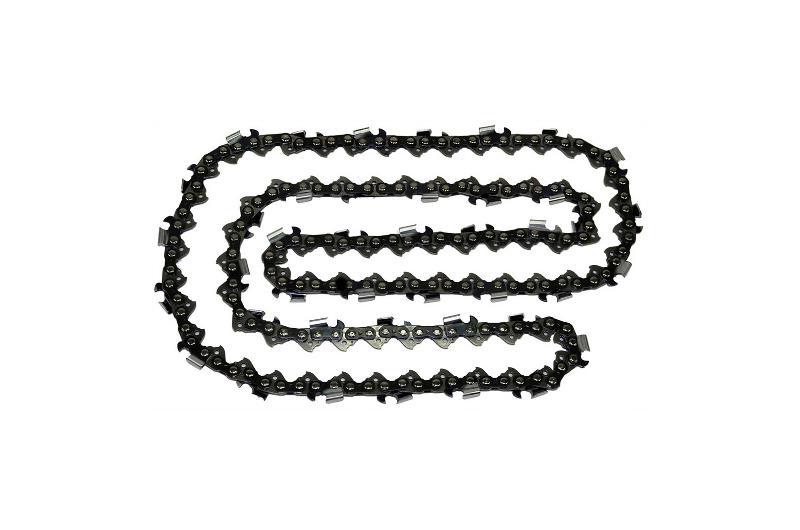

Exceptionally sharp and durable cutting chainsaw: Made from advanced German materials with over 20 years of production experience, compatible with various professional chainsaws.
High-quality chainsaw bar: Meets standards like original factory bar, with exceptional durability and popularity in East African countries.
Cylinder: Advanced production technology, strict quality control, with ceramic-plating and chrome-plating options for diverse customer requirements.
Piston: Made with top-quality materials, featuring piston rings from famous brands for stability and market competitiveness.
Crankcase: Carefully selected blanks, precise CNC finishing, and guaranteed quality.
Crankshaft: 20CrMoTi alloy steel, advanced heat treatment, surpasses market standards in strength and toughness.
Carburetor: Produced using technology and procedures shared with Walbro, ensuring quality and competitive pricing.

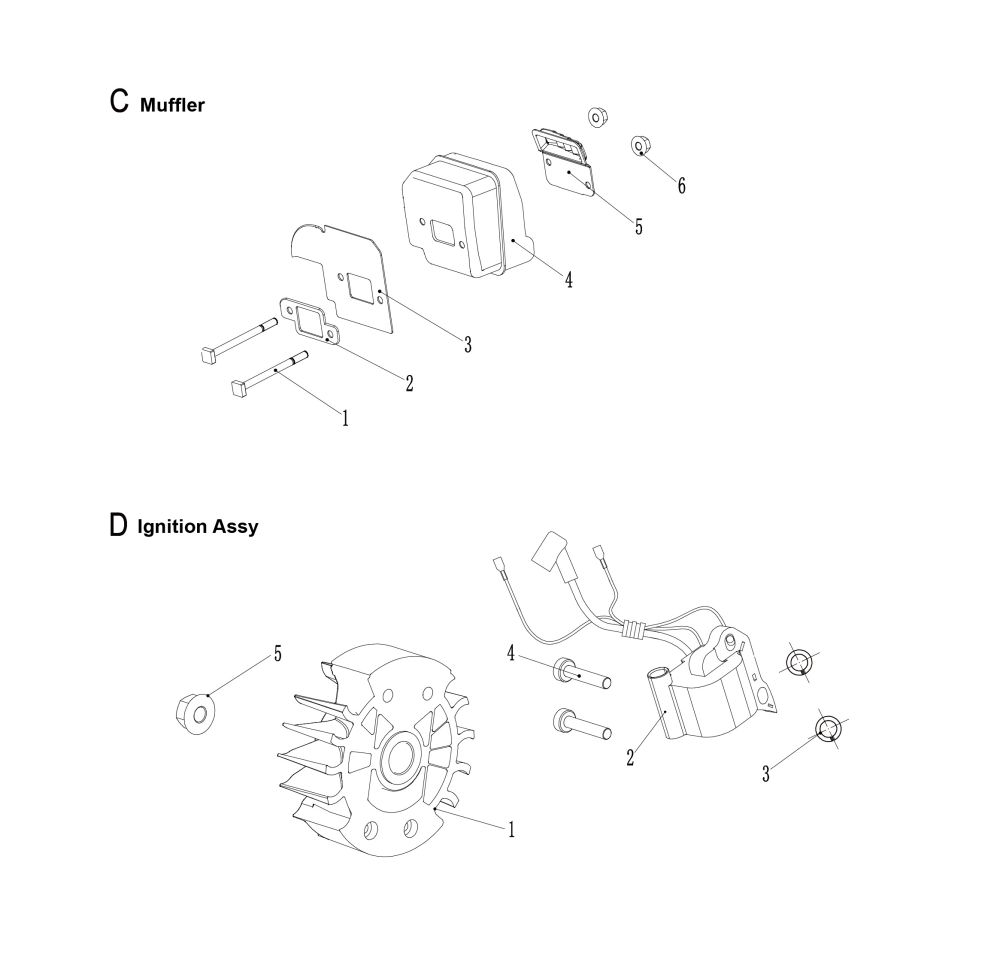

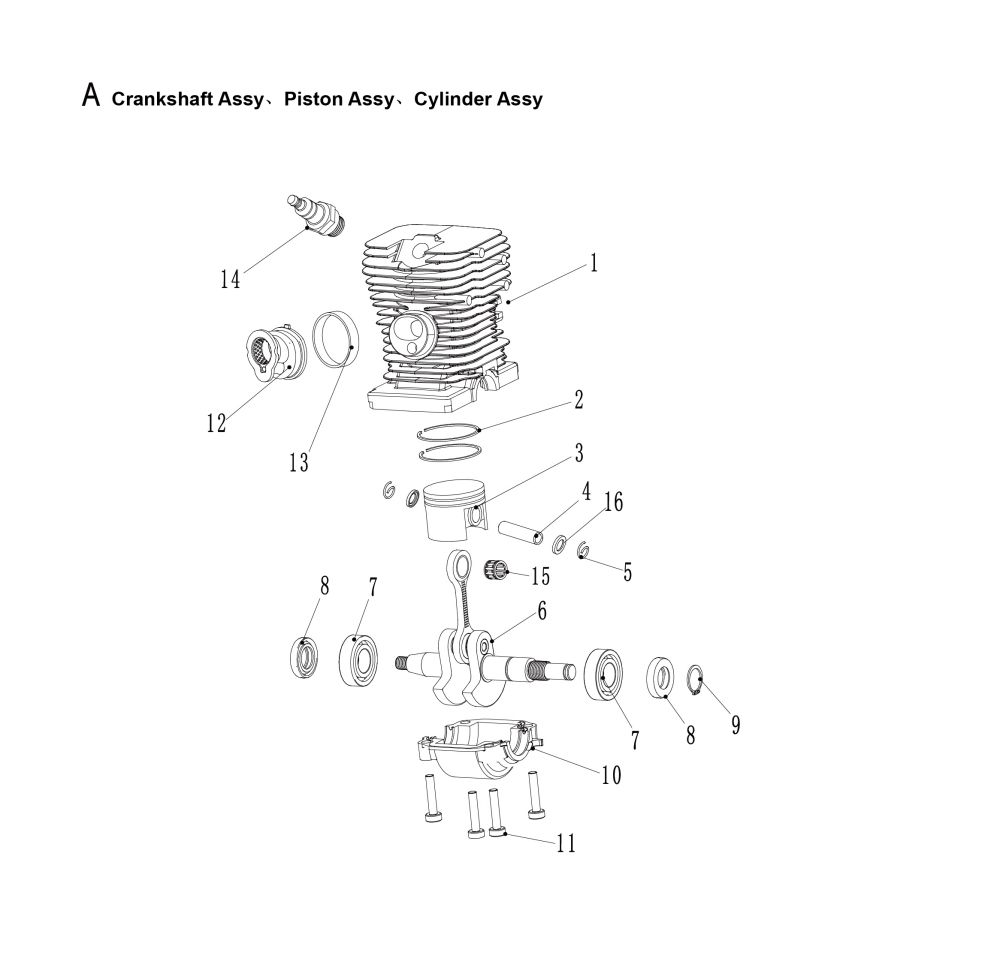

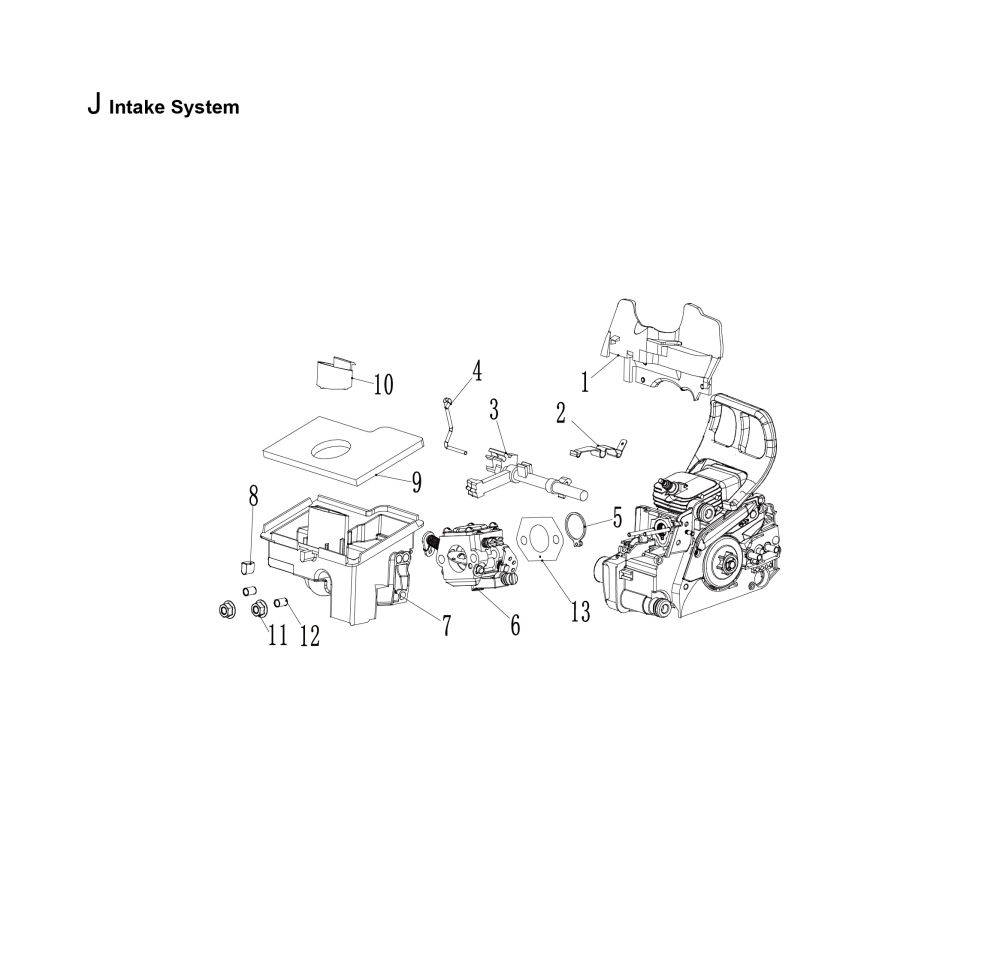

Exploded View Of The Whole Machine

Important Spare Parts

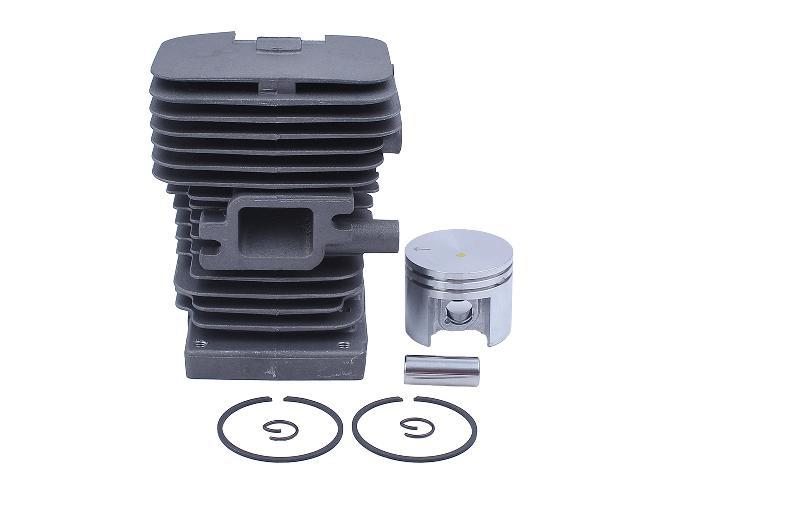

A1-A5 Cylinder Assy

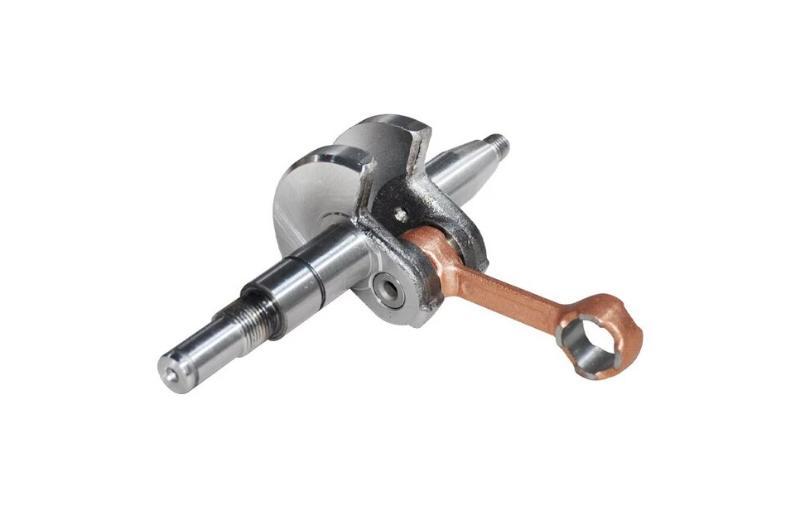

A6 Crankshaft

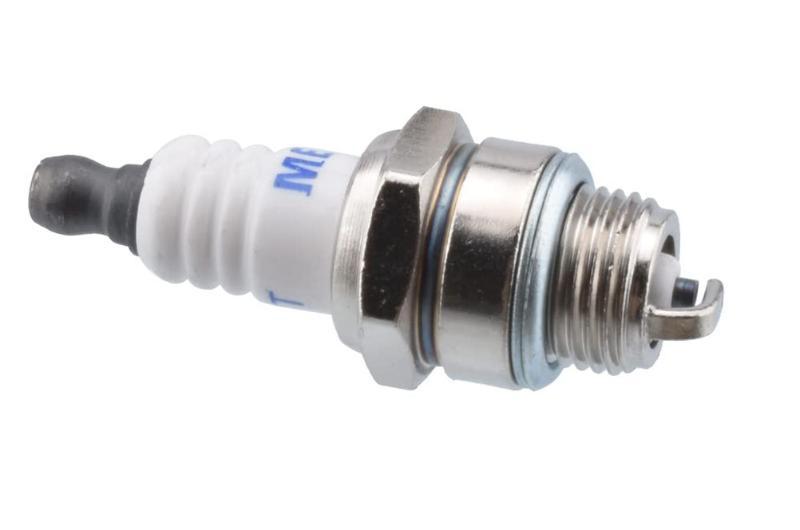

A14 Spark Plug

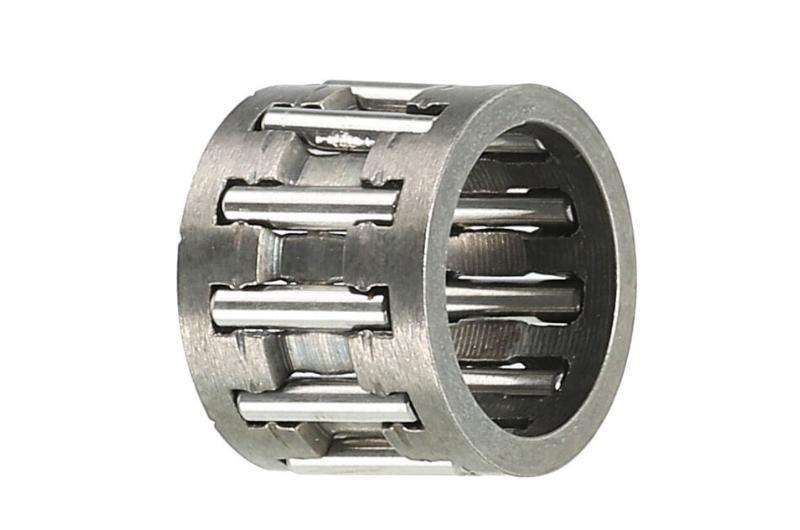

A15 Needle Bearing

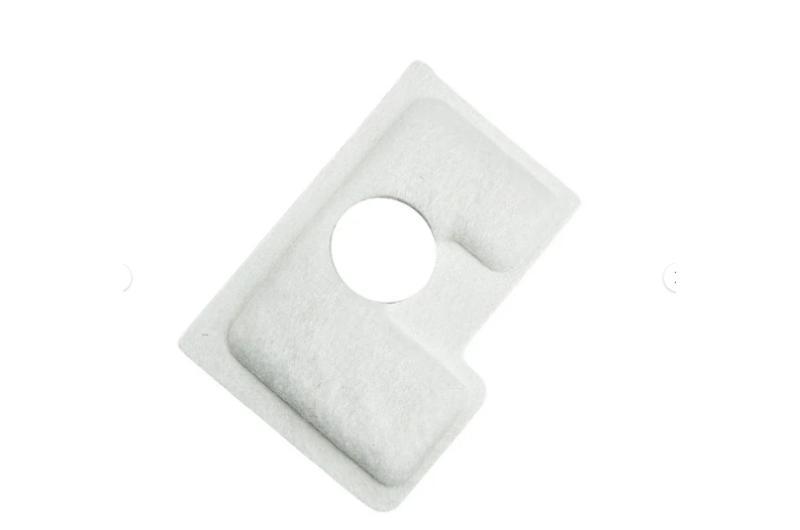

Air Filter

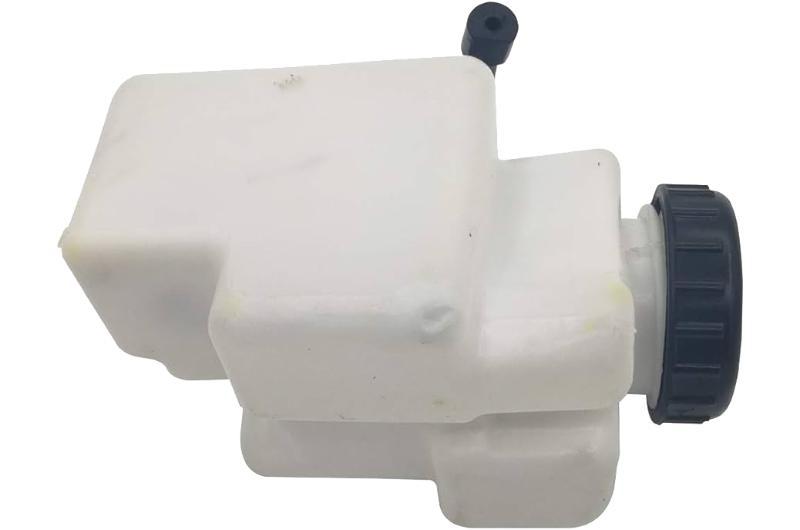

B6 Fuel Tank

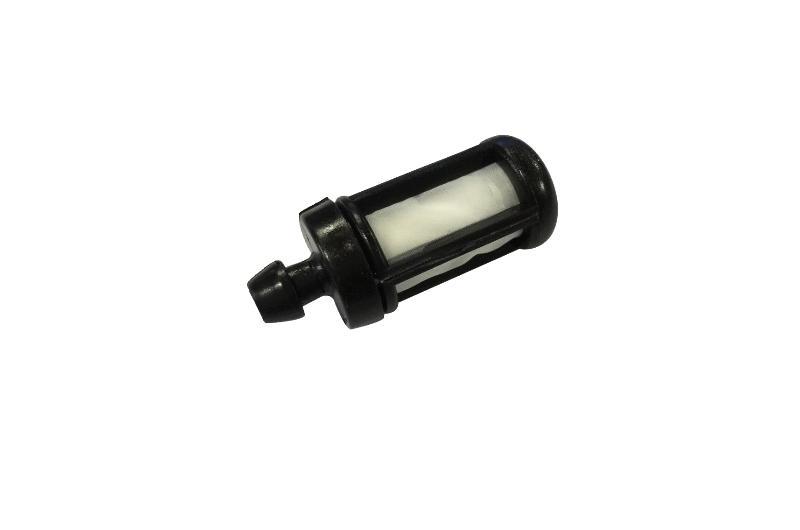

B8 Fuel Filter Assy

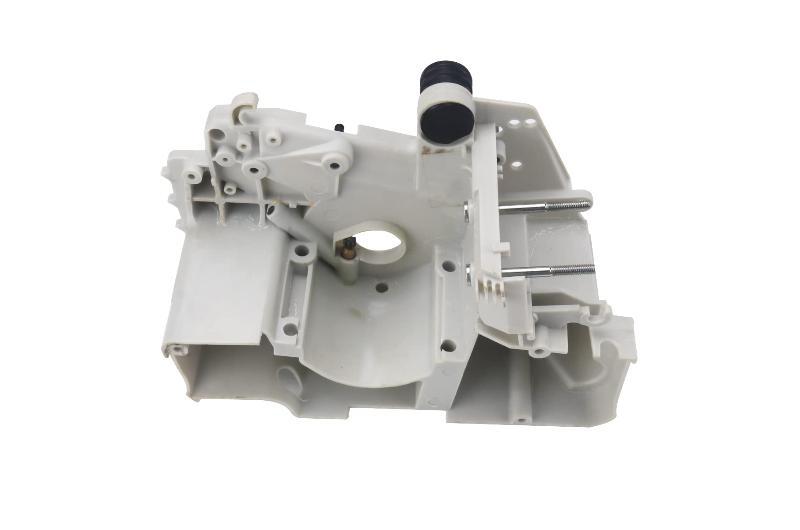

B10 Engine Housing

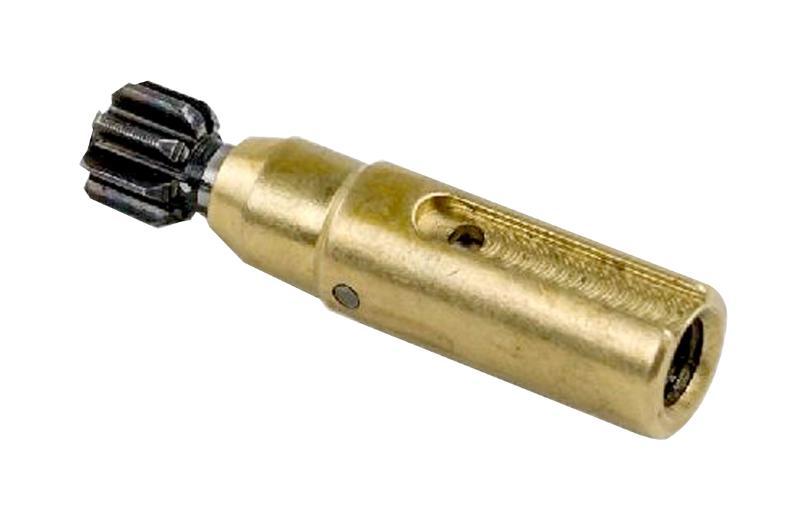

B19 Oil Pump

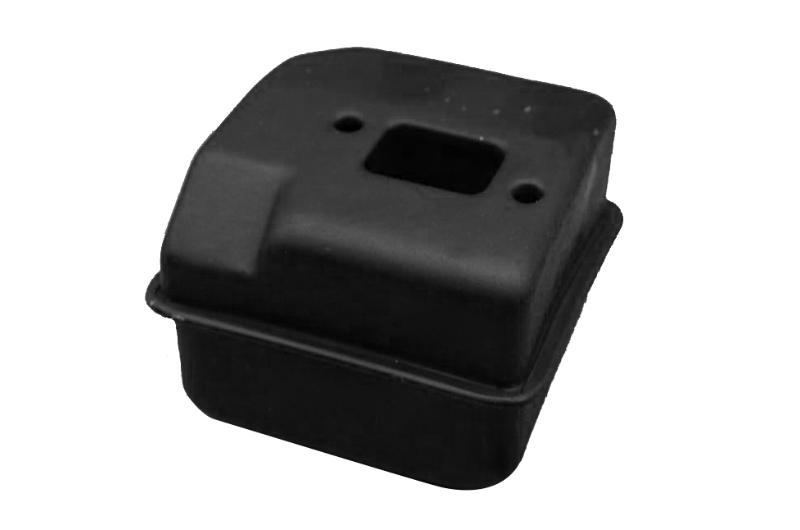

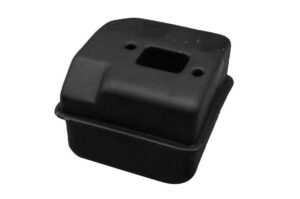

C4 Muffler

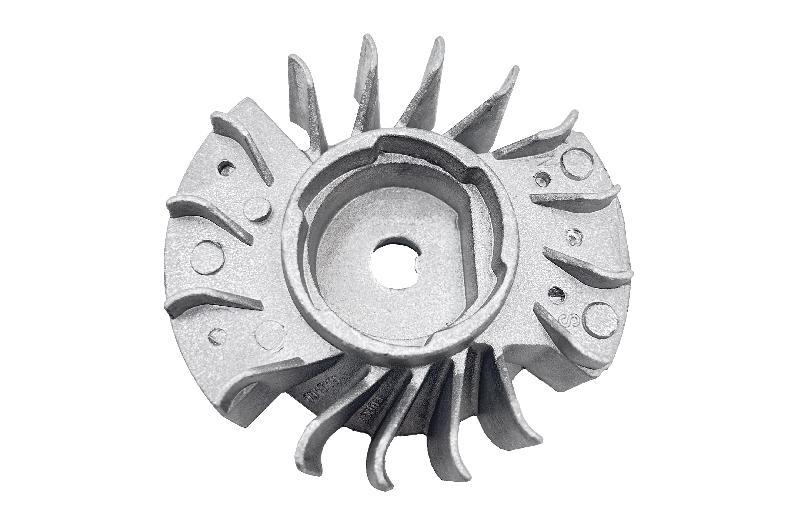

D1 Flywheel

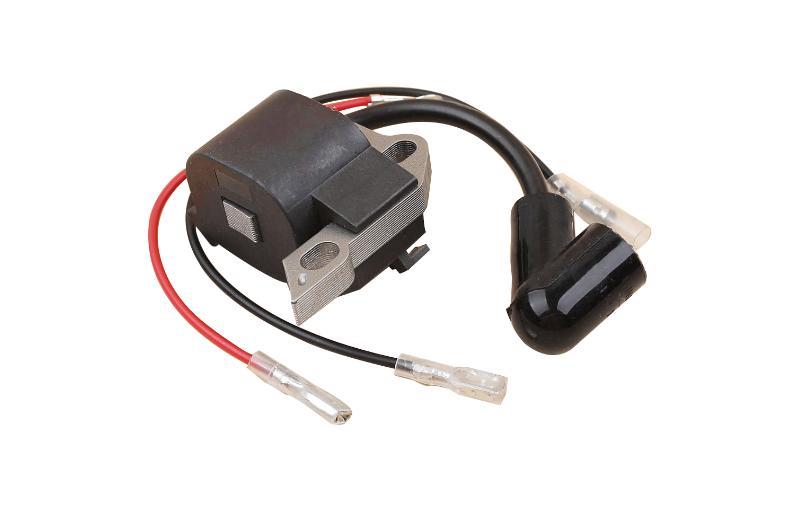

D2 Ignition Module

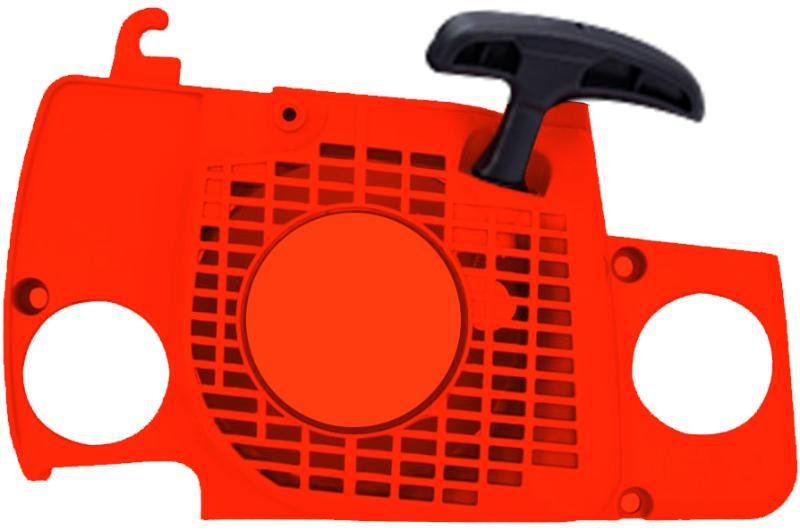

E Starter Assy

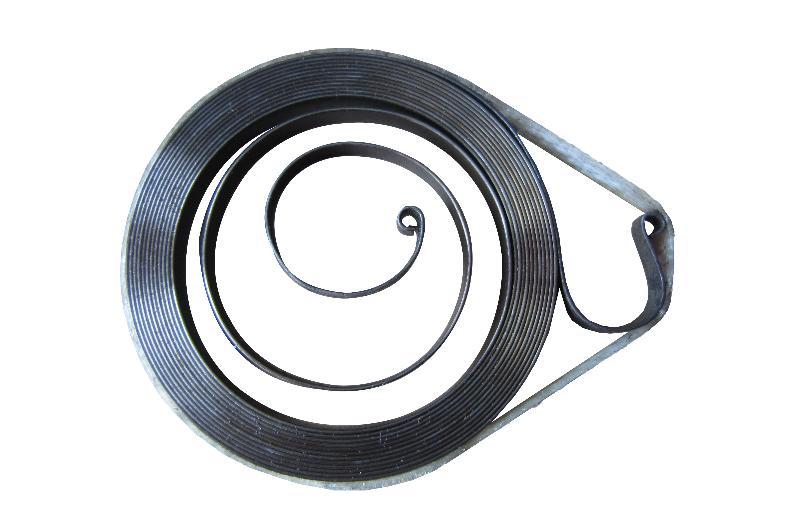

E6 Rewind Spring

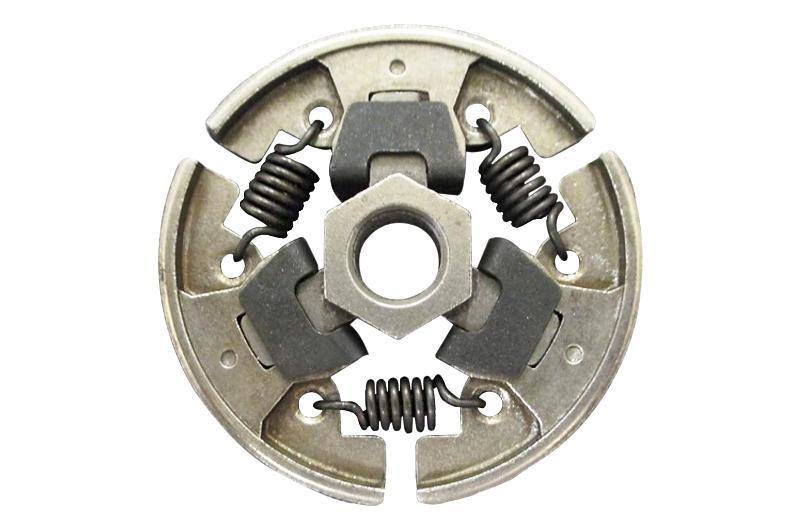

G4 Clutch

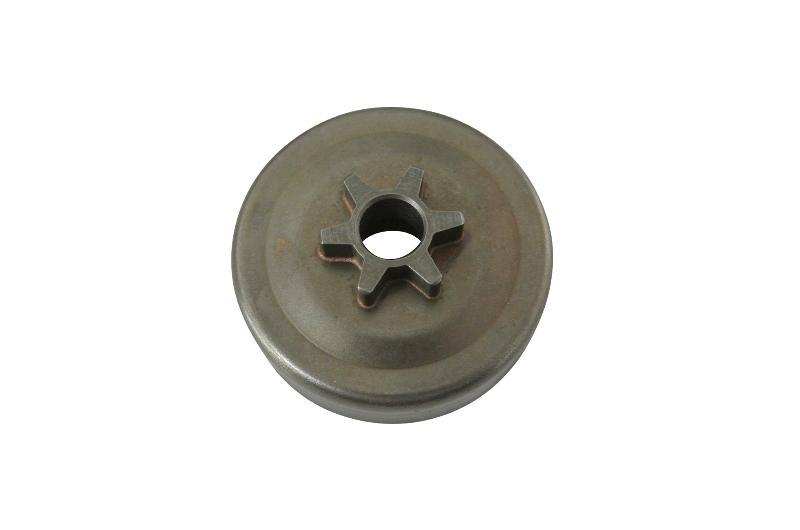

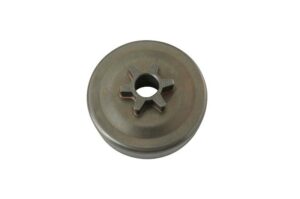

G6 Chain Sprocket

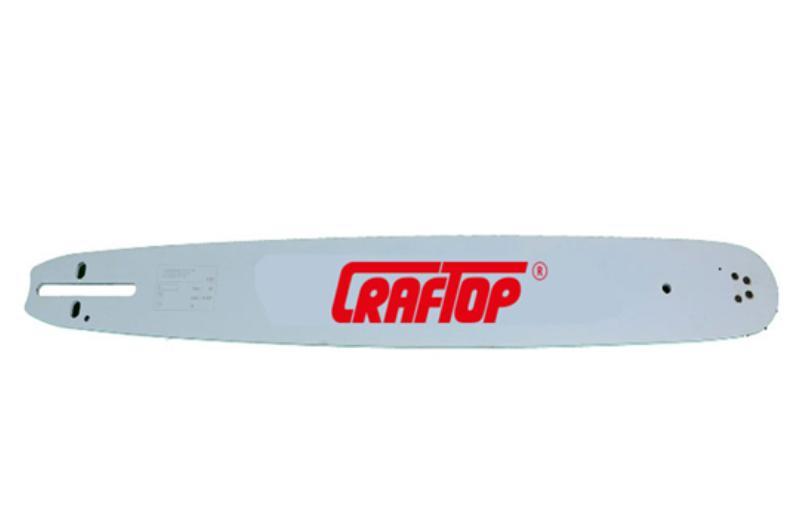

Guide Bar

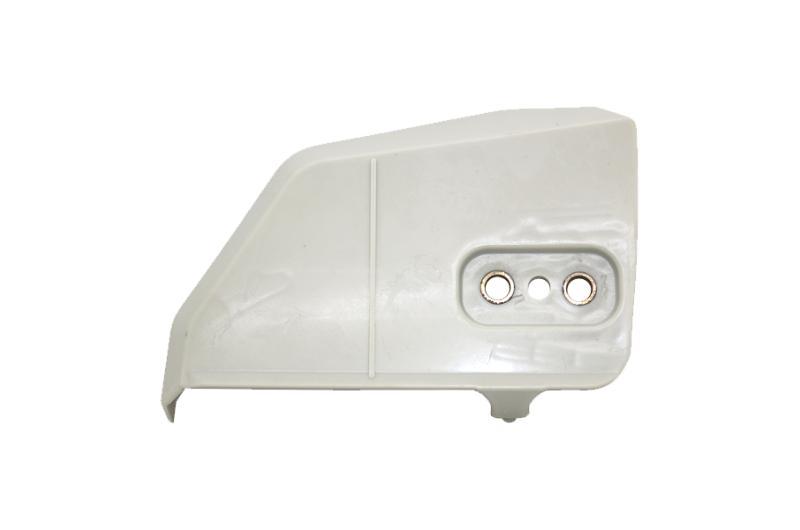

I14 Chain Sprocket Cover

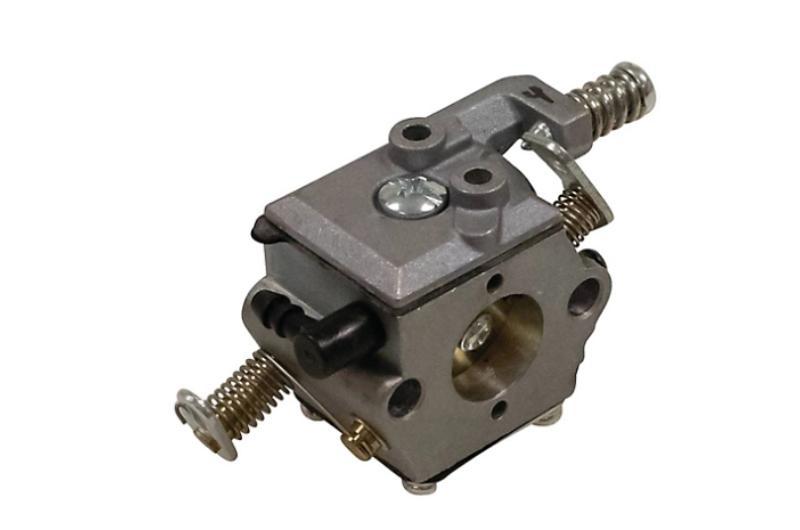

J6 Carburetor

Other Spare Parts

CODE Part Name CODE Part Name
A01 Cylinder E8 Pawl
A02 Piston Ring E9 Washer
A03 Piston E10 Spring
A04 Piston Pin E11 Screw
A05 Snap Ring E12 Screw
A06 Crankshaft F01 Handle Frame
A07 Bearing F02 Handle Molding
A08 Oil Sealing F03 Throttle Interlock
A09 Circlip F04 Torsion Spring
A10 Engine Pan F05 Throttle trigger
A11 Pan Head Screw F06 Throttle Rod
A12 Manifold F07 Plug
A13 Ring F08 Plug
A14 Spark Plug F09 Buffer
A15 Needle Bearing F10 Screw

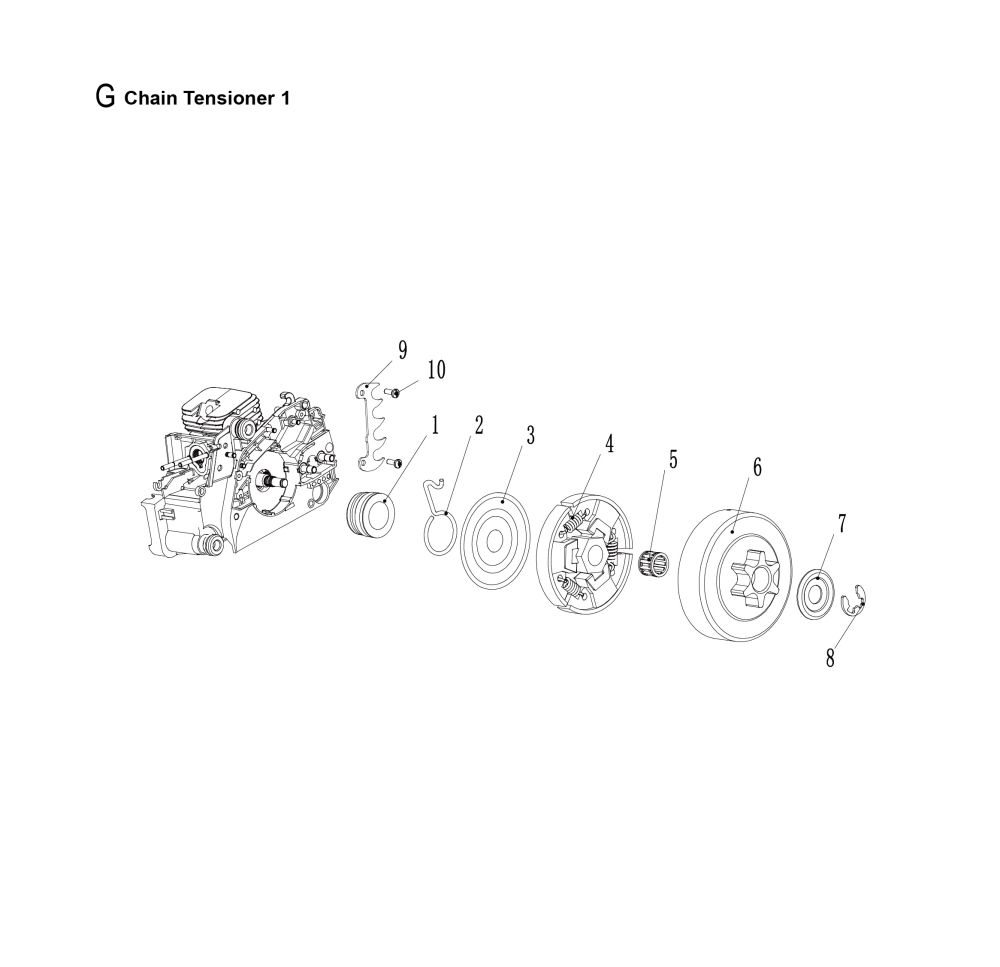

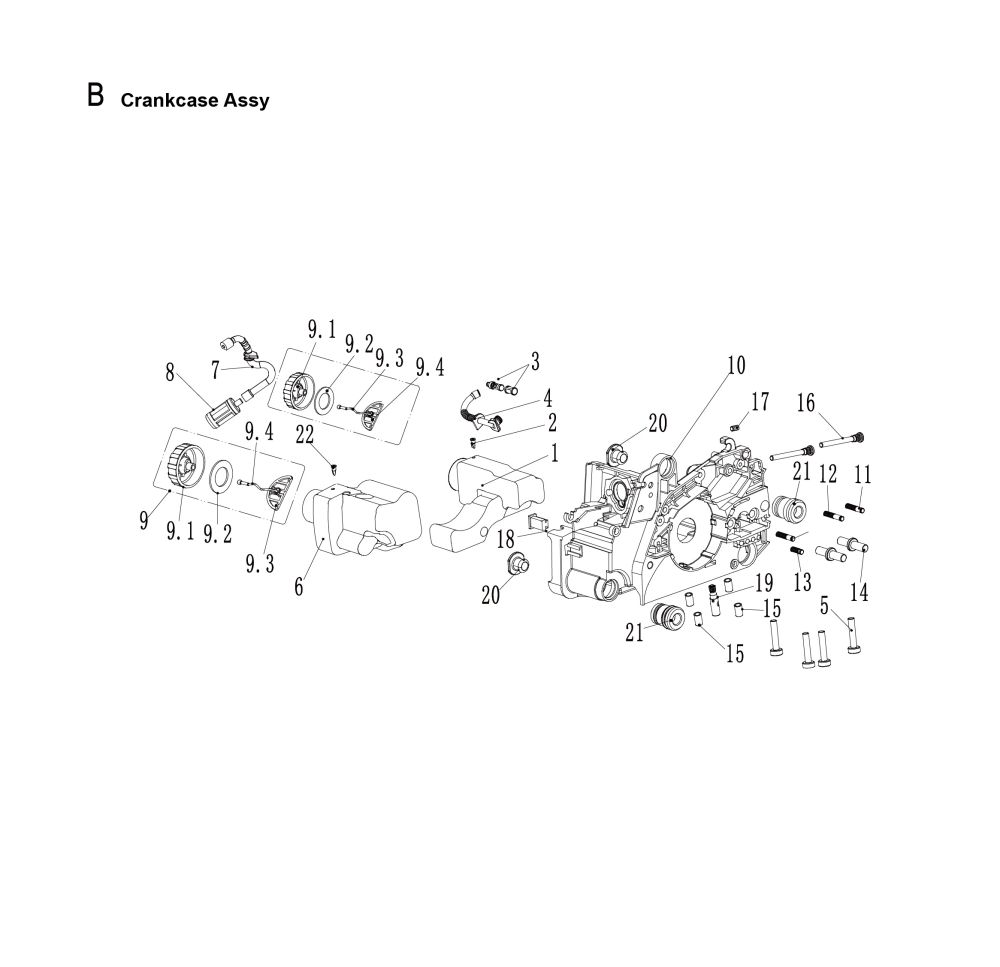

B01 Oil Tank G1 Worm
B02 Valve G2 Spring
B03 Oil Filter Assy G3 Cover Washer
B04 Hose G4 Clutch
B05 Pan Head Screw G5 Bearing
B06 Fuel Tank G6 Chain Sprocket
B07 Hose G7 Washer
B08 Fuel Filter Assy G8 E-Clip
B09.1 Filler Cap G9 Bumper Spikes
B09.2 Sealing Ring G10 Screw

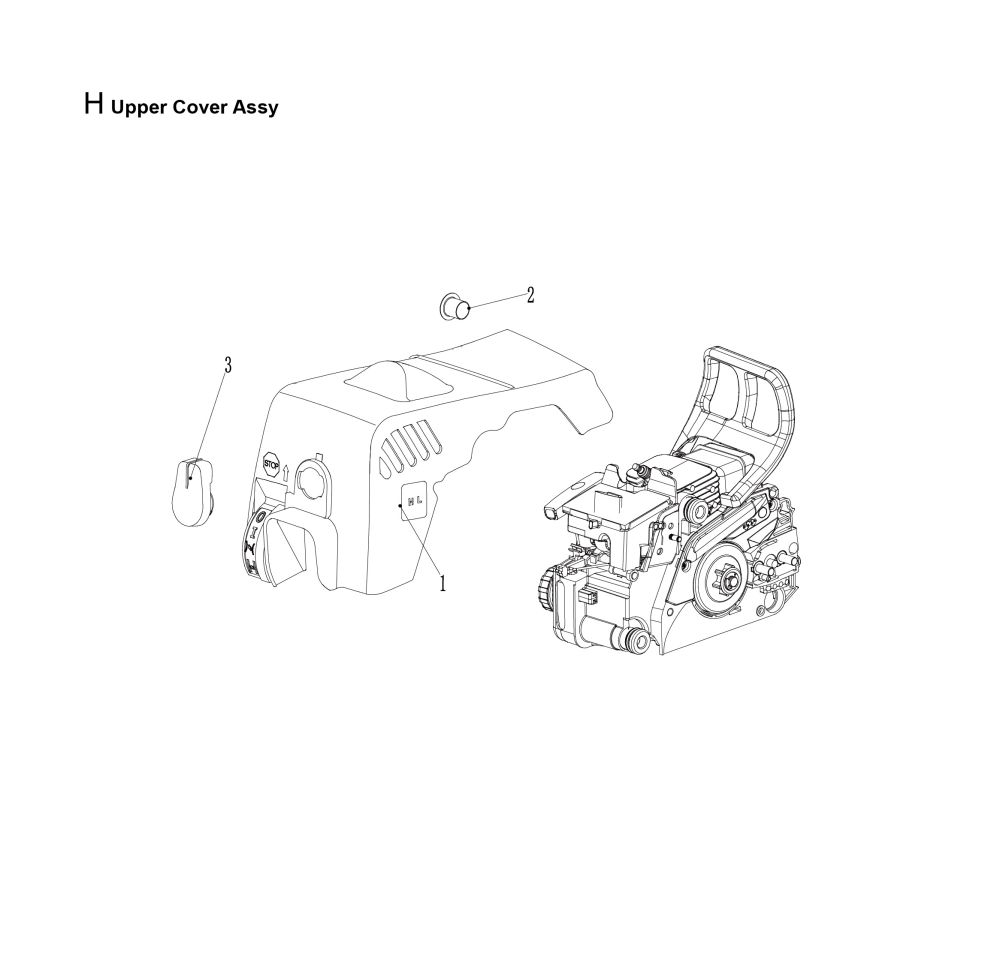

B09.3 Hook H1 Shroud
B09.4 Rope H2 Sleeve
B10 Engine Housing H3 Twist Lock

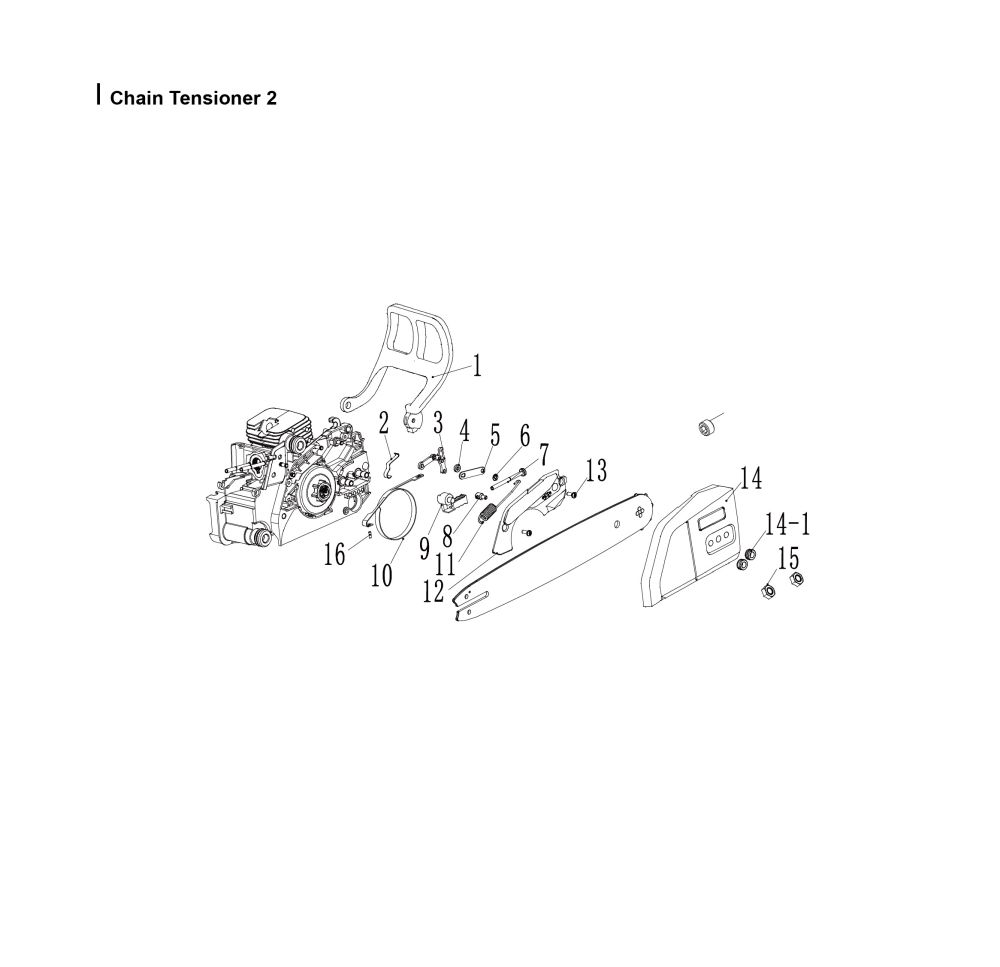

B11 Pin I1 Hand Guard
B12 Pin I2 Flat Spring
B13 Pin I3 Lever
B14 Colar Screw I4 Washer
B15 Sleeve I5 Strap
B16 Pan Head Screw I6 E-Clip
B17 Screw I7 Adjusting Screw
B18 Stop Buffer I8 Tension Nut
B19 Oil Pump I9 Cover
B20 Plug 1 I10 Brake Band
B21 Buffer I11 Tension Spring
C01 Screw I12 Cover
C02 Gasket I13 Screw
C03 Cooling Plate I14 Chain Sproket Cover
C04 Muffler I15 Nut
C05 Cover I16 Pin
C06 Nut J1 Baffle Plate
D1 Flywheel J2 Contact Spring
D2 Ignition Module J3 Switch Shaft
D3 Insulator J4 Choke Rod
D4 Screw J5 Sleeve
D5 Nut J6 Carburetor

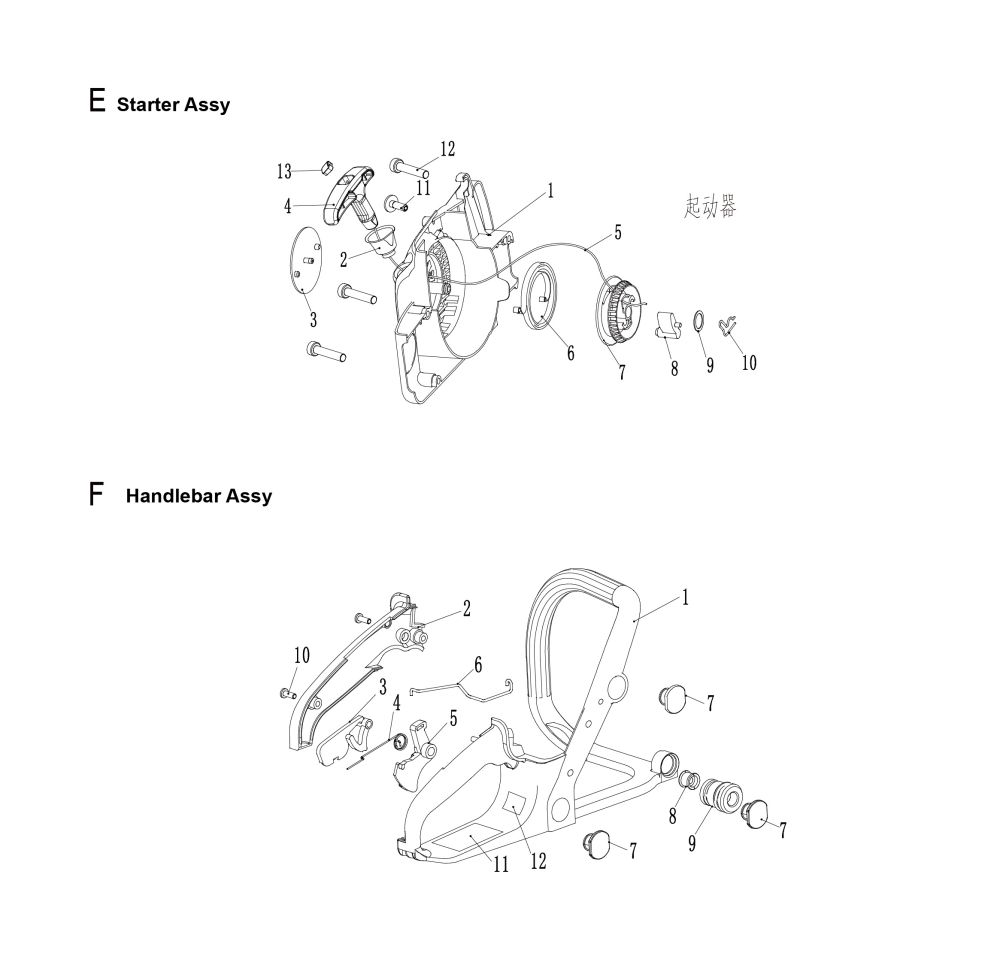

E1 Fan Housing J7 Filter Housing
E2 Bushing J8 Sleeve
E3 Model Plate J9 Filter Plate
E4 Starter Grip J10 Insert
E5 Starter Rope J11 Nut
E6 Rewing Spring J12 Air Filter Seat
E7 Rope Pulley J13 Gasket
