070 Serie Chainsaw Parts

Sourced from leading suppliers, CRAFTOP 070 serie chainsaw spare parts offers comparable quality to top chainsaw brands.

Inherrited from CrNiMo Germany technology, the saw chain blades of CRAFTOP 070 serie are very sharp and wear-resistant. We have different typs of saw blades, either round or square tooth, each chainsaw tooth is seamlessly fixed in its gauch, preventing skip and breakage.

The CRAFTOP guide bar of 070 series chainsaws is made of special alloy-steel, well finished by complex welding process and thus of super hardness and tolerance to against head-breakage.

Made of special CnMoTi alloy steel, the CRAFTOP crankshaft is well treated by our new heat treatment processes, stronger and tougher than peers in the markets.

As the key part of the engine, the CRAFTOP cylinder is of high strength, small deformation, outstanding heat dissipation, excellent corrosion resistance and wear resistance, ensuring the entire engine's performance.

Exploded View Of The Whole Machine

Important Spare Parts

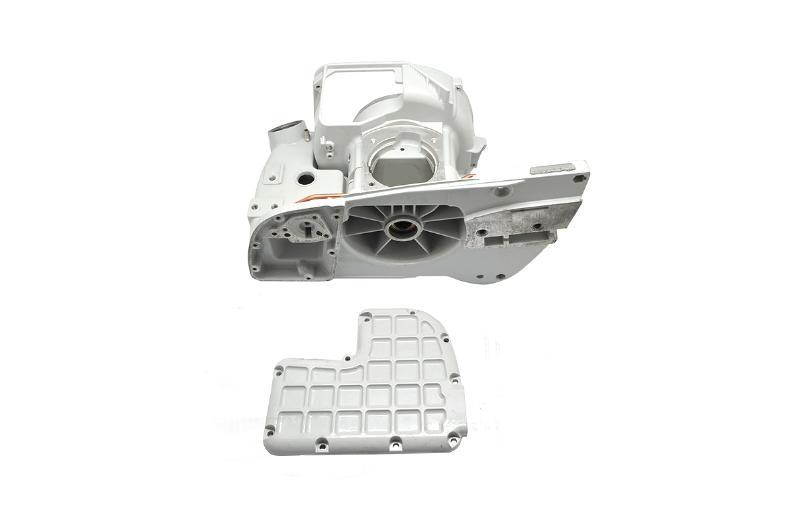

A1 Crankcase Assy

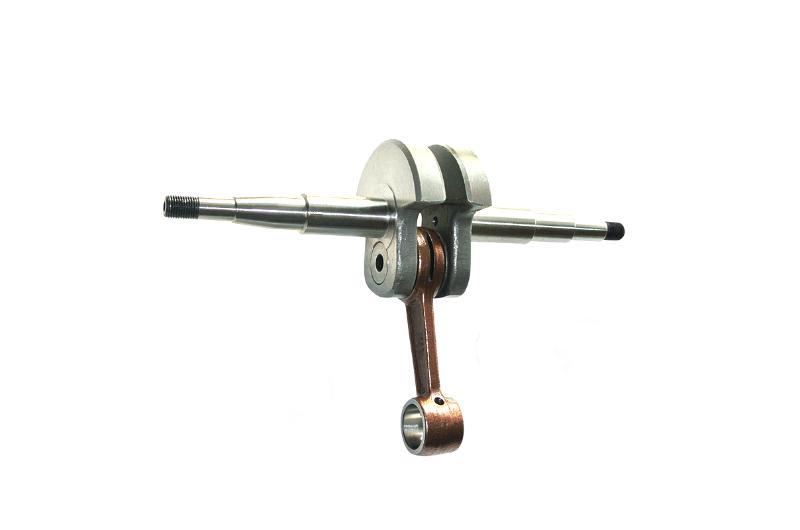

A19 Crankshaft-old

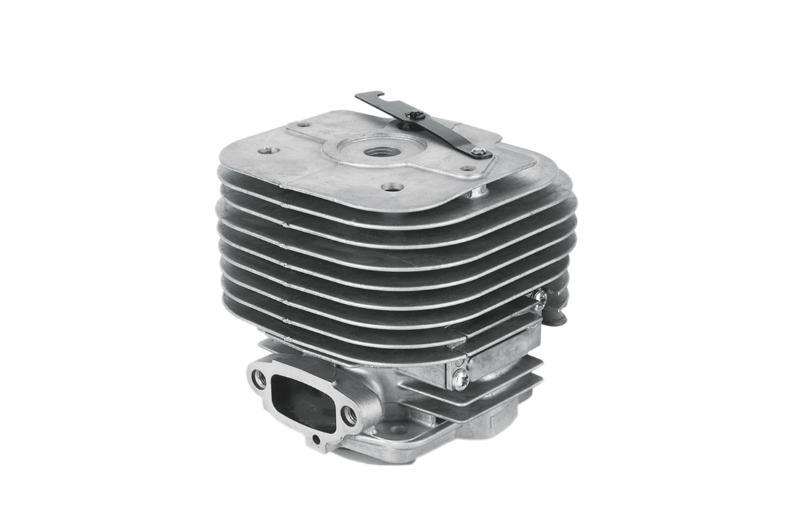

B2 Cylinder Assy

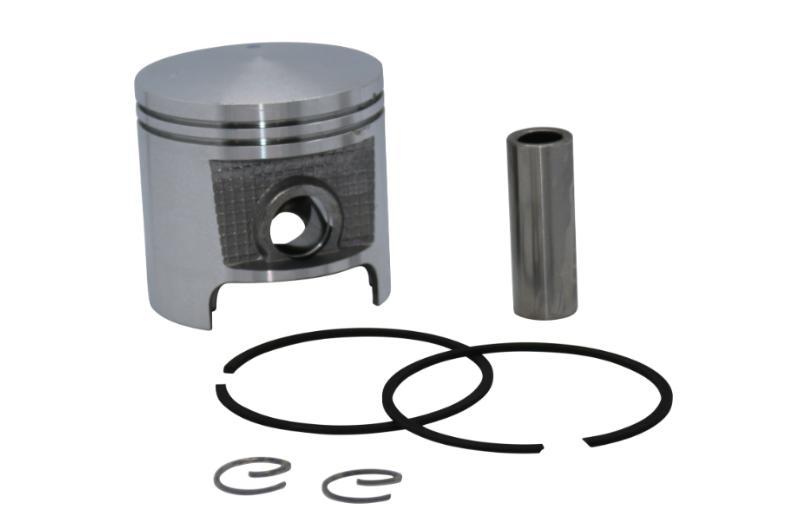

B5-8 Piston Assy

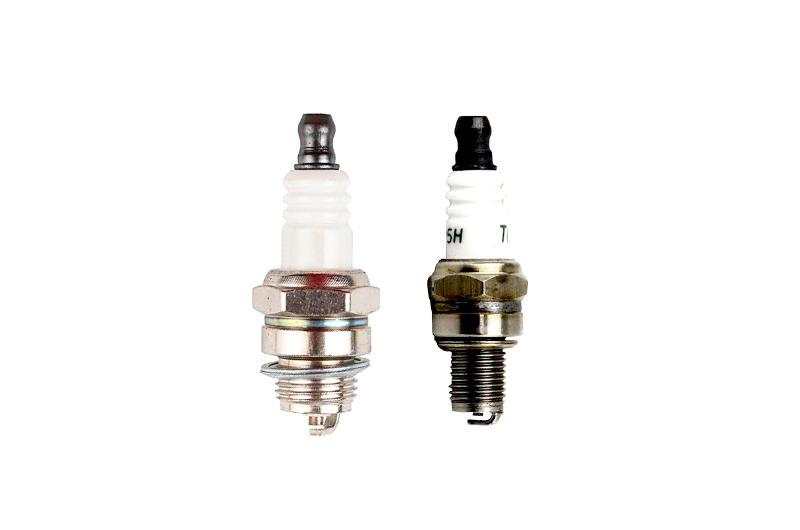

B16 Spark Plug

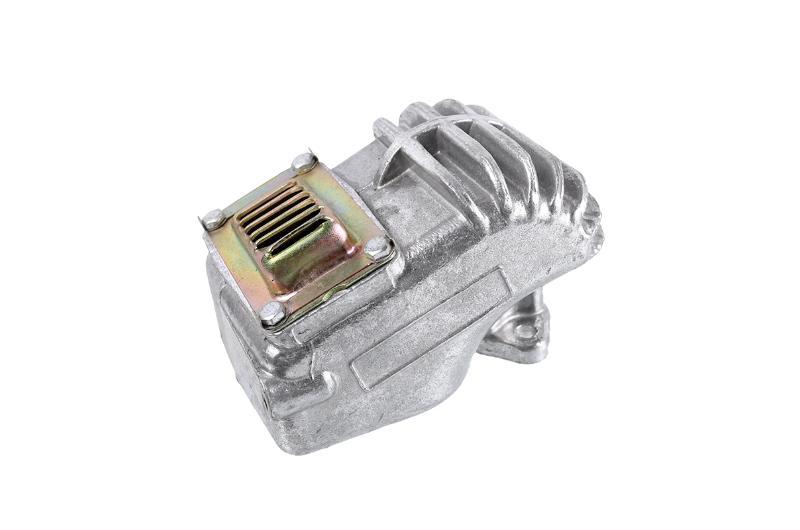

B20 Muffler

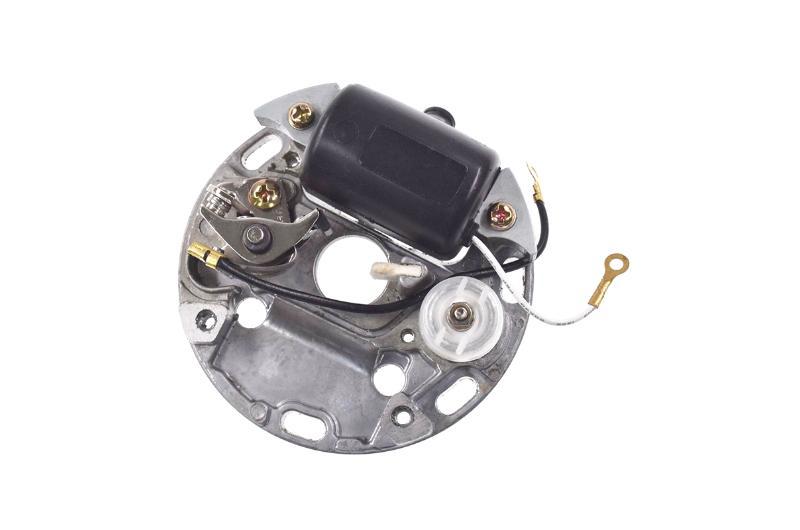

D3-20 Ignition Coil

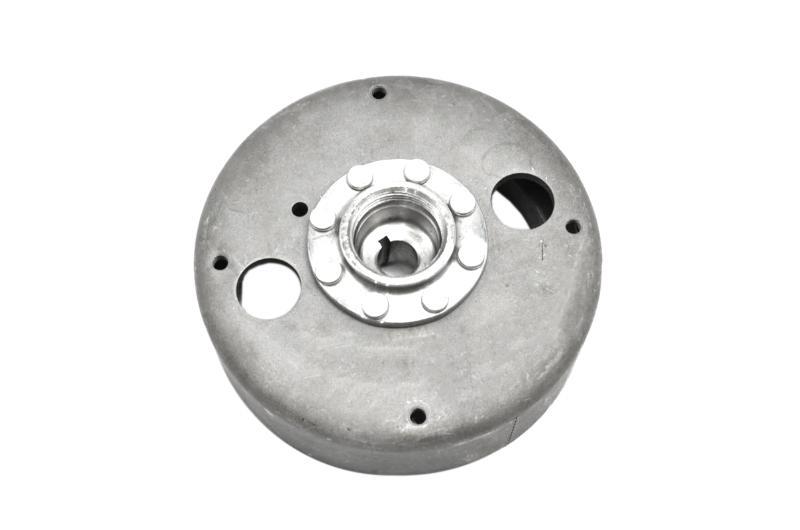

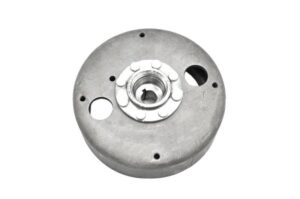

D21 Magnetor Flywheel

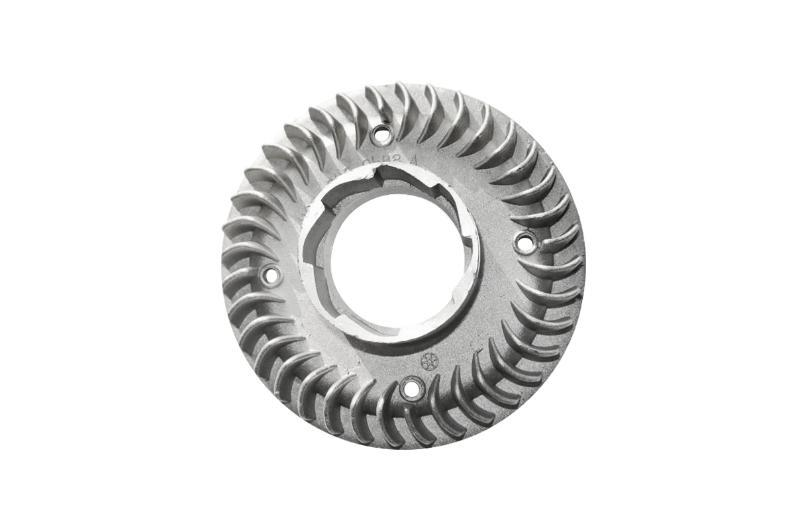

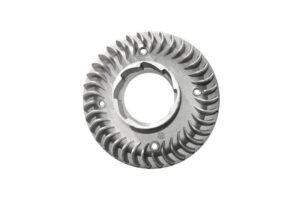

D23 Fanwheel

D28 Rotor

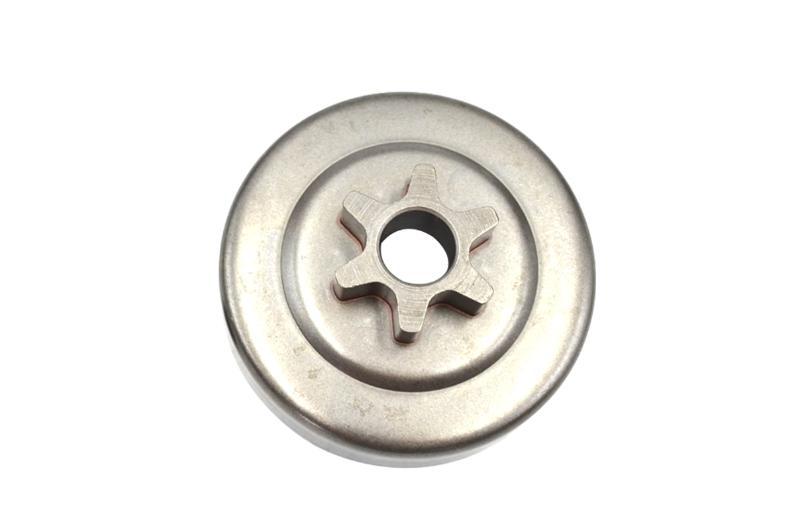

E13+14 Chain Sprocket

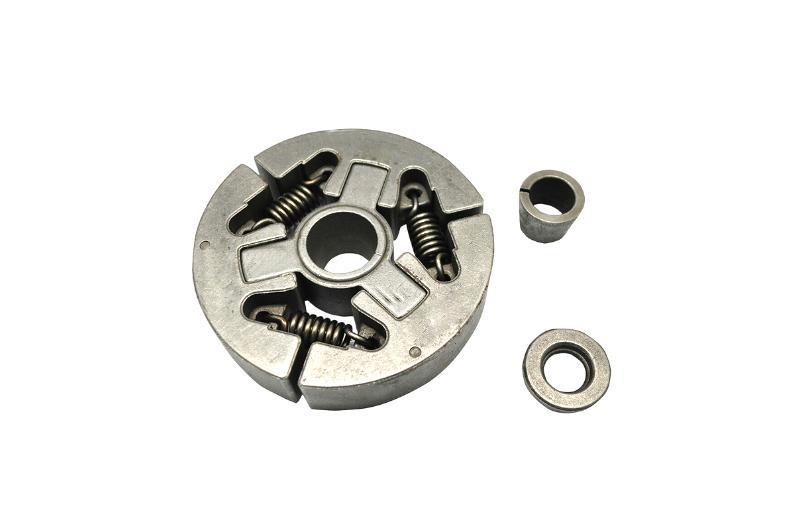

E17-19 Clutch Assy

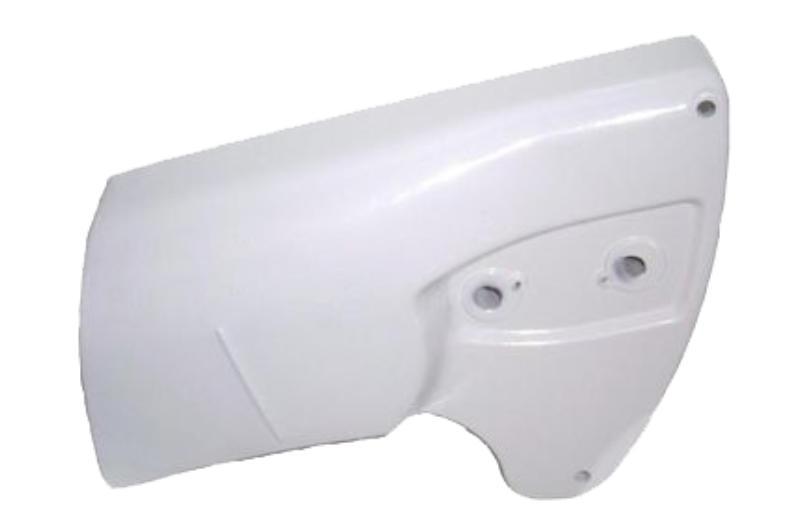

E24 Chain Sprocket

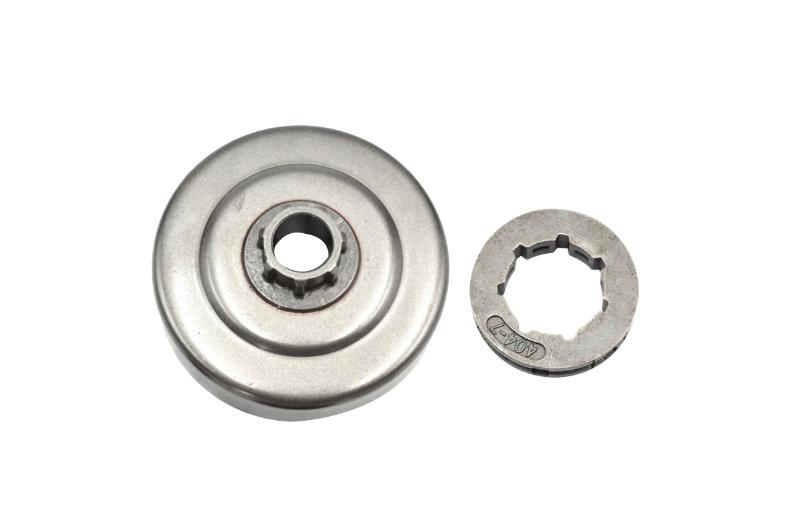

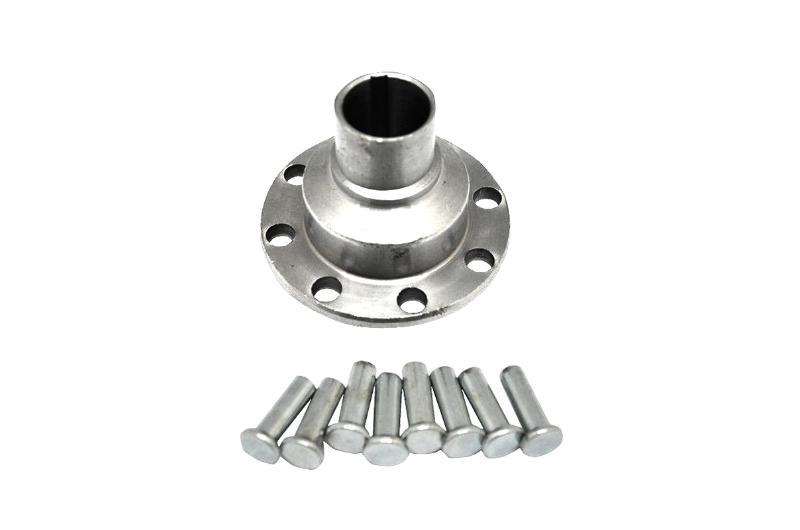

E34/35 Sprocket System

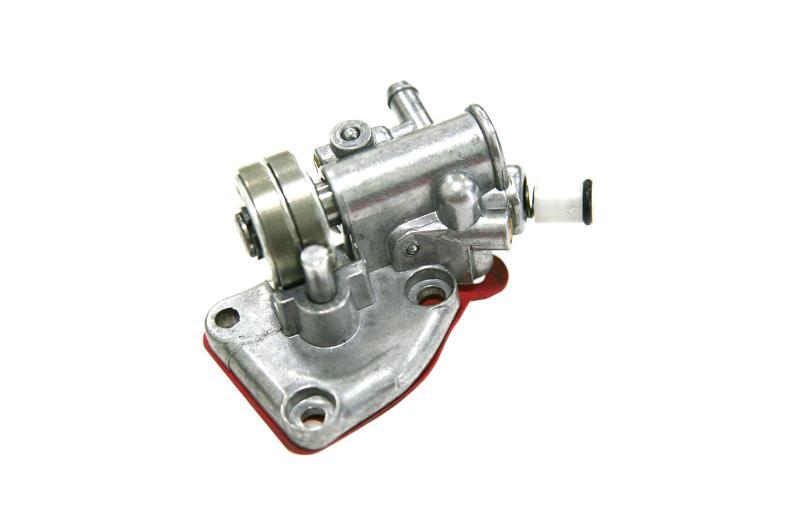

F1-17 Oil Pump

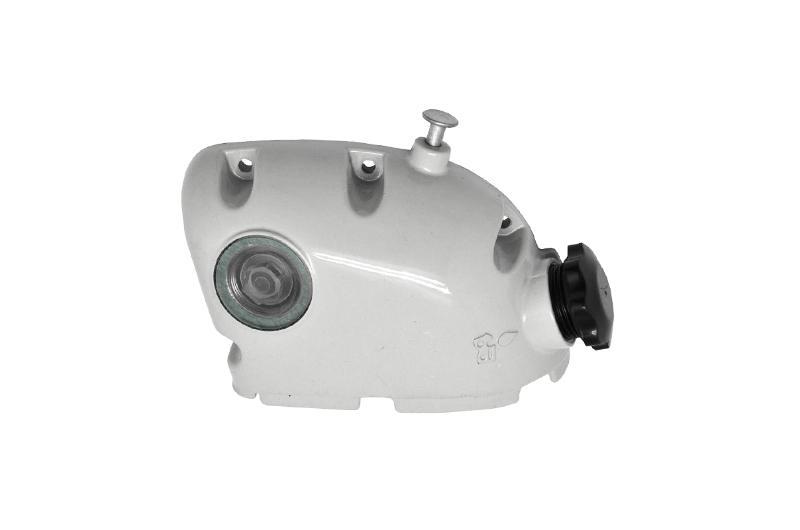

F22-29 Oil Tank Cover

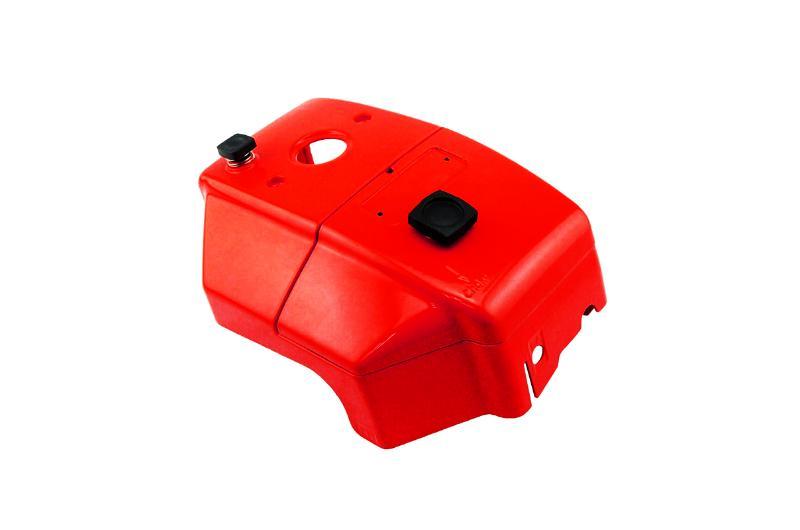

G25-40 Top Cover Assy

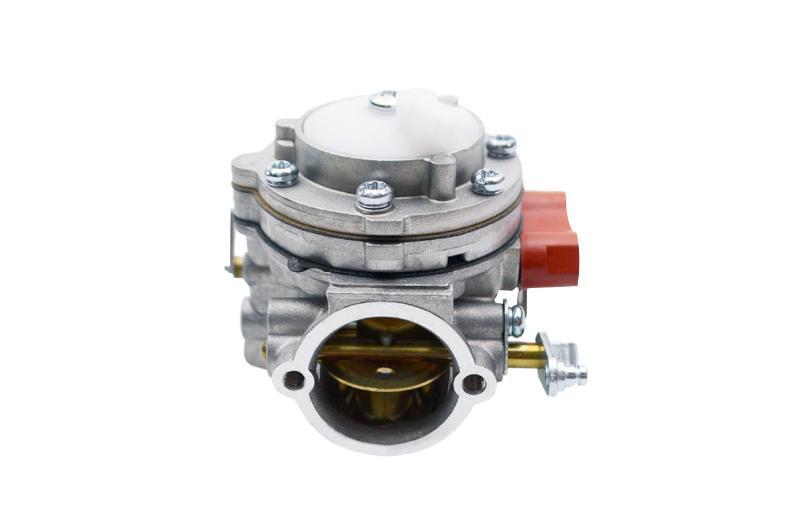

H1-39 Carburetor

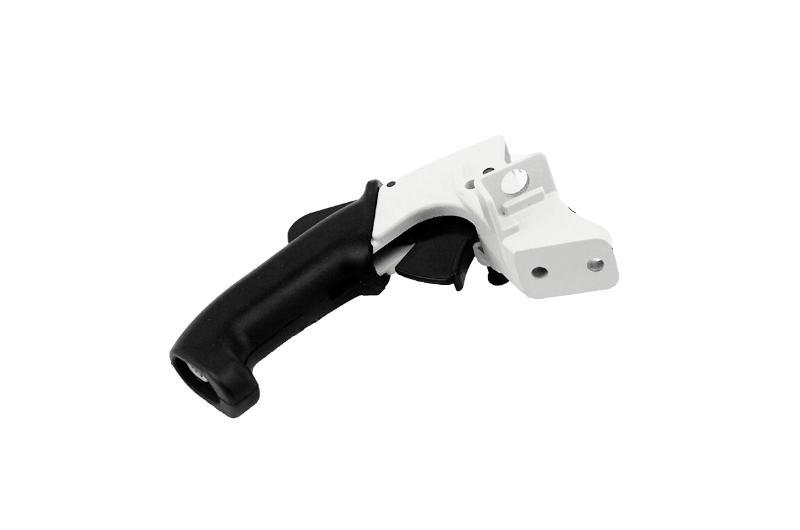

J1-12 Rear Handle

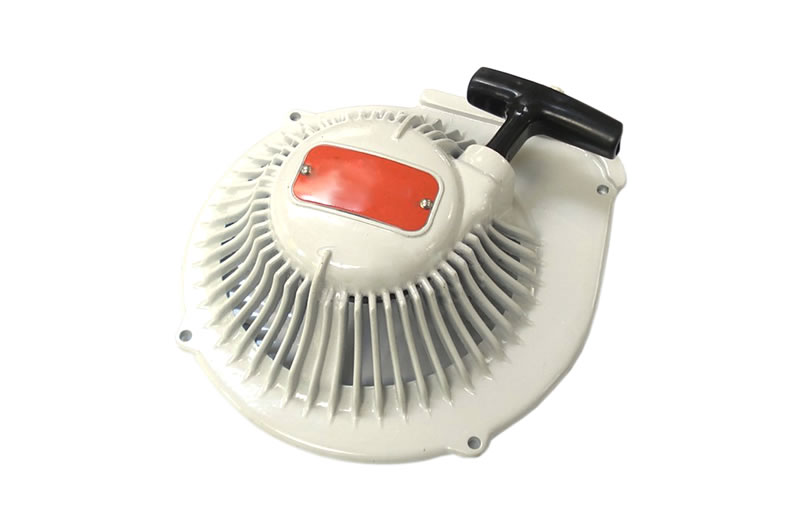

C1-12 Starter Assy 070

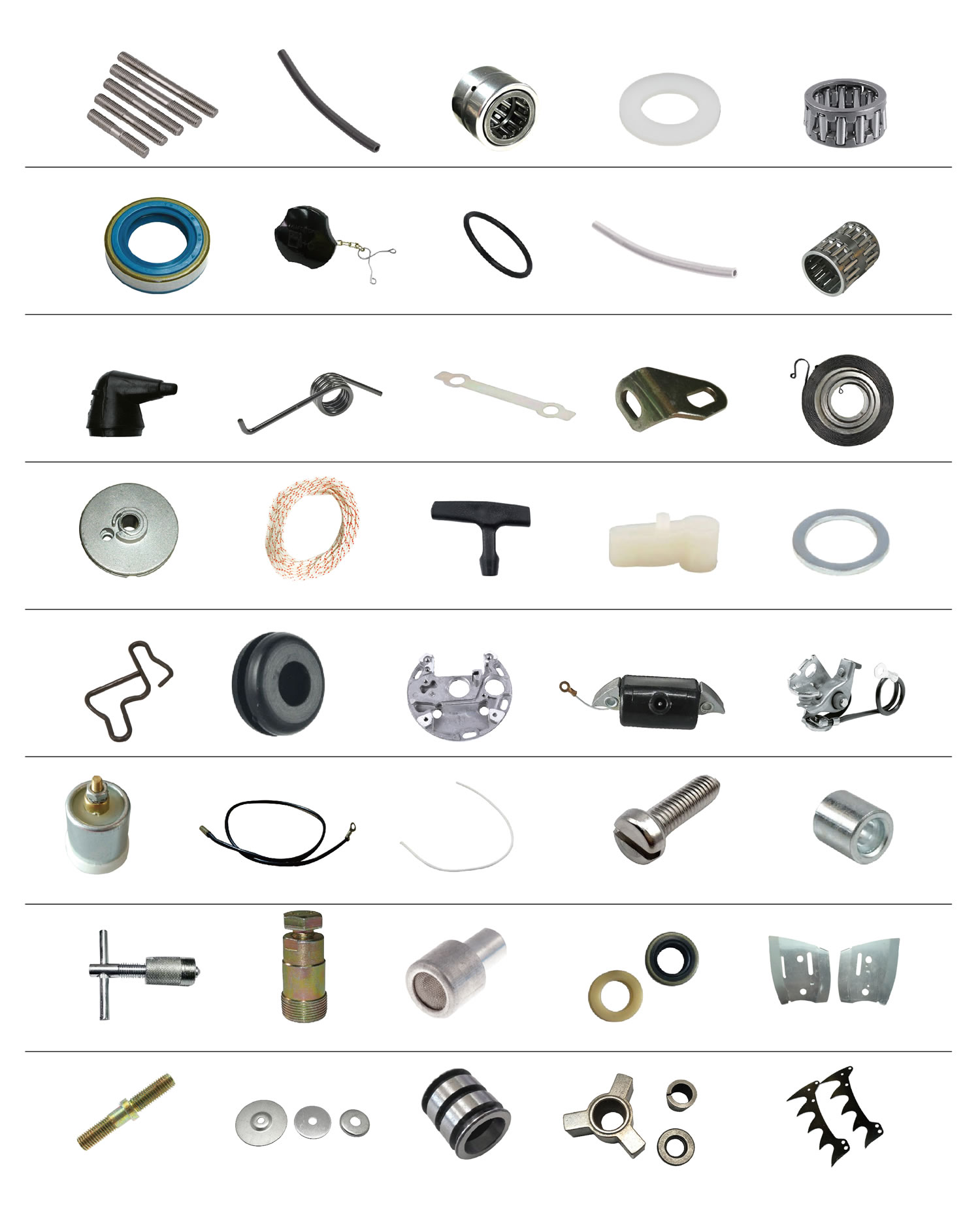

Other Spare Parts

CODE	Code +ENGLISH NAME	CODE	Code +ENGLISH NAME
A1	A1 Crankcase Assy (Al)	E32	E32 Fuel Tank Cover With Screws And Gaskets-Al
A3	A3 Stud		Fuel Tank Cover E32 Only-Al
A10	A10 Oil Line		E32 Fuel Tank Cover With Screws And Gaskets-Mg
A11	A11 Crankcase Bearing	E33	E33 Screw
A14	A14 Washer	E34,35	E34, E35 Sprocket System
A15	A15 Needle Bearing	E35	E35 Sprocket Rim 404-7, Color Box
A17	A17 Oil Seal		E35 Sprocket Rim 404-7
A19	A19 Crankshaft		E35 Sprocket Rim 404-8
A20	A20 Gasket	E36-37	E36-37 Chain Catcher With Screm
A21-24	A21-24 Fuel Filler Cap	F1-17	F1-17 Oil Pump
A24	A24 O Ring	F5	F5 Plunger With Diaphragm
A50	A50 Oil Tube	F19	F19 Hose
A51	A51 Sealing	F20	F20 Oil Pick-Up Body
A52	A52 Hollow Screw	F19-20	F19-20 Hose And Oil Pick Up Body
A64	A64 Crankshaft Bearing	F23-24	F23-24 Washer+Oil Inspection Window
B1b	B1 Needle Cage (Piston Breaing)	F27	F27 Circlip
B2	B2 Cylinder Assy Chrome Plated	F25-27	F25-27 Thrust Bolt Kit
B2	B2 Cylinder Assy Ceremic Plated ( 13 Teeth /14 Teeth /14 Teeth Strong) White	F22-29	F22-29 Oil Tank Cover-Mg
B3	B3 Stud	F22-29	F22-29 Oil Tank Cover-Alu
B4	B4 Stud	F28-29	F28-29 Oil Filler Cap
B6	B6 Compression Ring 2Pc/Plastic Box	F30	F30 Saw Dust Guard
B5-8	B5-8 Piston Assy	F31	F31 Protective Plate
	B5-8 Piston Assy (Pt Type)	F33	F33 Gasoline Filter Tube
B15	B15 Socket Head Screw	F34	F34 Gasoline Filter Tube Joint
B16	B16 Spark Plug	F35	F35 Hose
B17	B17 Spark Plug Terminal	F33-37	F33-37 Fuel Filter With Hose（Black/Red）
B18	B18 Torsion Spring	F36,37	F36, F37 Pick Up Body
B19	B19 Exhaust Gasket-Best	G1-9	G1-9 Screw
	B19 Exhaust Gasket-Paper	G4	G4 Governor Shaft
	B19 Exhaust Gasket-Iron	G5	G5 Governor Rod
B20	B20 Muffler	G6	G6 Hook-On Spring
B21	B21 Cover	G8	G8 Wind Vane
B22	B22 Locking Plate	G9	G9 Pan Head Screw
B23	B23 Hexagon Head Screw	G10	G10 Gasket
B24	B24 Angle Bracket	G11	G11 Cooling Plate
B25	B25 Pan Head Screw	G12	G12 Intermediate Flange
C1	C1 Starter Cover Only (Al)	G15	G15 Bushing
C1	C1 Starter Cover Only (Plastic)	G17	G17 Collar Nut
C5	C5 Rewind Spring	G18	G18 Strap
C7, C10-12	Rope Pulley	G19	G19 Filter Gasket
C8	C8 Starter Rope	G20	G20 Intake Elbow
C9	C9 Grip	G21	G21 Hexagon Head Screw
C10	C10 Pawl	G22	G22 Short Support
C11	C11 Washer	G23,24	G23, G24 Lock Washer+Socket Head Screw
C12	C12 Spring Clip	G25	G25 Sealing Ring
C1-12	C1-12 Starter Assy-Al	G27	G27 Stud
	C1-12 Starter Assy-Mg	G29	G29 Clamping Piece
	C1-12 Starter Assy-Plastic	G31	G31 Choke Rod
C10-12	C10-12 Pawl, Washer, Spring, Plastic Pawl	G32-33	G32-33 Air Filter
D1/A7	D1/A7 Grommet D1	G35-36	G35-36 Nut & Washer
D2	D2 Washer	G37-39	G37-39 Button, Spring & Washer
D3	D3 Flywheel Magneto	G25-40	G25-40 Top Cover Assy-Plastic
D4	D4 Ignition Coil		G25-40 Top Cover Assy-Mg
D3-20	D3-20 Coil Complete Assy		G25-40 Top Cover Assy-Al
D5	D5 Pan Head Screw	G40	G40 Top Cove (Name Plate)
D6	D6 Set Of Points-Flat	H1-39	H1-39 Carburetor
D8	D8 Spring Washer	H3	H3 Choke Shutter
D9-10	D9-10 Condensor	H9	H9 Carburetor Daighram
D13-14	D13-14 Ground Lead	H16	H16 Idle Adjustment Screw
D15	D15 Ignition Lead 100M/Roll	H29	H29 Main Adjustment Screw
D16	D16 Grommet	H16-29	H16-29 Carburetor Parts
D17	D17 Wick	H20-21	H20-21 Idle Speed Regulating Screw&Spring
D18	D18 Dust Cap	H22	H22 Inlet Needle Valve
D19	D19 Plug	H24-28	H24-28 Carburetor Parts
D20	D20 Pan Head Screw	H34	H34 Throttle Shaft With Lever
D21	D21 Magnetor Flywheel	H37	H37 Lens Head Screw
D22	D22 Pan Head Screw	H38	H38 Torsion Spring
D23	D23 Fanwheel	H39	H39 Throttle Shutter
D24	D24 Pan Head Screw	H34-39	H34-39 Throttle Shaft With Lever Assy-Cs
D25	D25 Bushing	J1-12	J1-12 Rear Handle
D28	D28, D21B Rotor	J5	J5 Throttle trigger
D29	D29 Puller-New	J8	J8 Hook On Spring
D30	D30 Puller-Old	J9	J9 Lever
E2	E2 Strainer Flange	J11	J11 Hook-On Spring
E5-6	E5-6 Rubber Cap&Seat	J13	J13 Long Support
E7-8	E7-8 Adjusting Nut,Chain Adjusting Screw	J14	J14 Pan Head Screw
E12,16,20	E12, E16, E20 Washer Set (3Pc/Set)	J16	J16 Hexagonal Nut
E10	E10 Inner Guide Plate	J15-17	J15-17 Stop Switch
E11	E11 Bar Bolt-Nomal	J18	J18 Grommet
E11	E11 Bar Bolt-Extra	J20	J20 Throttle Rod
E12	E12 Cover Plate	J21-22	J21-22 Front Handle-Iron
E13,14	E13, E14 Chain Sprocket	J21-22	J21-22 Front Handle-Alu
E15	E15 Spieth Adapter Sleeve	J24	J24 Clamping Collar
E16	E16 Washer	J23	J23 Rubber Bushing
E17	E17 Spider-New	J23-24	J23-24 Rubber Bushing & Clamping Colar
E17	E17 Spider-Old	J23/24/J32	J23, J24, J32 Rubber Bushing & Clamping Colar
E17+18+19	E17-19 Clutch Assy-Old	J23/24/J33	J23, J24, J33 Rubber Bushing & Clamping Colar
10000000	E17-19 Clutch Assy-New	J25	J25 Hexagon Head Screw
E20	E20 Washer-Big	J26,27,28	J26-28 Countersunk Screw & Thrust Washer & Retaining Nut Vm6
E21	E21 Sprocket Bearing-Metal	J29	J29 Pan Head Screw
E21	E21 Sprocket Bearing-Plastic	J34	Long Clip
E22	E22 Ring-Old	L25	L25 Plug Spanner, White
E22	E22 Ring-New	L26	L26 Wrench
E23	E23 Hexagonal Nut Left	L27	L27 Locking Screw-Iron
E24	E24 Chain Sprocket Cover-Mg	10000	L27 Locking Screw-Plastic
E24	E24 Chain Sprocket Cover-Alu	L28	L28 Allen Key
E25	E25 Spiked Bumper(Hook) 2Pc/Set	L32	L32 Saw File 5.5
E26	E26 Hexagon Head Screw	Z1	Z1 Gasket Complete Set
E27	E27 Retaining Nut Vm6		070 Carburetor Repair Kits
E10,E28	E10, E28 Inner&Outter Guide Plate		Modified Pieces
E30	E30 Hexagon Nut		36″ Guide Bar
E31	E31 Gasket		Saw Chain 404″,0.063″ 100Feet/Roll
			Saw Chain 404″,0.063″ 100Feet/Roll With Line

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
