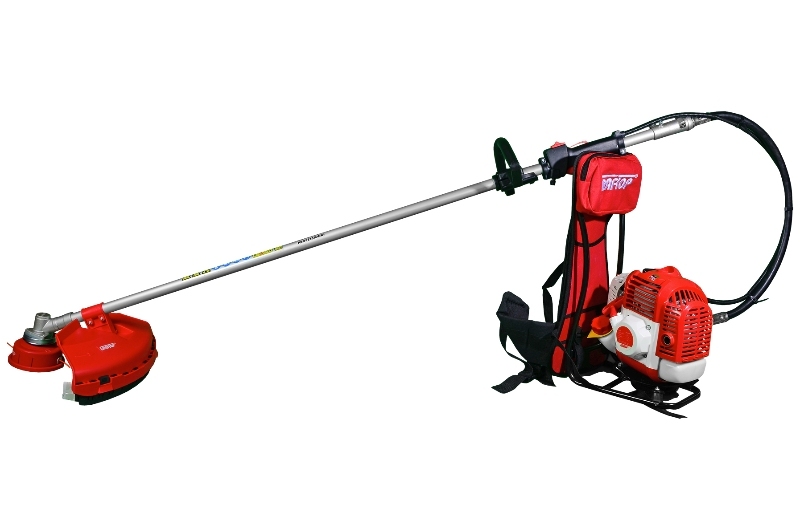

NTBG520D Professional Gasoline Grass Brush Cutter

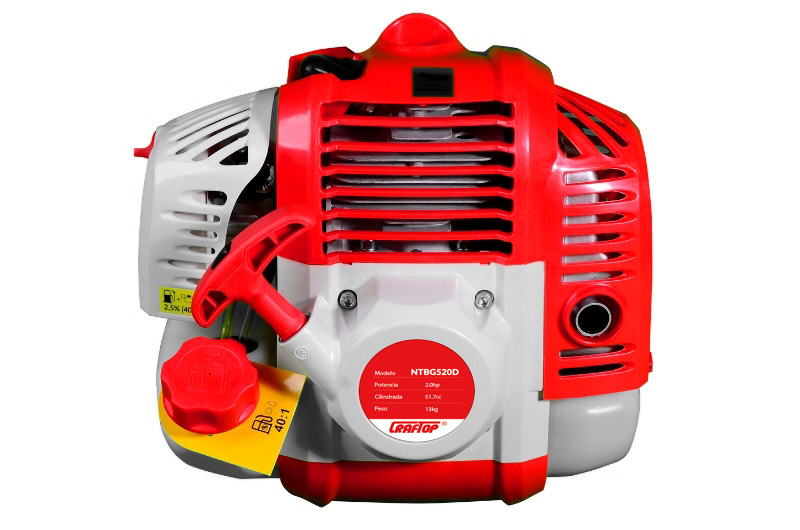

The engine and crankshaft body is made of aluminum alloy material with optimal light weight Machining at CNC center has good accuracy.
The plastic material adopts excellent grade nylon reinforcement, which has good thermal resistance and physical strength.
The ignition system of this machine is set to easy start, which has fast starting speed, easy and labor-saving.
The back frame is lengthened to provide more comfortable contacts with your back, and the back frame comes with a small bag, which is convenient for carrying tools.
The important power output part gearbox is manufactured with high precision and strict tolerance control, the service life can reach more than 200 hours.
All machines are accurately tested and adjusted to ensure that the engine works stably under suitable fuel consumption and temperature, and ensures that it will not stop at high temperature or be difficult to start under long-term high-speed operation.


The professional heavy-duty gasoline brushcutter is developed with intense labor in mind. The delta handlebar makes it easy to work on steep slopes and access tricky corners. This grass trimmer is used comfortably and adequately without causing physical problems to the user by distributing the machine’s weight on the back. It is ideal for professional projects and has a long usage time of over six continuous hours.


Product Name Brush Cutter
Model Name NTBG520D
Package dimension Engine: 370 x 280 x 580 mm; transmission: 1640 x 110 x 120 mm
Gross weight Engine: 9.5 kg; transmission: 3.8 kg
Net weight 9.5 kg
Application type Semi-professional
Displacement 51.7 cc
Max output power 1.6 kw / 2.2hp@  8000 rpm
Fuel Mixed gasoline and two-stroke air-cooled engine oil with a ratio 40:1
Fuel capacity 850 ml
Spool &knife 430 mm( Ø2.7*3.5M)+255mm 3-blade (255×1.6)

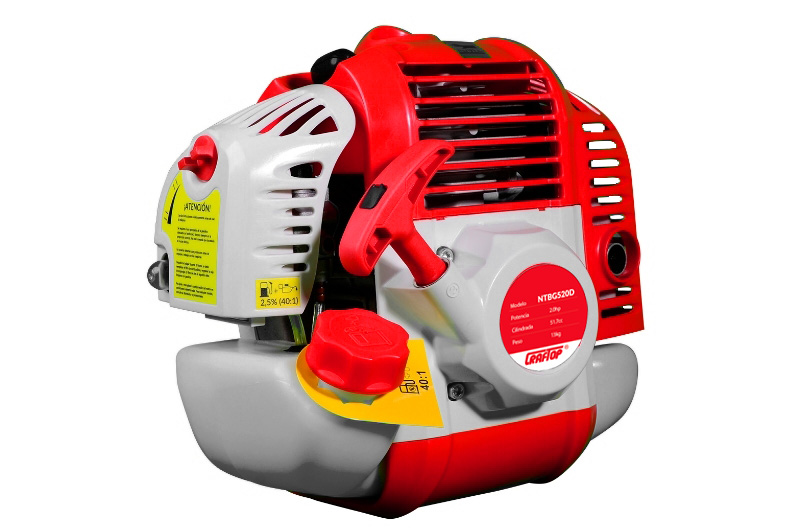

  • (1x) Power unit & Shoulder frame holder Assembly & Throttle switch

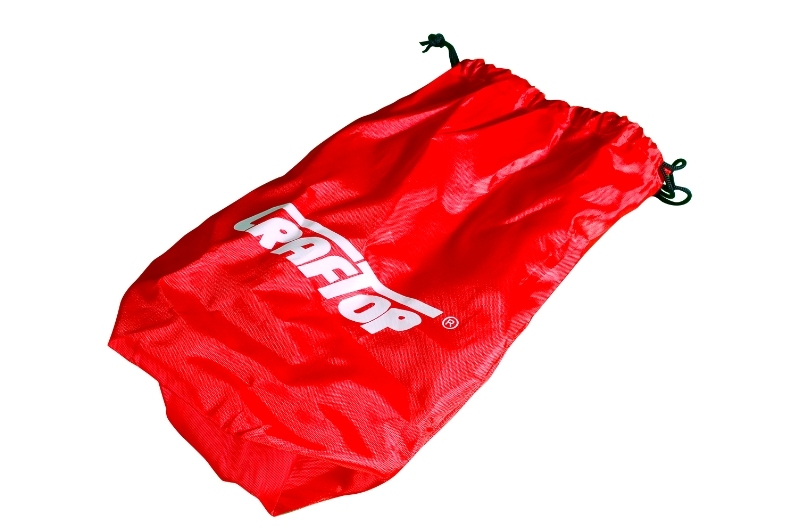

  • (1x) Tool bag

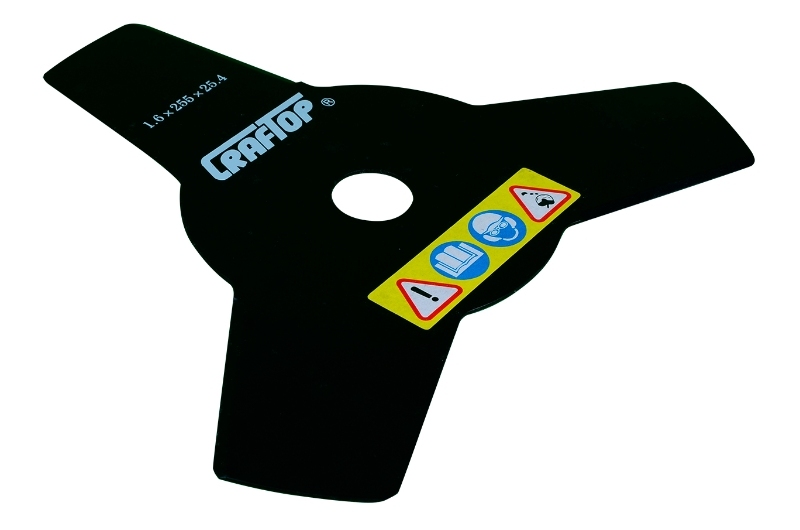

  • (1x) Three-tooth blade 255, 1.6mm
  • (1x) Warranty card
  • (1x) Owner’s manual

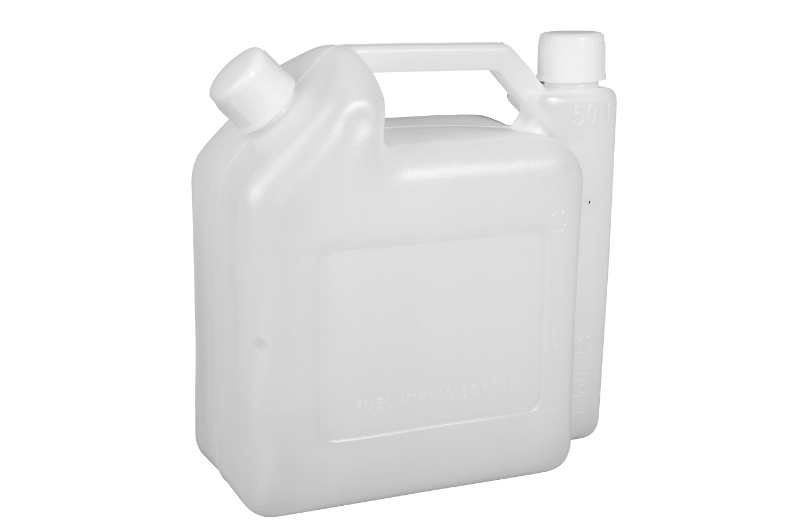

  • (1x) Two-hole fuel mixing bottle

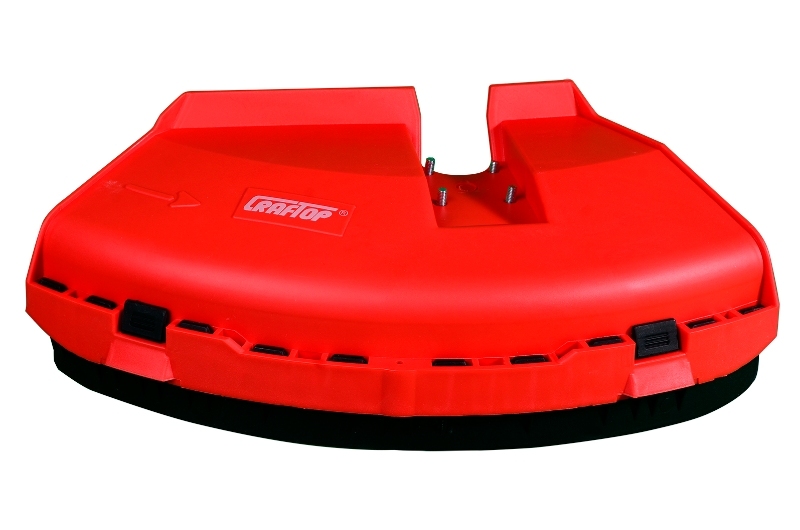

  • (1x) Deflector

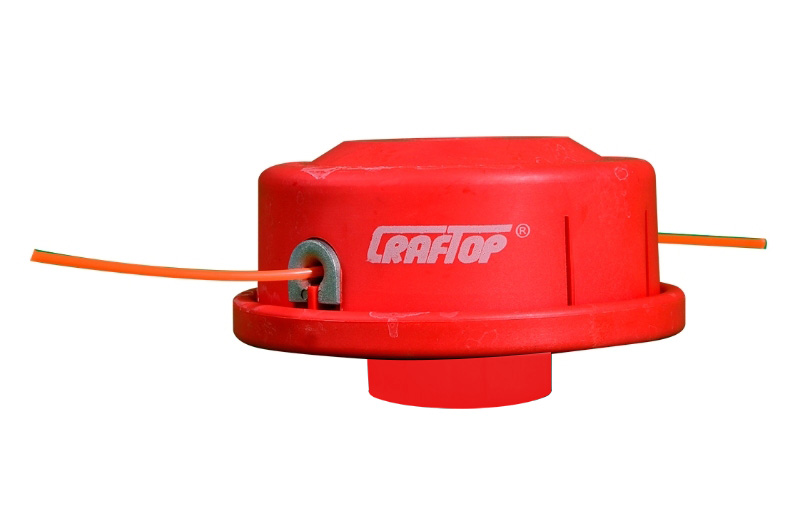

  • (1x) Mowing head

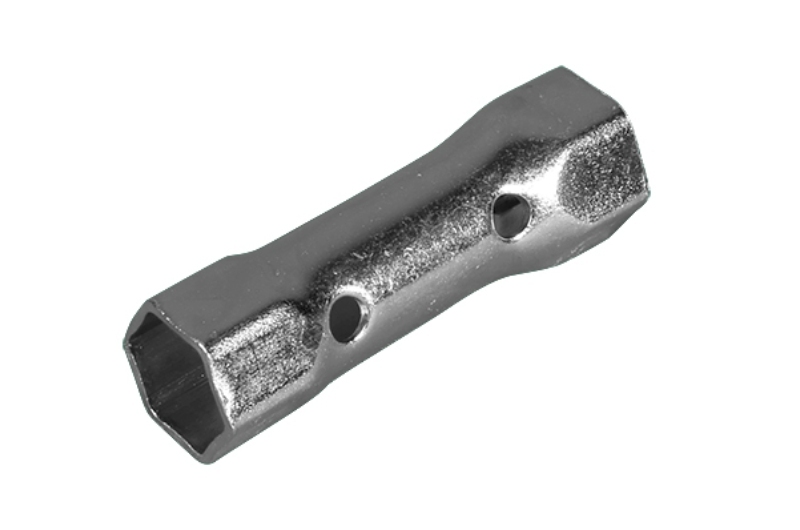

  • (1x) Socket wrench 17×19

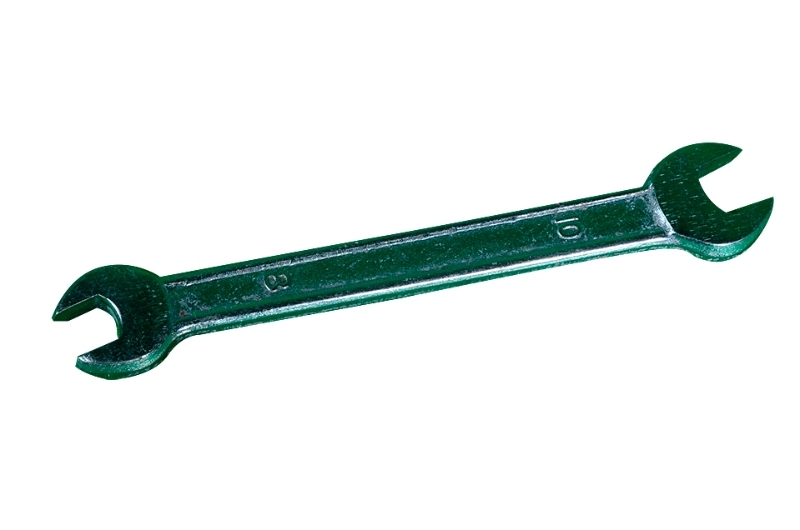

  • (1x) Open-end wrench 8-10

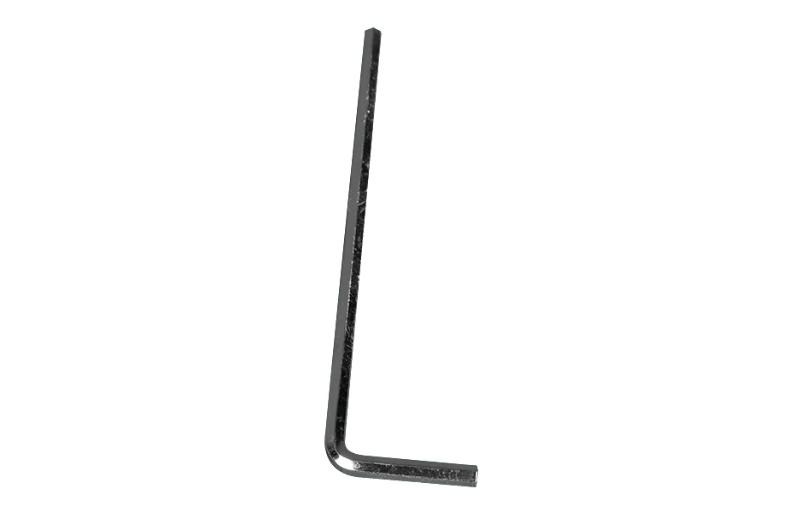

  • (1x) Torx key (4mm) lengthened

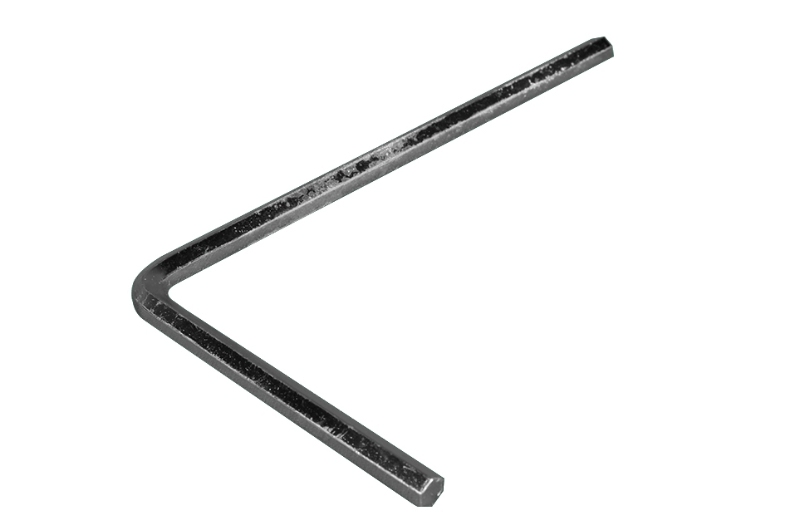

  • (1x) Hex key (5mm) lengthened

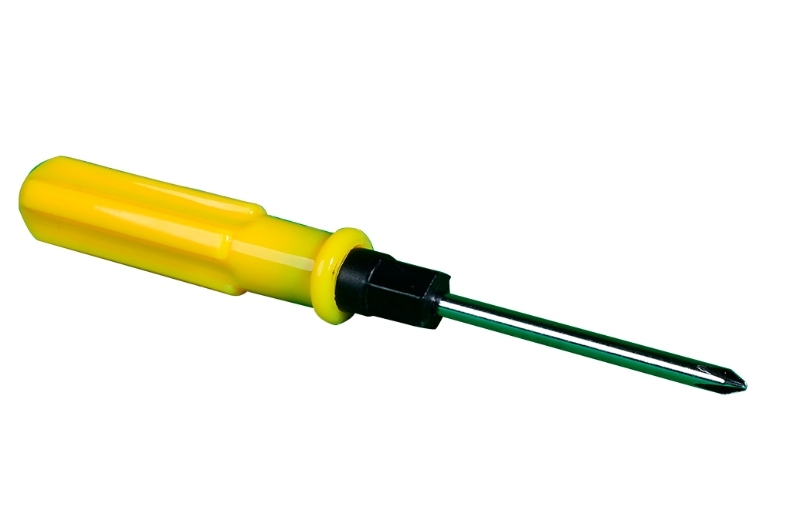

  • (1x) Dual-purpose screwdriver

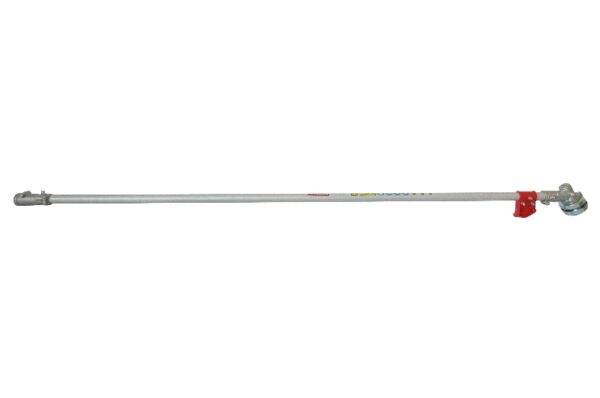

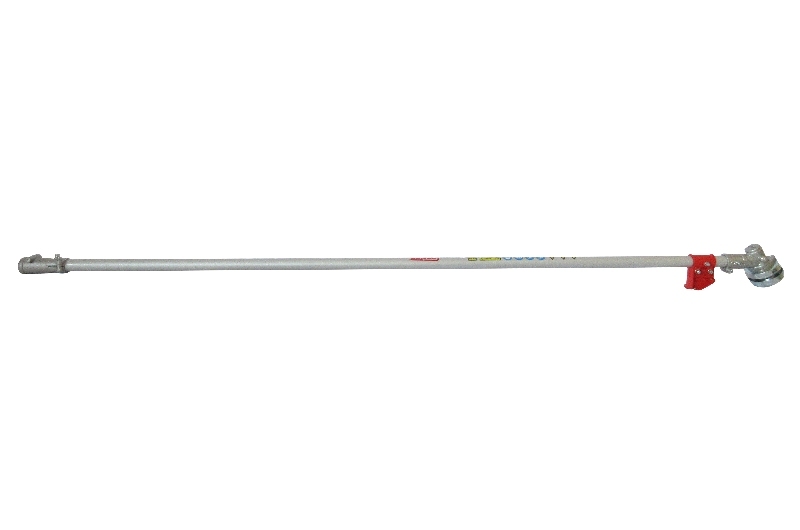

  • (1x) Drive tube

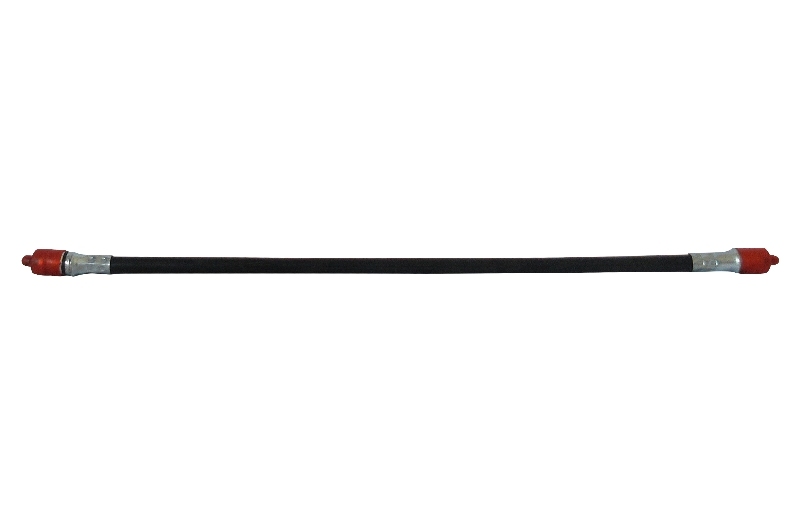

  • (1x) Rubber composite pipe and flexible shaft assembly

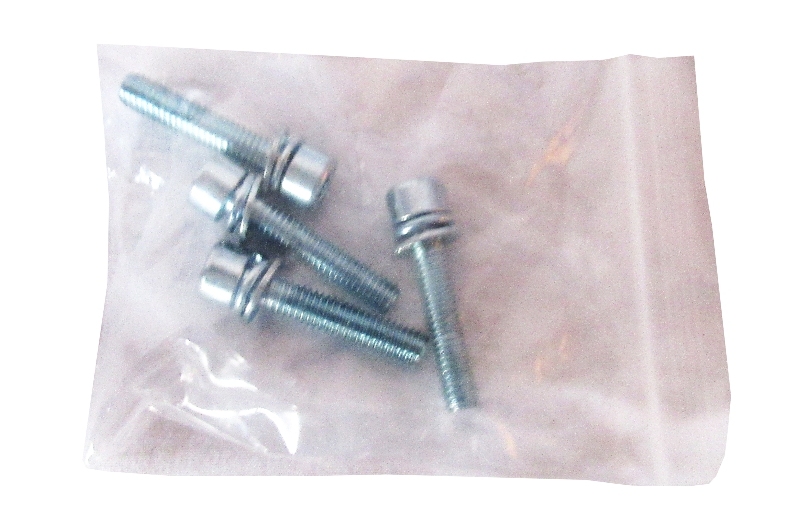

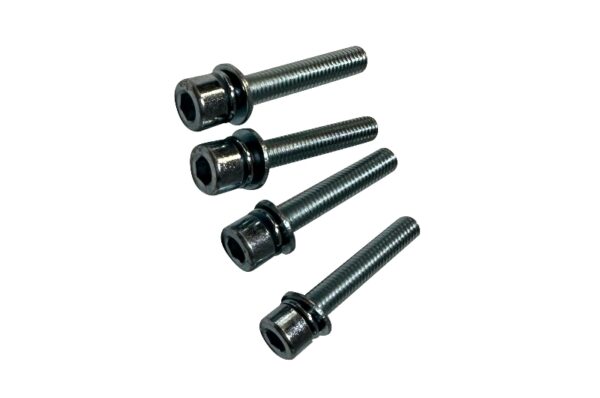

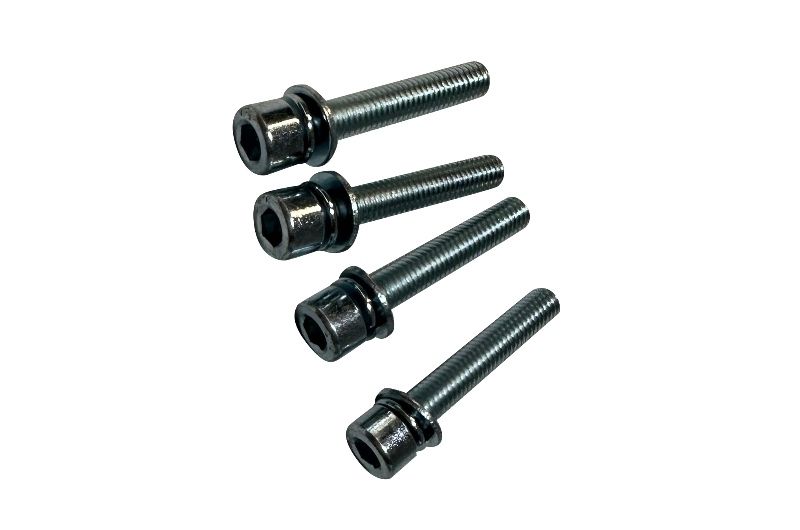

  • (4x) Screw M6x30

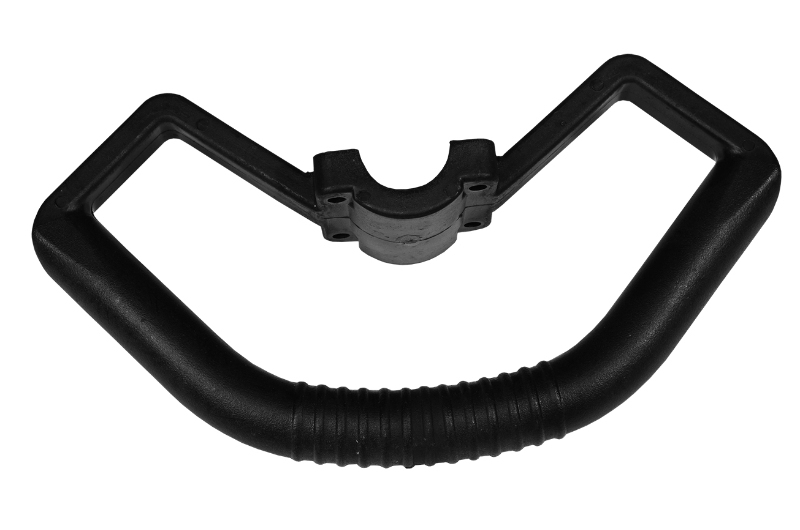

  • (1x) P-handle
  • (4x) Screw M5x30
  • (4x) Nut M5

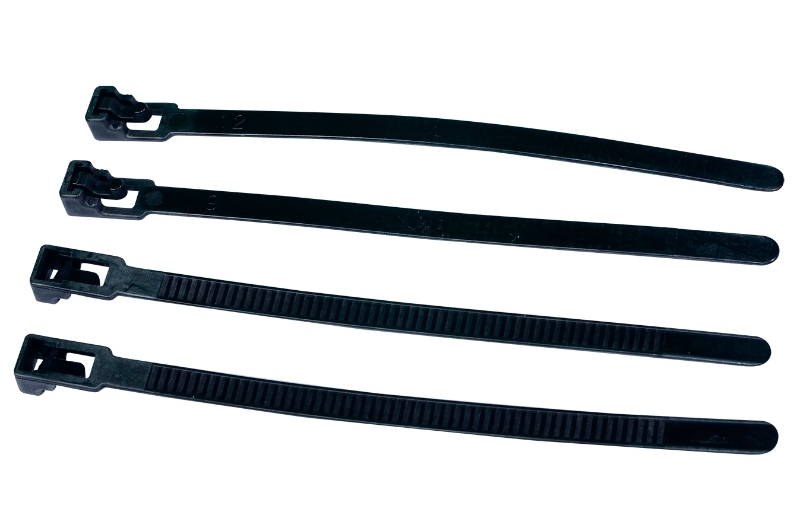

  • (4x) Nylon tie

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.



Q       Where can I buy a brush cutter?
A       You can find our brush cutters with our distributors, tools, garden stores, or online stores.
Q       How much does a brush cutter cost?
A       The price of a brushcutter varies according to the type, brand, and power. Battery-powered or electric brush cutters are often more affordable, while high-powered gas-powered ones can be more expensive.
Q       How do you maintain a brush cutter?
A       Regular maintenance includes: ●Regularly checking and cleaning the air filter. ●Changing the oil and spark plug (if gasoline). ●Sharpening or replacing the blades. ●Lubricating moving parts.
Q       What are the safety precautions when using a brush cutter?
A       It is essential to wear safety glasses, suitable clothing, gloves, and hearing protection when operating a brushcutter. You should also make sure there are no people or pets near the work area and keep the brushcutter away from your body while it is running.
Q       What types of blades are used in a brush cutter?
A       Brush cutters can use metal blades or nylon strings. Metal blades are ideal for cutting thicker, stricter vegetation, while nylon lines are better suited for grass and lighter grass.
Q       How is a brush cutter powered?
A       Brush cutters can be powered by gasoline, electricity, or rechargeable batteries, depending on the type of brushcutter. Gasoline ones are usually more powerful and suitable for heavy-duty jobs, while electric or battery-powered ones are lighter and suitable for smaller jobs.
Q       What is the difference between a brush cutter and a lawn mower?
A       The main difference is that a brushcutter is designed to cut taller, denser vegetation, while a lawn mower is used to cut grass evenly. Brushcutters are usually more powerful and can handle more challenging terrain.
Q       What is a brush cutter?
A       A brushcutter is a powered tool used to cut grass, brush, shrubs, and unwanted vegetation in areas of gardens, fields, and grounds.
