NTMU430D4IN1

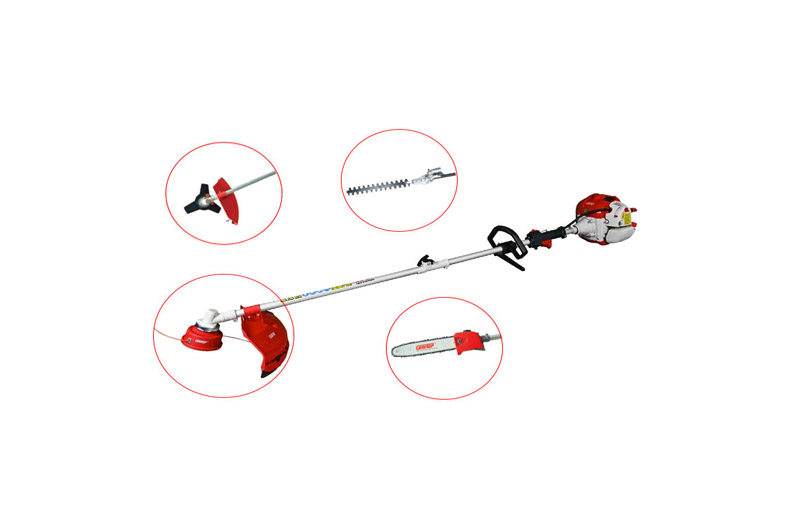

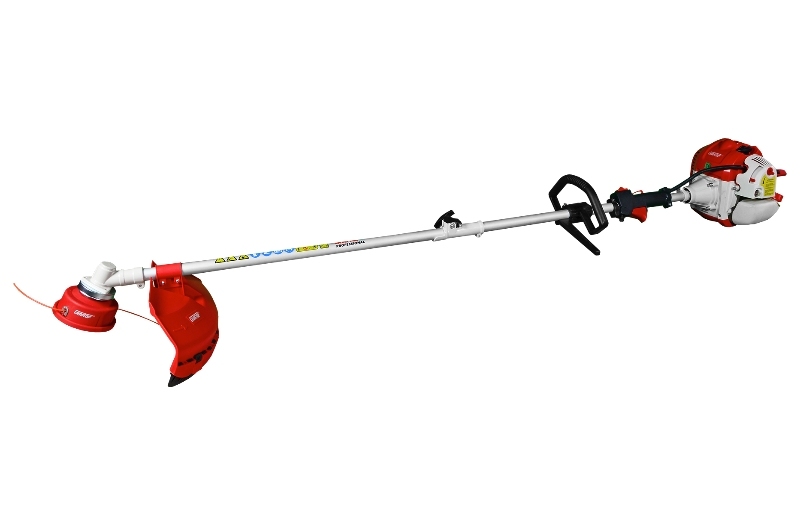

Multifunctional Machine NTMU430D4IN1:Brush Cutter, Height Mower, Edge Trimmer And Hedge Trimmer, All In 1

The four-in-one multiple function machine has a variety of functions to meet all the conventional needs for your garden work.
Functions can be switched via tool-free plug-in connection, convenient and reliable.
All boxes are made of aluminum alloy material, which has good strength and good heat dissipation and high service life.
The angle of high pruning scissors is adjustable, which is conducive to multi-directional angle operation.
The plastic material adopts excellent grade nylon reinforcement, which has good thermal resistance and physical strength.
The ignition system of this machine is set to easy start, which has fast starting speed, easy and labor-saving.
The important power output part gearbox is manufactured with high precision and strict tolerance control, the service life can reach more than 200 hours.
All machines are accurately tested and adjusted to ensure that the engine works stably under suitable fuel consumption and temperature, and ensures that it will not stop at high temperature or be difficult to start under long-term high-speed operation. The whole machine meets the European CE standard.

PRODUCT DESCRIPTION

A flexible and practical gardening machine that combines a brushcutter, a pruner high, an edge trimmer and a hedge trimmer, in a convenient and affordable package. It is highly efficient and has the power to make even the most demanding projects a quick and easy task.

The simple design of this model makes changing accessories quick and easy.

SPECIFICATIONS

TECHNICAL DATA (Gasoline Engine)
Application type Heavy-duty
Displacement 42.7 cc
Engine power 1.4 kW / 7000 rpm
Fuel Mixed gasoline and two-stroke air-cooled engine oil with a ratio 40:1
Fuel capacity 850 ml
TECHNICAL DATA (Brush Cutter and Grass trimmer)
Dimension of cutting blade Ø255 mm (10 inch)
Maximum of cutting width Ø255 mm (10 inch)
Cutting line diameter 2.5 mm
Maximum cutting width (grass trimmer) 430 mm (16.9 inch)
TECHNICAL DATA (Hedge trimmer)
Cutting blade type Double reciprocating blades
Blade length 450 mm / 17.5 inch
TECHNICAL DATA (Pole Saw)
Package dimension 1200 x 295 x 280 mm (Y x Y x Y inch)
Package weight 15.7 kg (34.5 lbs)
Net weight 14 kg (31 lbs)
Recommended guide bar length 10”
Pitch 3/8”
Gauge 0.050”

INCLUDES

  • (1x) Power unit & Drive tube & Throttle switch

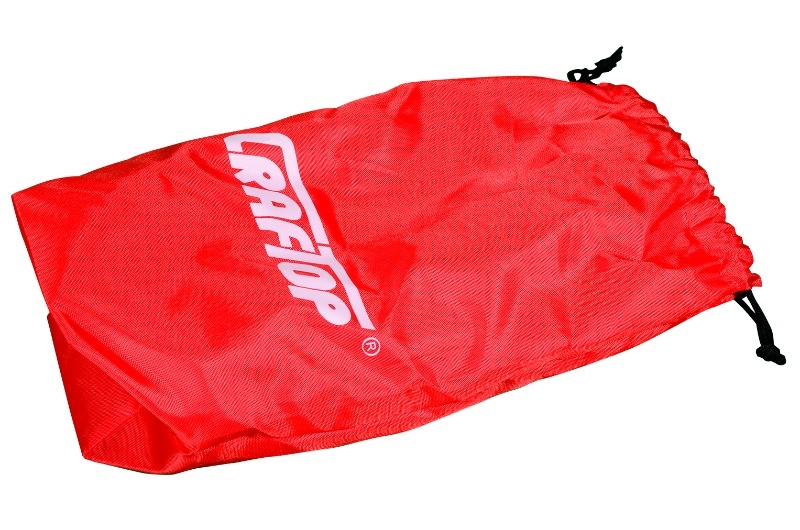

  • (1x) Tool bag

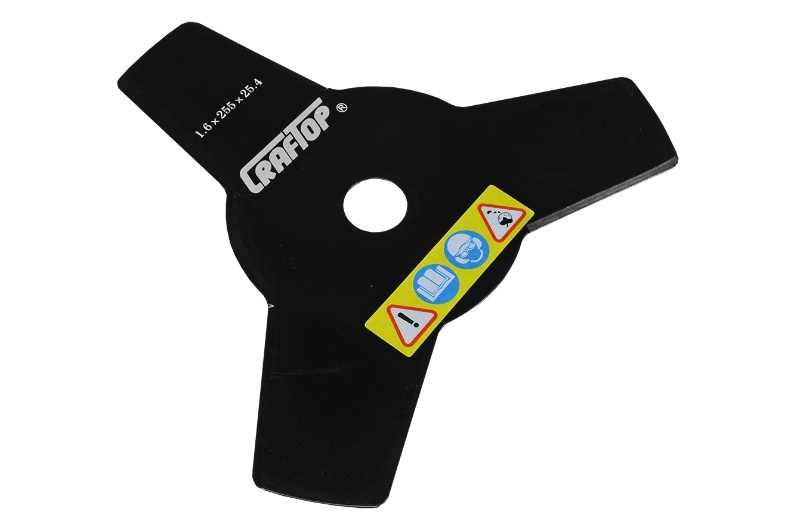

  • (1x) Three-tooth blade 255, 1.6mm

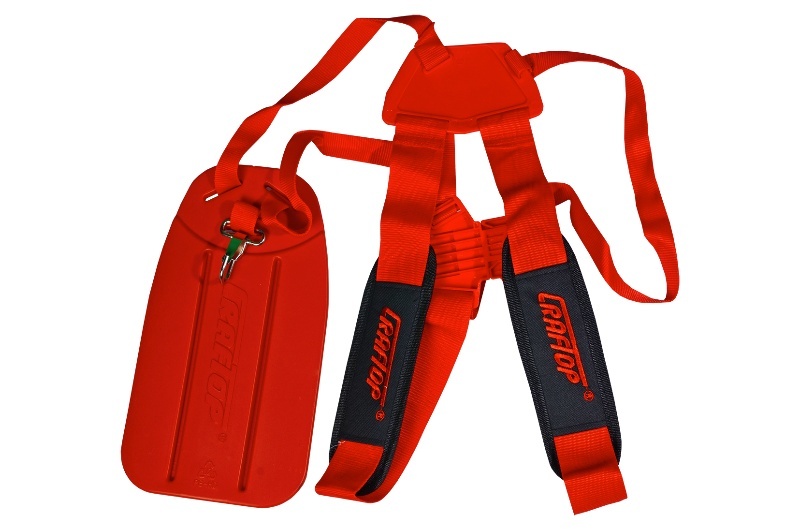

  • (1x) Harness
  • (1x) Warranty card

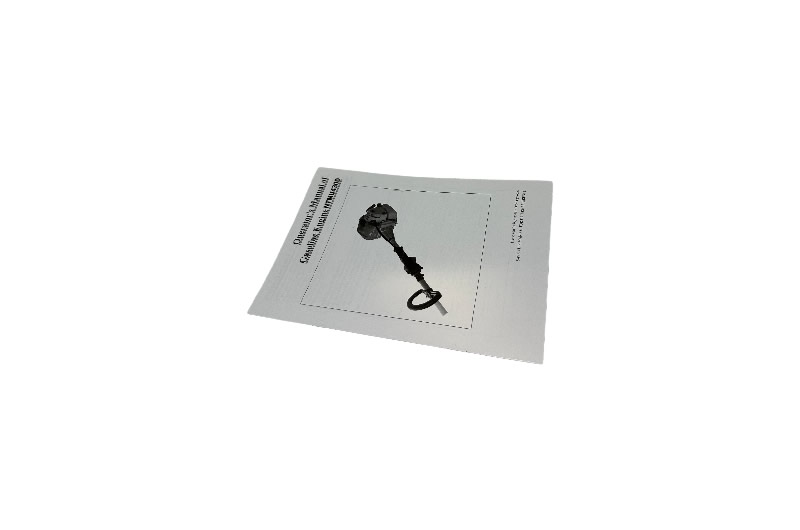

  • (1x) Owner’s manual-Power unit

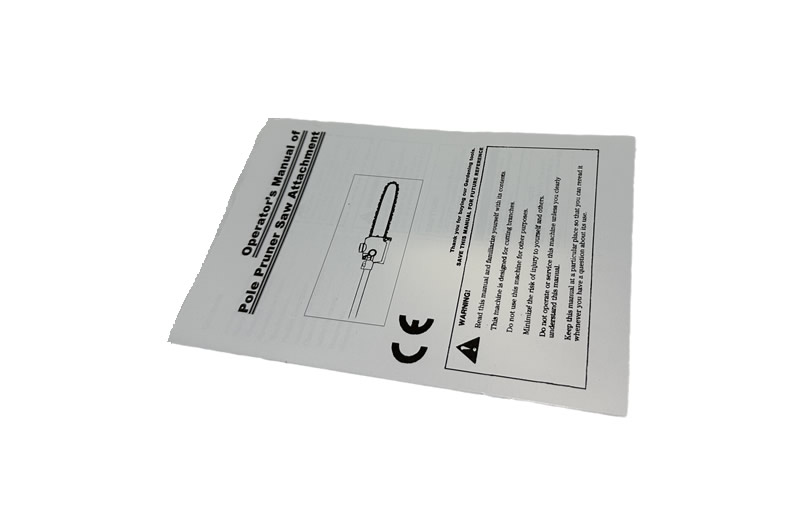

  • (1x) Owner’s manual-Pole saw
  • (1x) Owner’s manual-Hedge trimmer

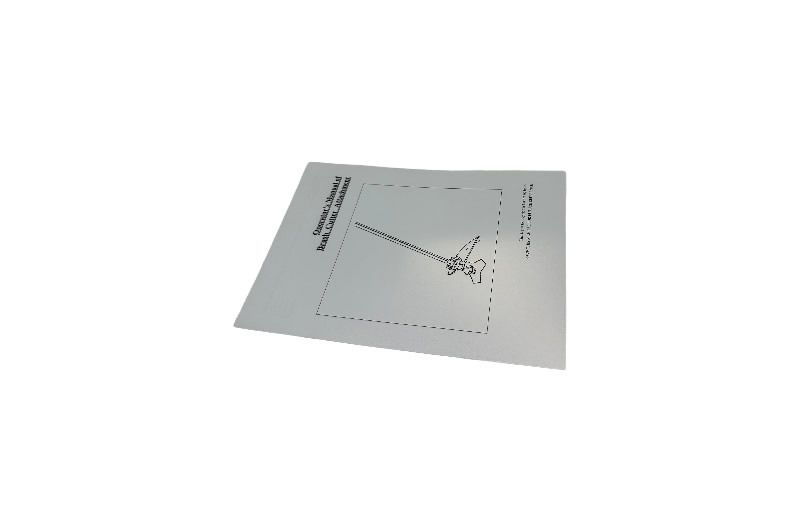

  • (1x) Owner’s manual-Brush cutter

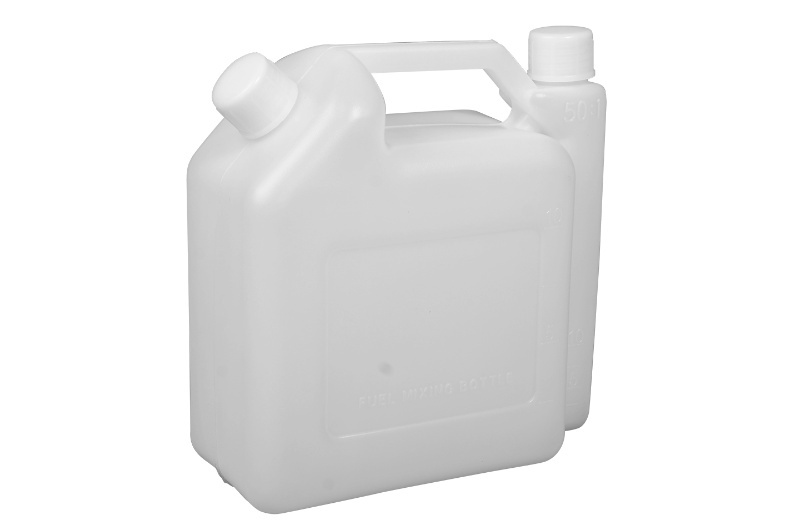

  • (1x) Two-hole fuel mixing bottle

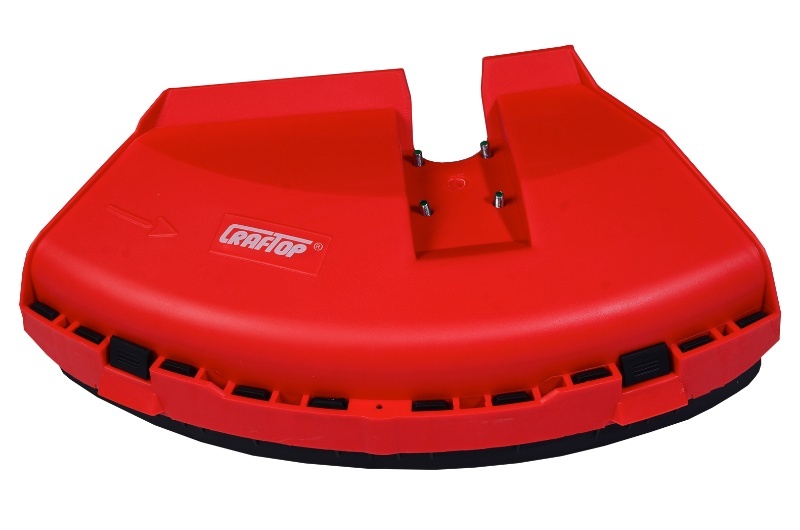

  • (1x) Deflector

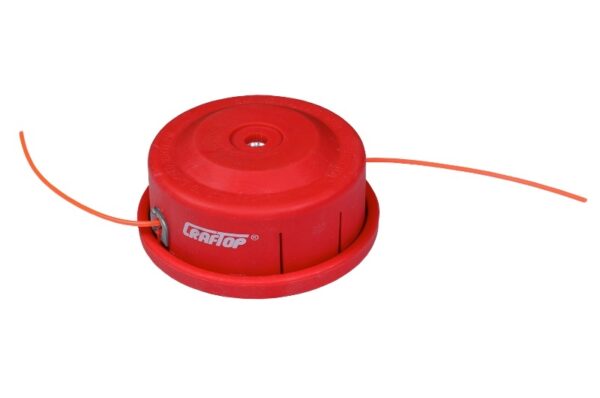

  • (1x) Mowing head

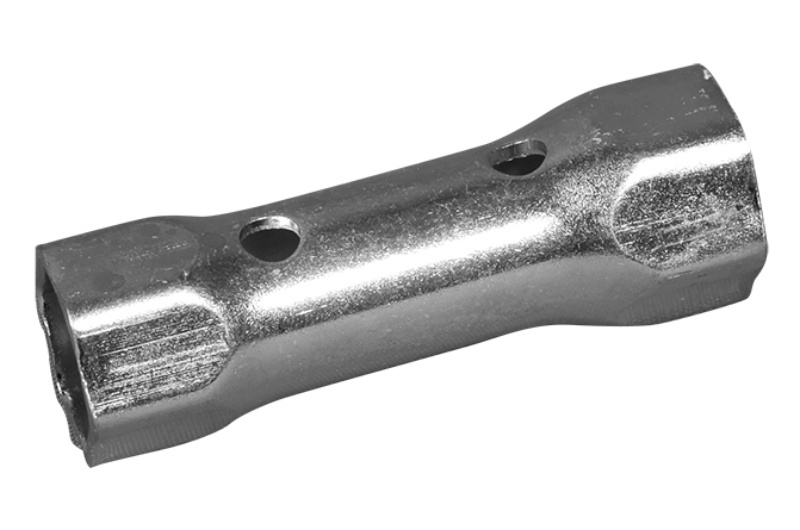

  • (1x) Socket wrench 17×19

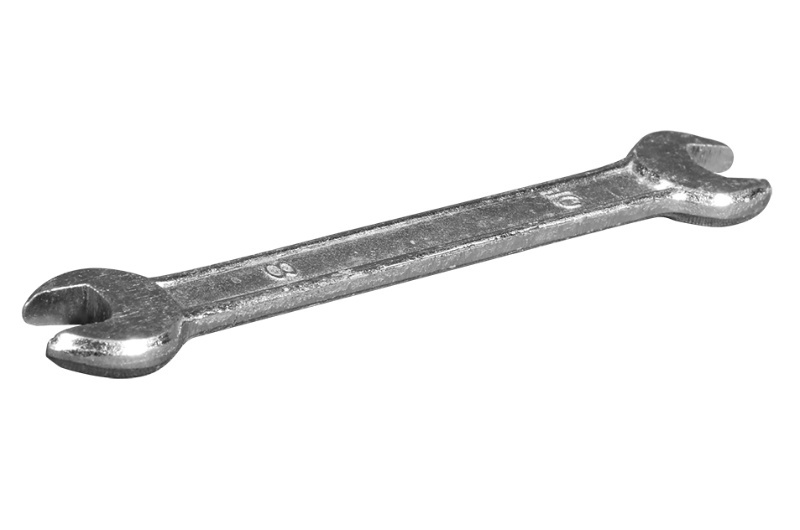

  • (1x) Open-end wrench 8-10
  • (1x) Torx key (4mm) lengthened

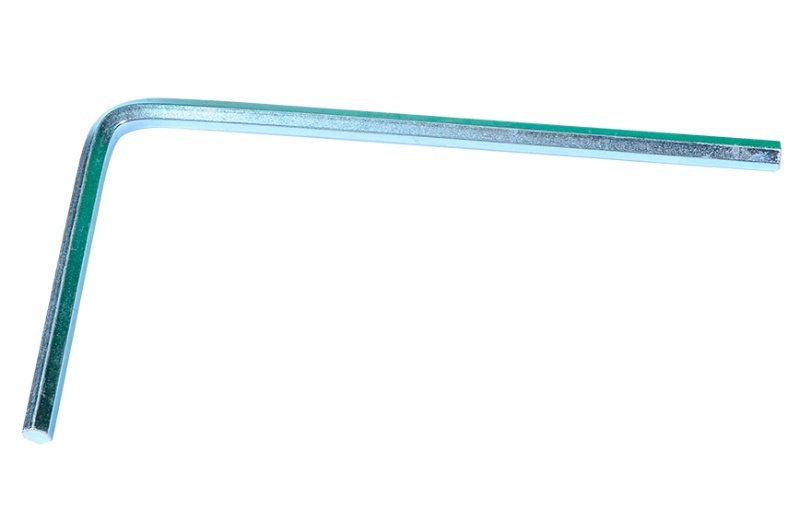

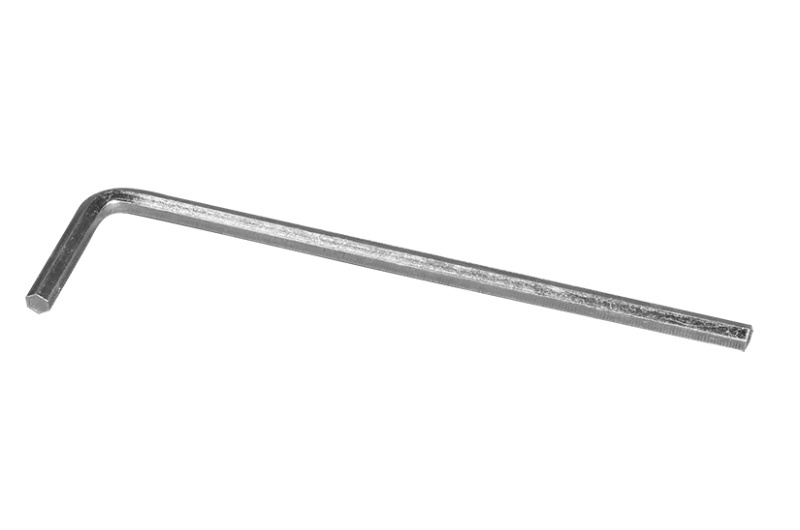

  • (1x) Hex key (5mm) lengthened

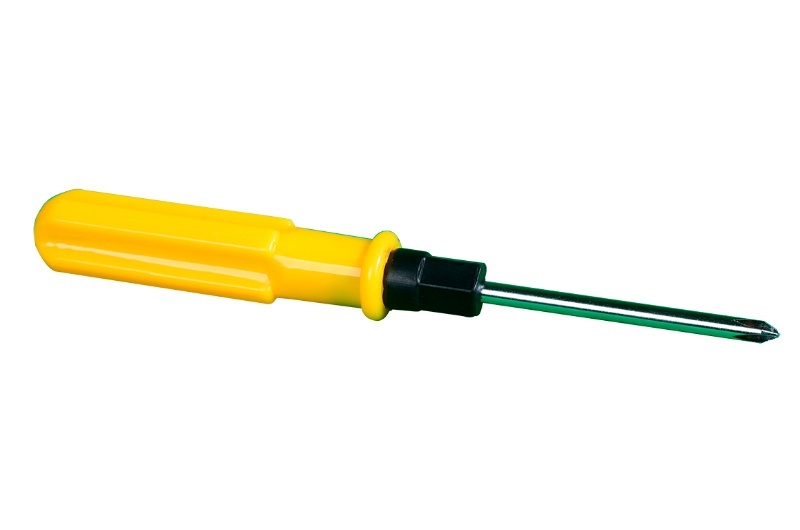

  • (1x) Dual-purpose screwdriver

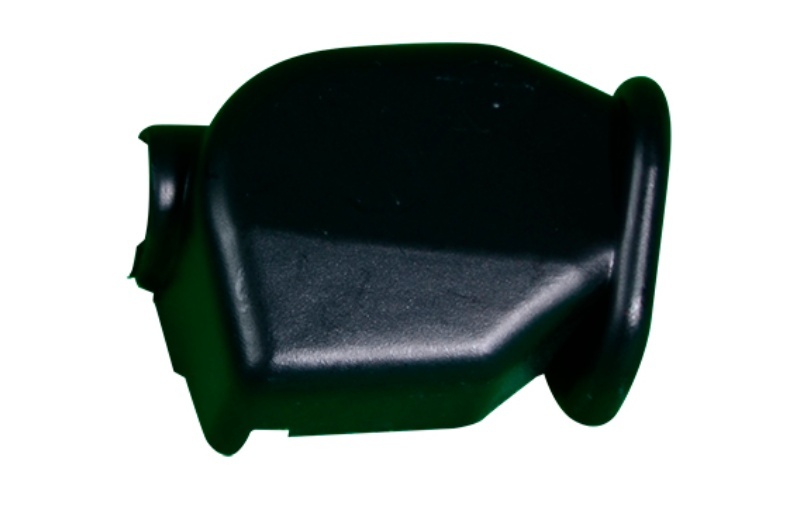

  • (1x) Carburetor dust cover

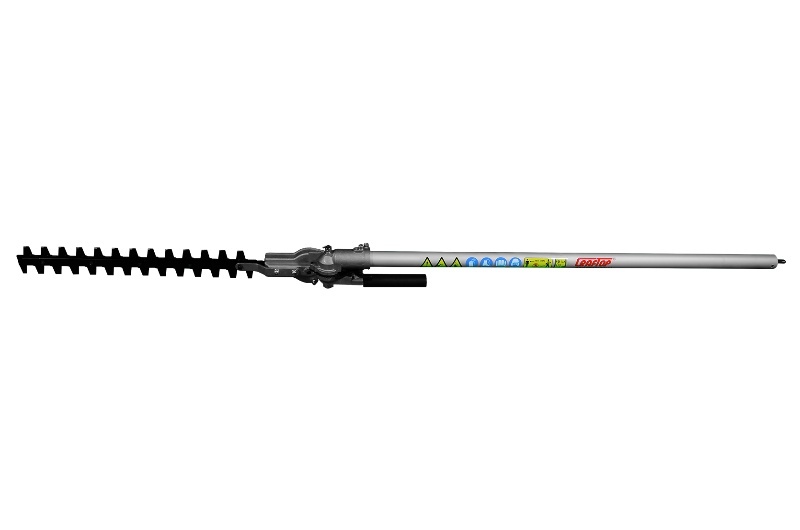

  • (1x) Hedge trimmer & drive tube

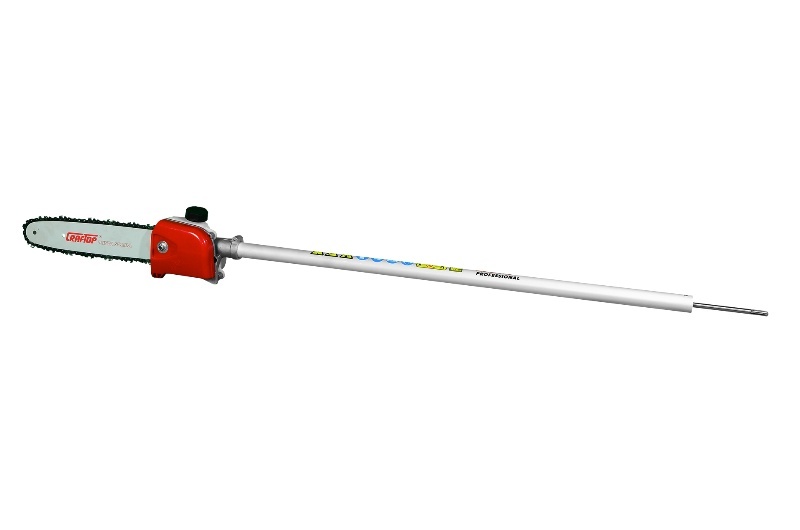

  • (1x) Pole saw & drive tube
  • (1x) Bush cutter & drive tube

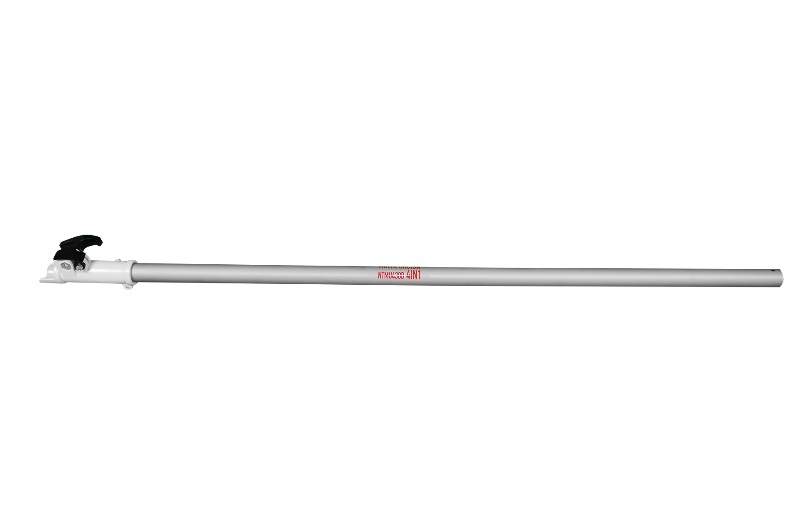

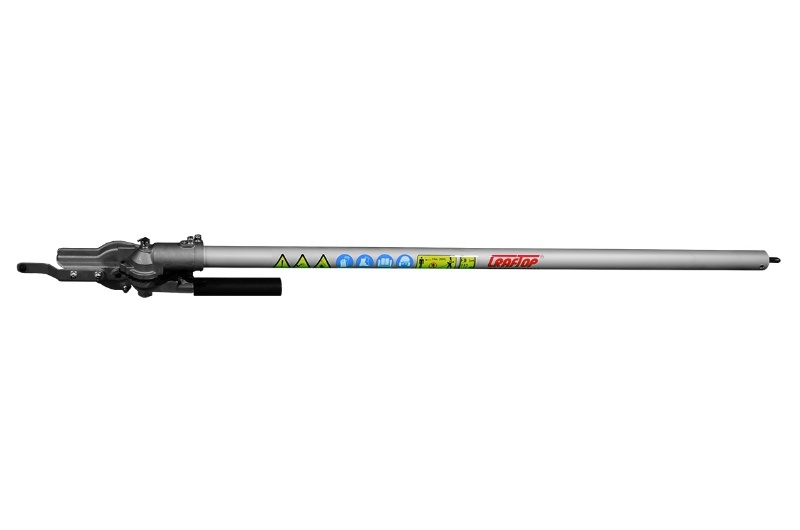

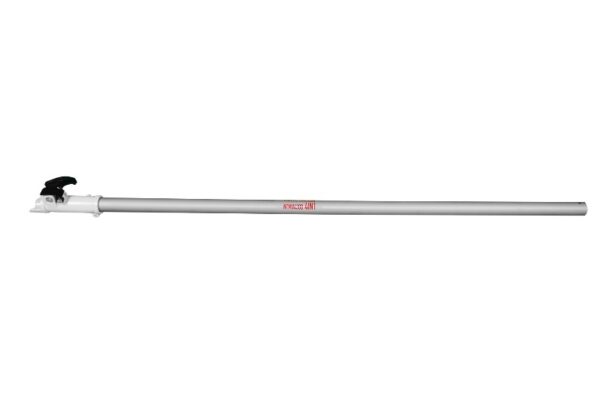

  • (1x) Extension tube

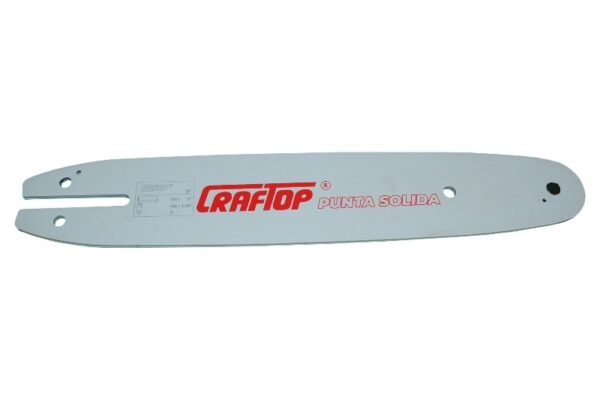

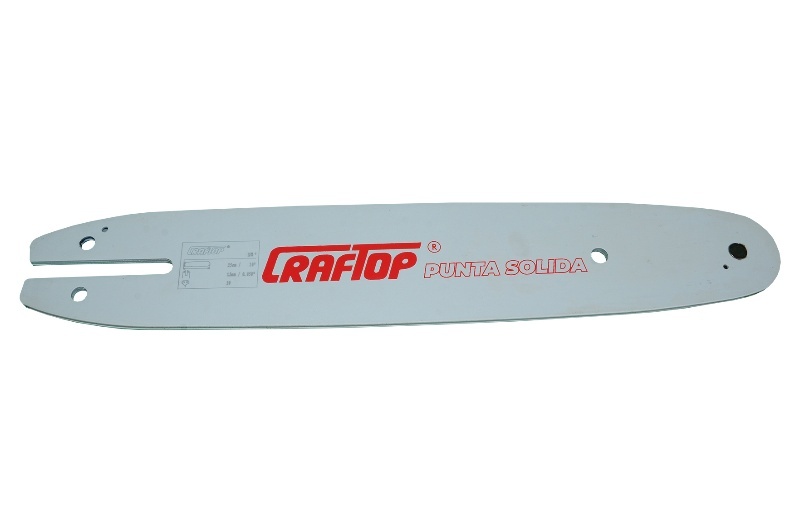

  • (1x) 10-inch laminated guide bar

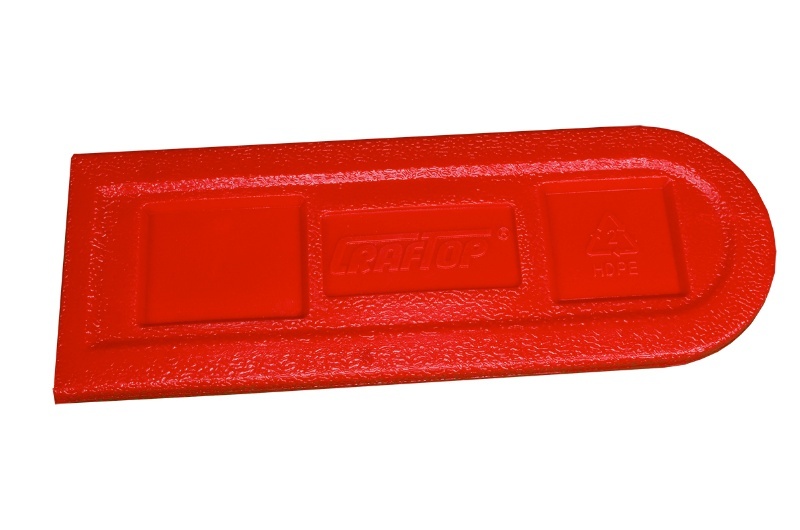

  • (1x) 10-inch guide bar guard

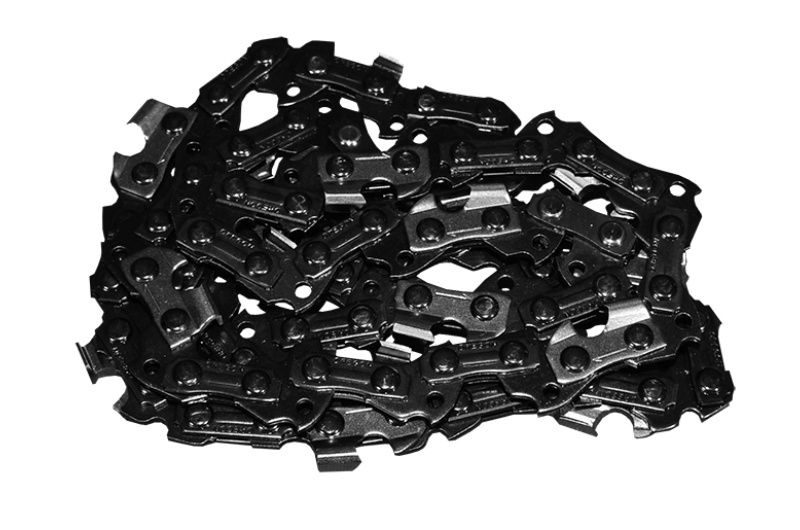

  • (1x) Saw chain (0.375, 0.050, 39DL)

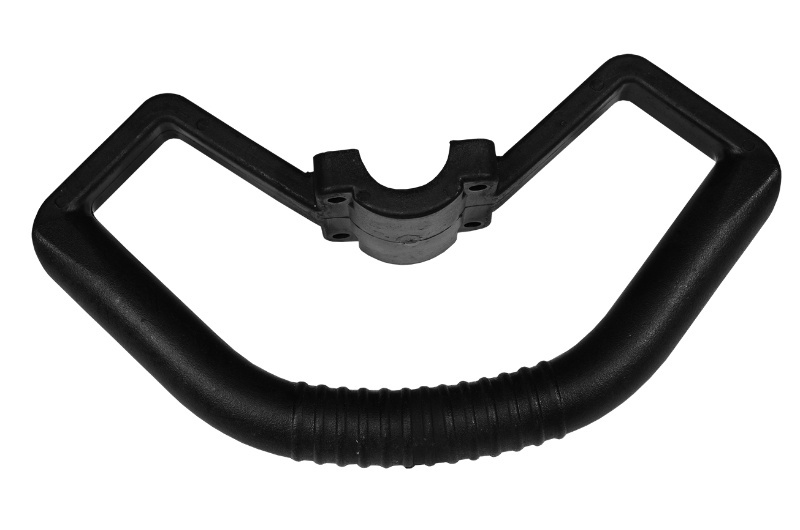

  • (1x) P-handle

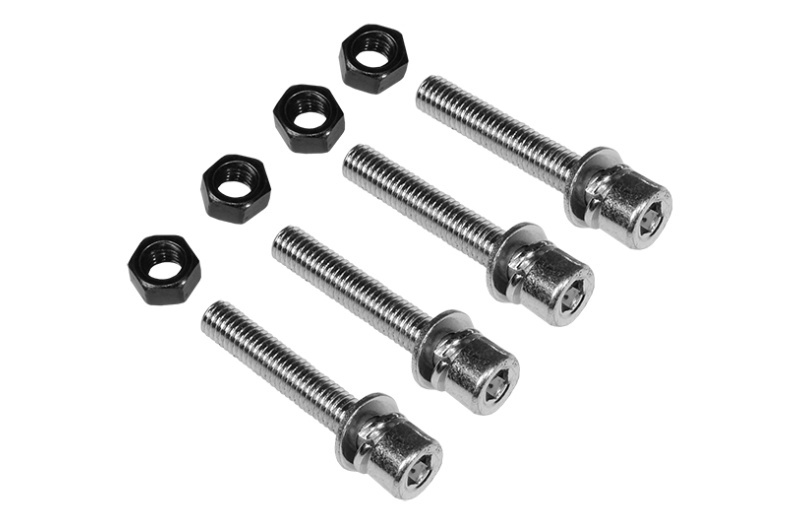

  • (4x) Nut M5
  • (4x) Screw M5x30

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

RELATED PRODUCTS

FAQ

Q       How much does a brush cutter cost?
A       The price of a brushcutter varies according to the type, brand, and power. Battery-powered or electric brush cutters are often more affordable, while high-powered gas-powered ones can be more expensive.
Q       What types of blades are used in a brush cutter?
A       Brush cutters can use metal blades or nylon strings. Metal blades are ideal for cutting thicker, stricter vegetation, while nylon lines are better suited for grass and lighter grass.
Q       How is a brush cutter powered?
A       Brush cutters can be powered by gasoline, electricity, or rechargeable batteries, depending on the type of brushcutter. Gasoline ones are usually more powerful and suitable for heavy-duty jobs, while electric or battery-powered ones are lighter and suitable for smaller jobs.
Q       What is the difference between a brush cutter and a lawn mower?
A       The main difference is that a brushcutter is designed to cut taller, denser vegetation, while a lawn mower is used to cut grass evenly. Brushcutters are usually more powerful and can handle more challenging terrain.
Q       What is a brush cutter?
A       A brushcutter is a powered tool used to cut grass, brush, shrubs, and unwanted vegetation in areas of gardens, fields, and grounds.
Q       What should I do if my hedge trimmer blades are damaged or dull?
A       You should stop using the tool, disconnect it from the power source, and replace or sharpen the blades as necessary.
Q       Can I use a hedge trimmer in rainy conditions?
A       Using a hedge trimmer in rainy conditions is not recommended due to the risk of slipping and electric shock.
A       The recommended cutting length varies depending on the type of hedge or shrub you are trimming, but generally, hedge trimmers typically have 16 to 30-inch long blades.
Q       What kind of maintenance does a hedge trimmer need?
A       A hedge trimmer requires regular maintenance, which includes sharpening the blades, cleaning the tool after use, checking and changing the oil or gasoline, and keeping moving parts well-lubricated.
Q       What is the typical lifespan of a brush cutter?
A       The useful life of a brushcutter depends on its use and proper maintenance, but generally, a well-maintained brush cutter can last several years.
