1.15HP powerful gasoline engine, long life of more than 500 continuous hours, easy electric start & hand start, uniquely designed muffler to reduce operating noise;
2. The largest pure copper wire high-quality motor, low internal consumption, rated 5.0kW & maximum 5.0kW power supply output is stable and continuous;
3. Reinforced frame and 15L large-capacity fuel tank, unique side panel design;

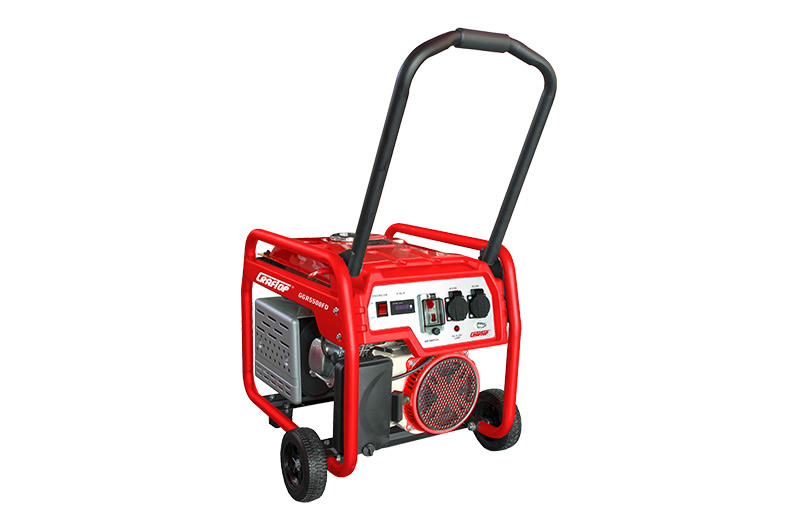

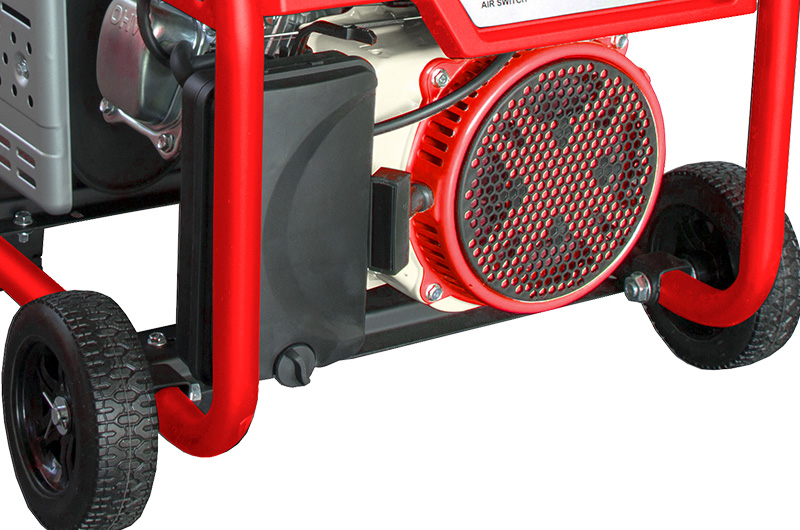

4. Foldable armrests, 6-inch solid wheels

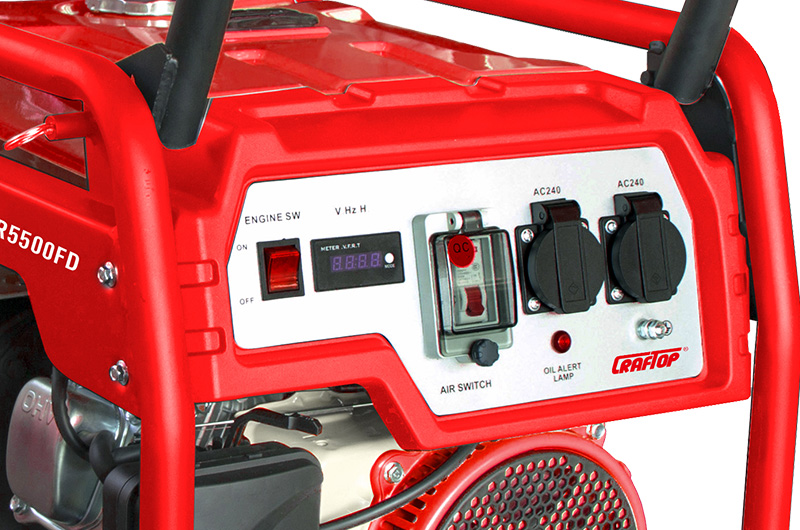

5.12V 8.3A DC output, power parameter digital meter
| Product Name | Gasoline Generator |
| Model Name | GGR5500FD |
| Picture |  |
| EAN code | #2555000014000 |
| Use: Full-time/Partial/Ocassional | Full-time |
| Generator type (avr/inverter) | AVR |
| Motor type (2stroke/4stroke/diesel) | 2stroke/Gasoline |
| Displacement (cc) | 420cc |
| Power output (rpm) | 3600rpm |
| Oil engine capacity (L) | 1.0L |
| Three phase max power | ─ |
| Three phase rated power | ─ |
| Single phase max power (kW) | 5 |
| Single phase rated power (kW) | 5.5 |
| Voltage (V) | 110V/220V |
| Frequency (Hz) | 60Hz |
| Fuel consumption (g/kWh or L/h) | |
| Running time at 75% of load hours | |
| Tank capacity (L) | 25L |
| Starting system | Recoil/Electric |
| Guaranteed sound level ( (LWA) dB (A))* | |
| Noise emission at 7m (dB (A))* | |
| Weight (kg(lbs)) | |
| Socket type ac (eu/uk/usa..) | USA |
| Number of sockets AC | 3 |
| Socket type DC | Post |
| Number of sockets DC | 1 |
| Oil guard | √ |
| Oil alarm | √ |
| Fuel level gauge | √ |
| Thermic protection | √ |
| Hour meter | |
| Volt meter | √ |
| Frequency meter | |
| Wheel kit | √ |
| Battery charger | √ |
| Logistic | |
| Box size (mm) | |
| Box weight (kg(lbs)) | 82kgs |
| Units container 20/40/40HQ | 40′: 264 |
| MOQ | 132pcs |
| Purchase pirce | ¥2,454.00 |
| Tax rebate rate | 13% |
| Product advantage | 1.continuous working 500hours; 2.Folding Handle; 3.6inch wheels; 4.DC 12V 8.3A output 5.Digtial Meter 6.Electric starting 7.Japan HONDA standard |
| * K factor according to Dir.2006/42/EC = 2.5dB (A) | |
| ** K factor according to Dir.2006/42/EC = 2m/s² | |
| √ Fitted with the part/function/accessory | |
| ─ N/A | |
