| CODE | PART NAME | CODE | PART NAME |

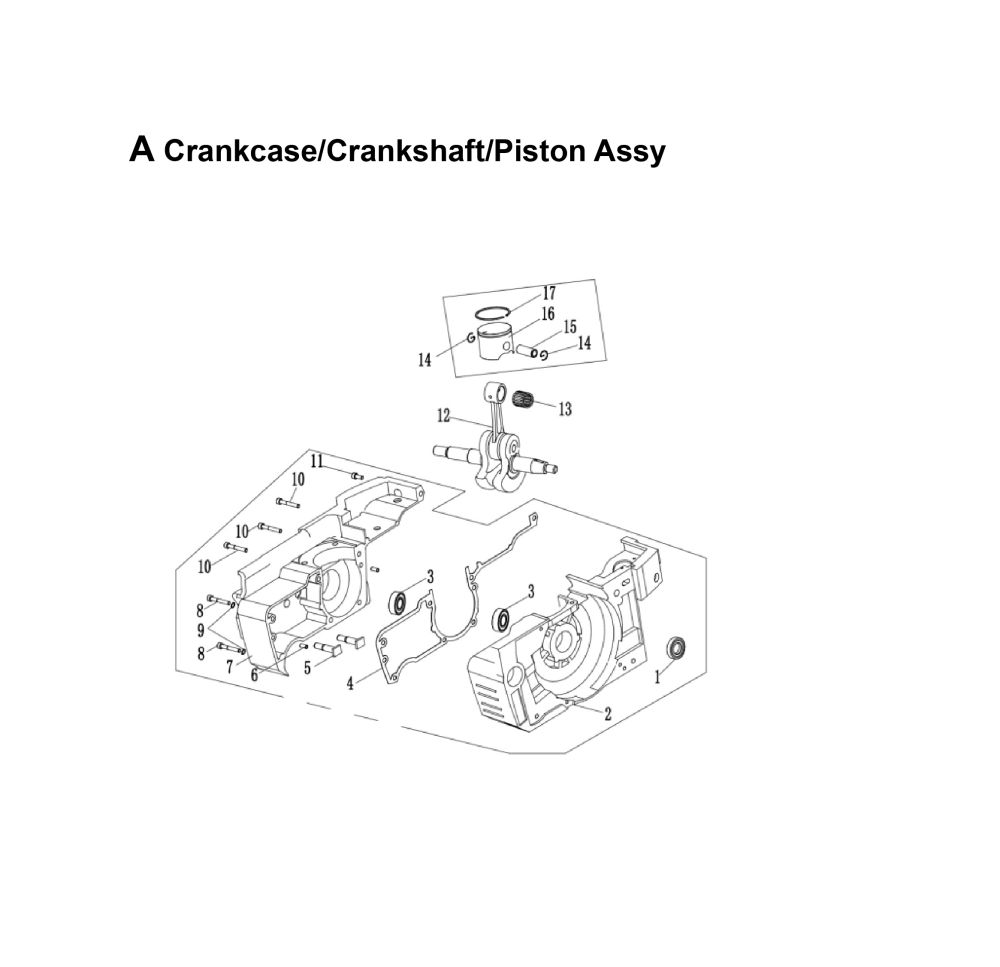

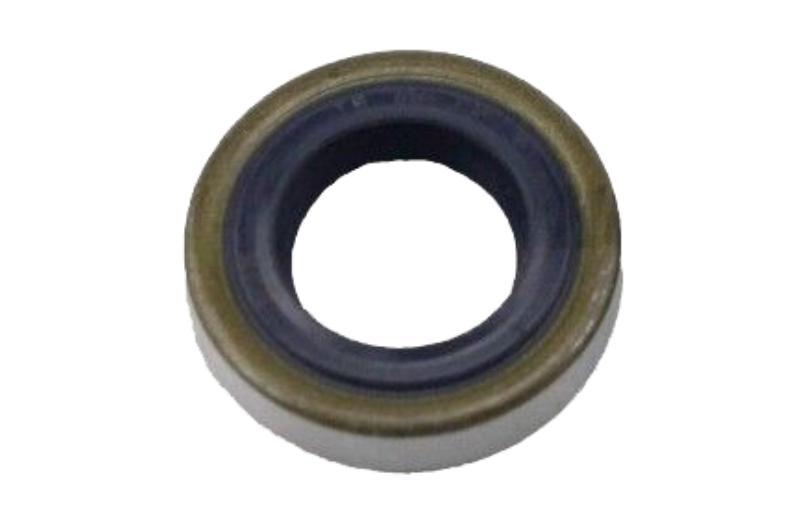

| A-1 | Oil Seal, Exposed Frame | E-8 | Dirt-Proof Cover |

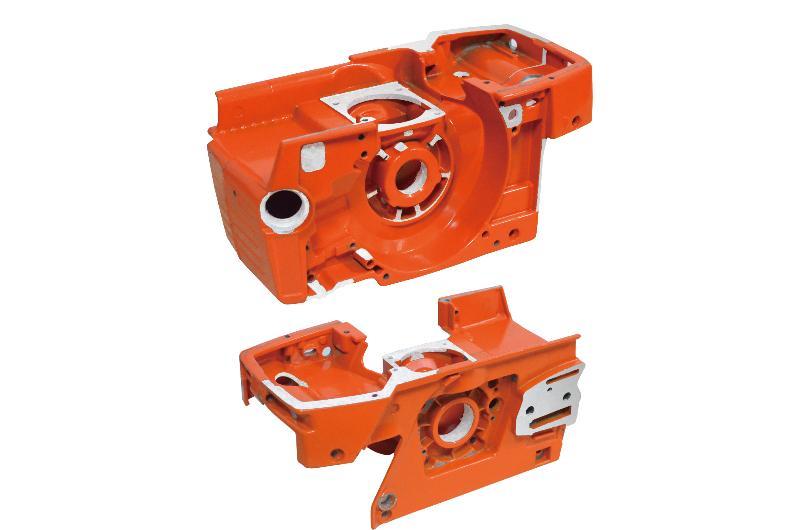

| A-2 | Crankcase L | E-9 | Choke Rod Sleeve |
| A-3 | Bearing | E-10 | Chroke Rod |

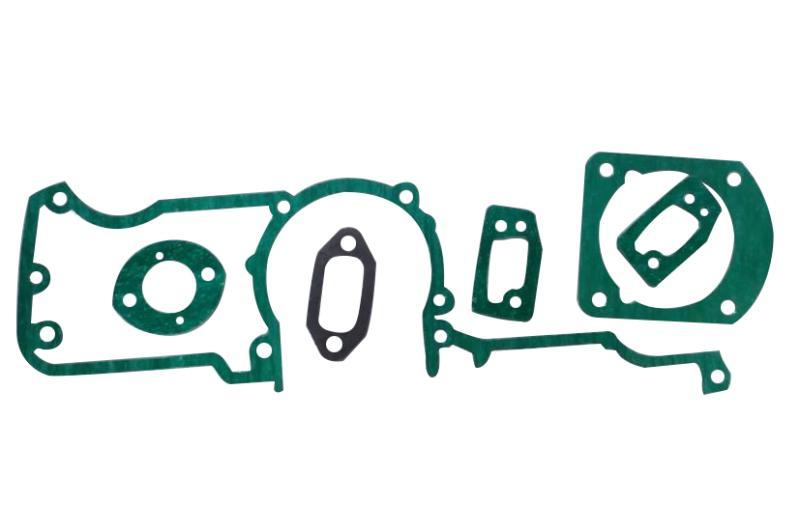

| A-4 | Crankcase Gasket | E-11 | Chroke rod Spring |
| A-5 | Bar Bolt | E-12 | Fuel Hose Dirt-Proof Cover |
| A-6 | Cylindrical Pin | E-13 | Fuel Pipe Circlip |

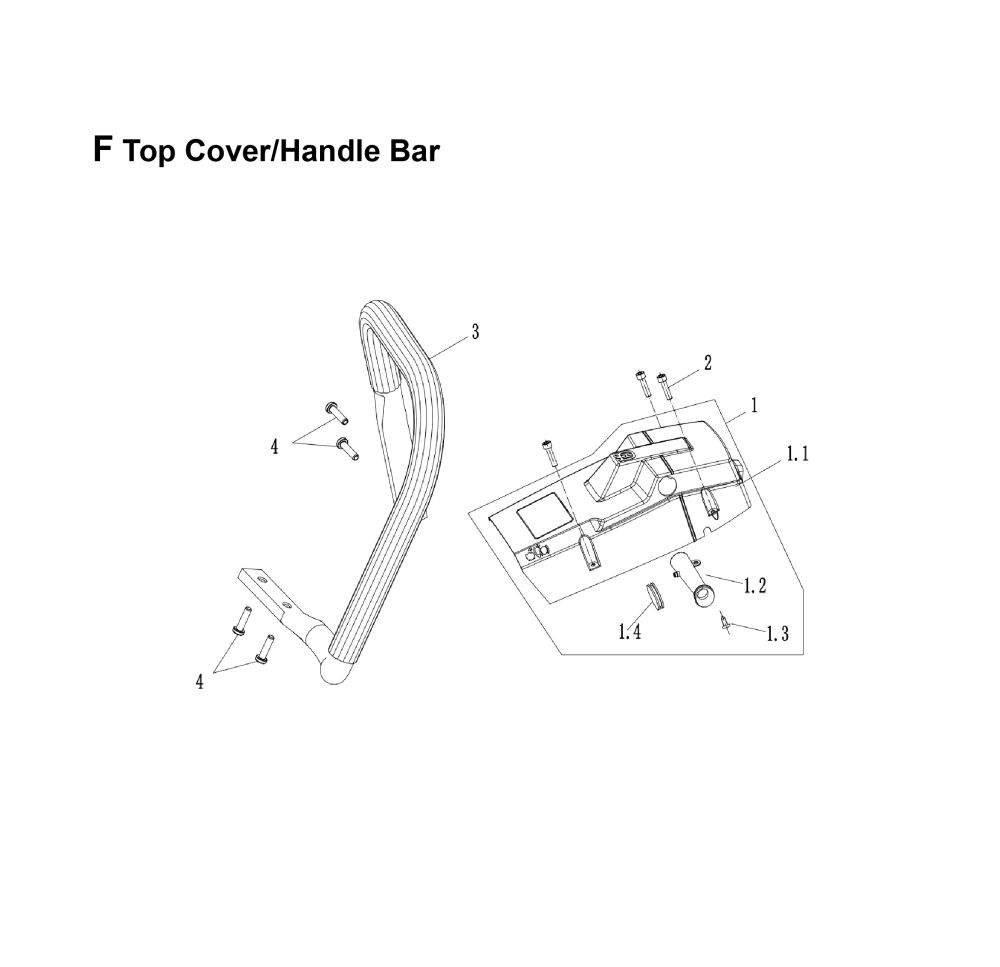

| A-7 | Crankcase R | F-1 | Cylinder Cover Assy |
| A-8 | Screw | F-1.1 | Cylinder Cover (with hole) |
| A-9 | Spring Pad | F-1.2 | Breather Tube, Cylinder Cover |
| A-10 | Screw | F-1.3 | Screw |
| A-11 | Screw | F-1.4 | Rubber Plug, Cylinder Cover |

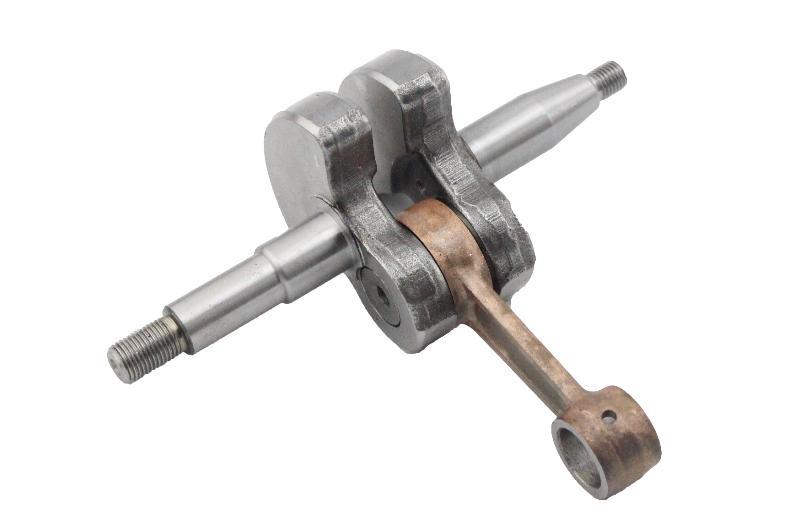

| A-12 | Crankshaft | F-2 | Screw |
| A-13 | Needle Bearing, Piston | F-3 | Handle |
| A-14 | Circlip,Piston Pin | F-4 | Screw |

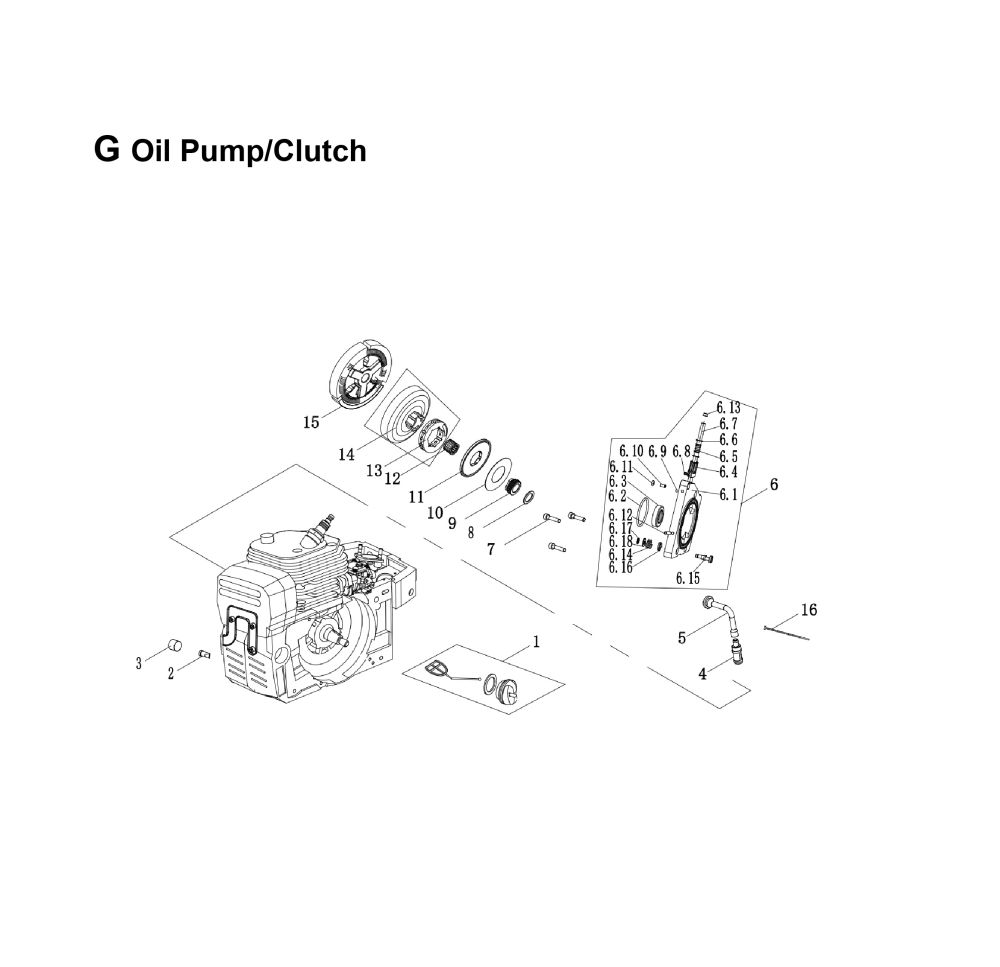

| A-15 | Piston Pin | G-1 | Oil Tank Cap Assy |

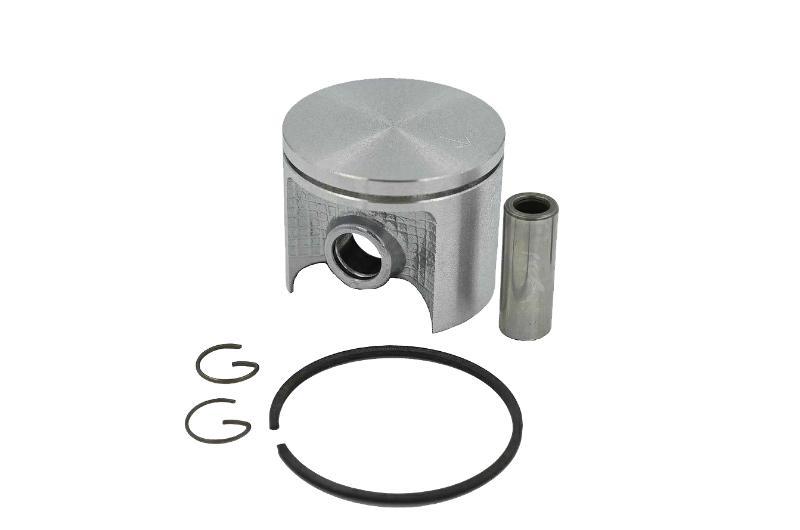

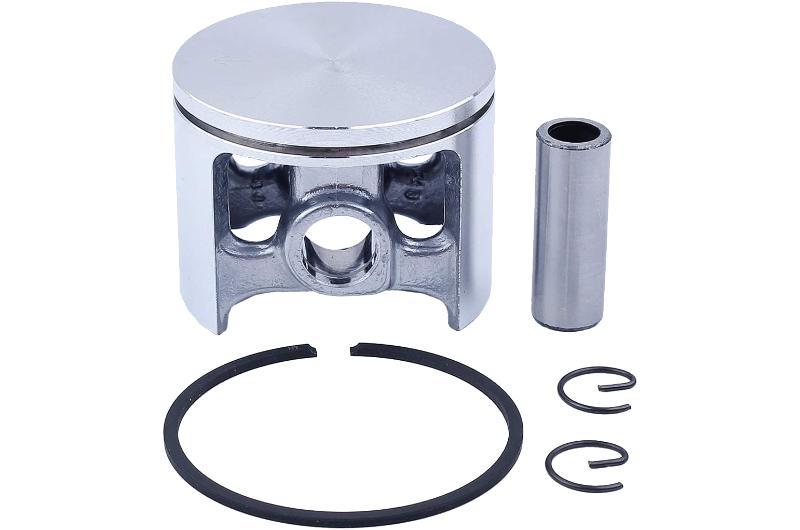

| A-16 | Piston | G-2 | Ventilation Valve for oil tank |
| A-17 | Piston Rings | G-3 | Breathable Filter Element |

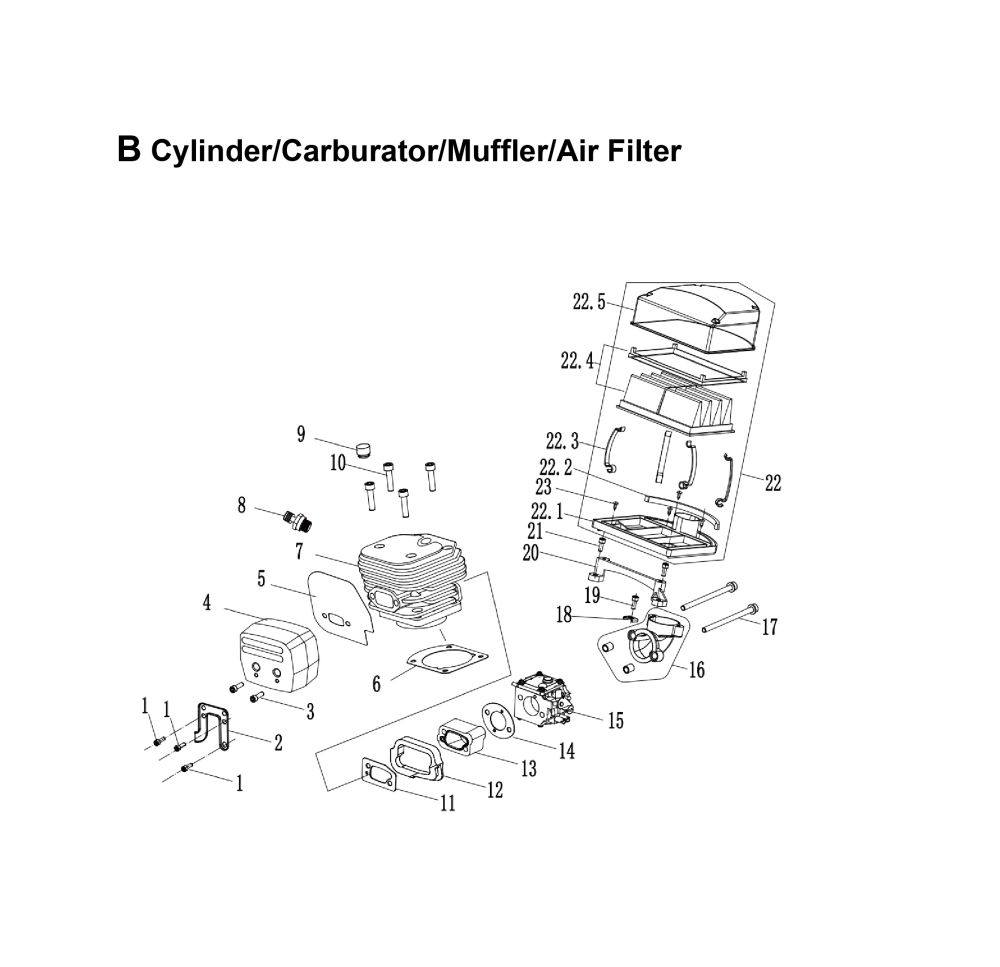

| B-1 | Screw | G-4 | Oil Filter Assy |
| B-2 | Muffler Support | G-5 | Oil Inlet Pipe |
| B-3 | Screw | G-6 | Oil Pump Assy |

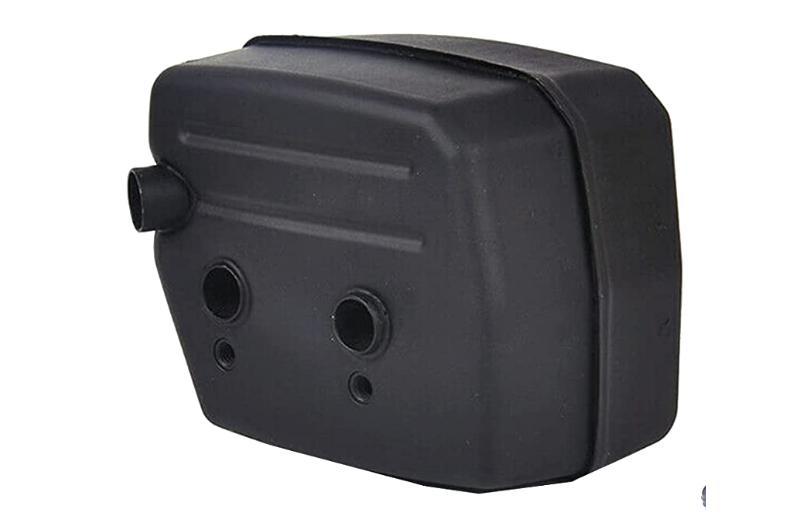

| B-4 | Muffler | G-6.1 | Oil Pump Body |
| B-5 | Gasket, Muffler | G-6.2 | O-ring |
| B-6 | Cylinder Gasket | G-6.3 | Oil Seal, Oil Pump |

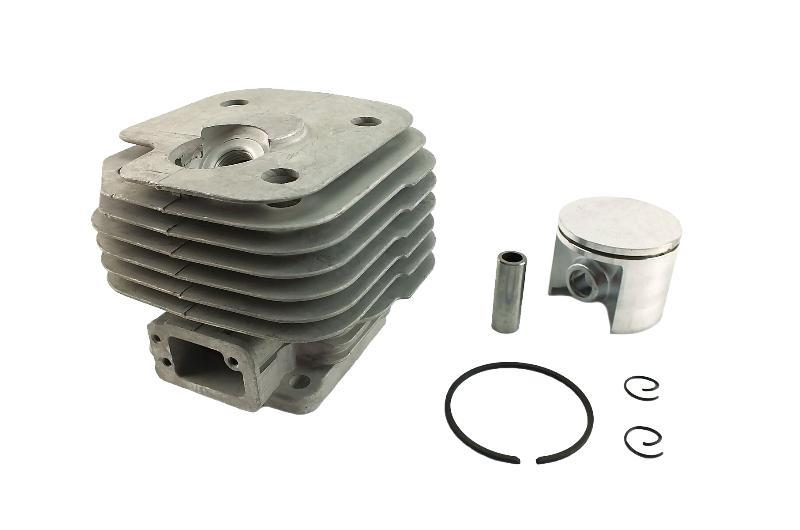

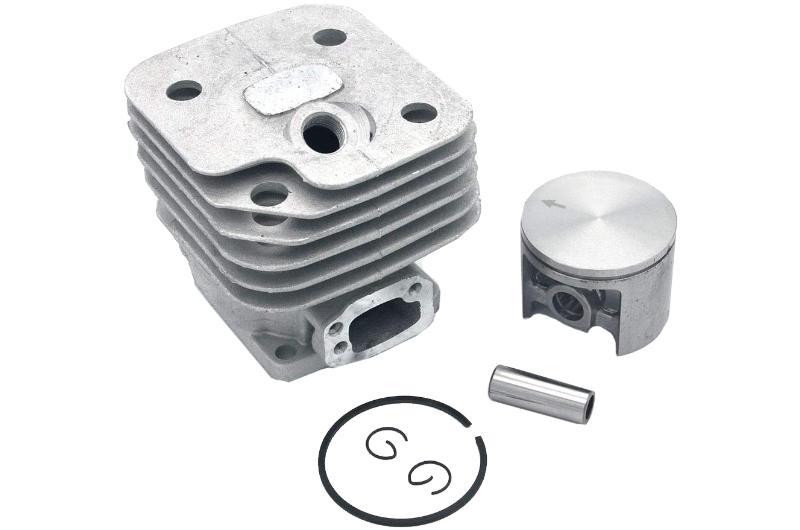

| B-7 | Cylinder | G-6.4 | Worm Gear |
| B-8 | Decompression valve | G-6.5 | Worm Gear Spring |
| B-9 | Buffer, Upper Cover | G-6.6 | Anti-wear Washer |
| B-10 | Screw | G-6.7 | Plunger |
| B-11 | Inlet Pipe Gasket | G-6.8 | Screw |
| B-12 | Inlet Pipe Rubber Sleeve | G-6.9 | Sealing Steel Balls |
| B-13 | Inlet Pipe | G-6.1 | Elastic Pin |
| B-14 | Carburetor Gasket | G-6.11 | O-ring |

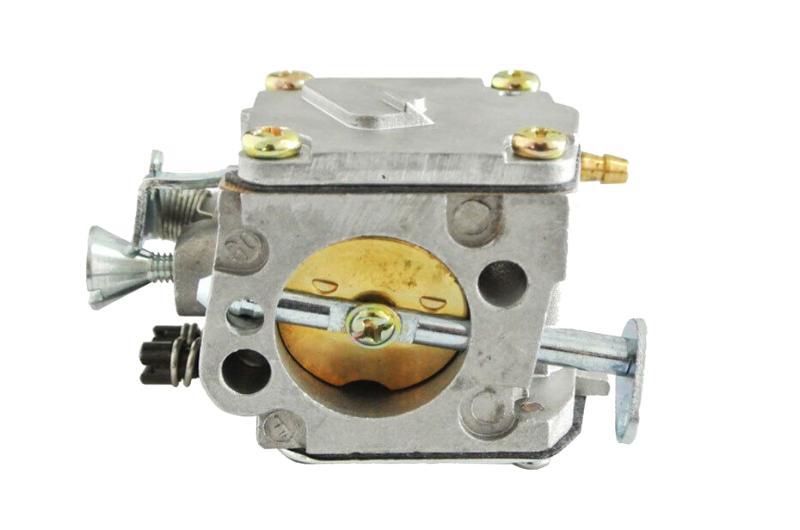

| B-15 | Carburetor | G-6.12 | Pin |
| B-16 | Intake Elbow Pipe | G-6.13 | Screw |
| B-17 | Screw, Carburetor | G-6.14 | Positioning Spring |
| B-18 | Washer | G-6.15 | Gear adjustment shaft |
| B-19 | Screw,Ignition Coil | G-6.16 | Positioning plate |
| B-20 | Housing, Air Filter | G-6.17 | circlip 3 |
| B-21 | Screw | G-6.18 | Flat Washer |
| B-22 | Air Filter Assy | G-7 | Screw |
| B-22.1 | Air Filter Seat | G-8 | Worm Gasket |
| B-22.2 | Sealing Strip, Air Filter | G-9 | Worm (plastic) |
| B-22.3 | Spring Clasp | G-10 | Worm |

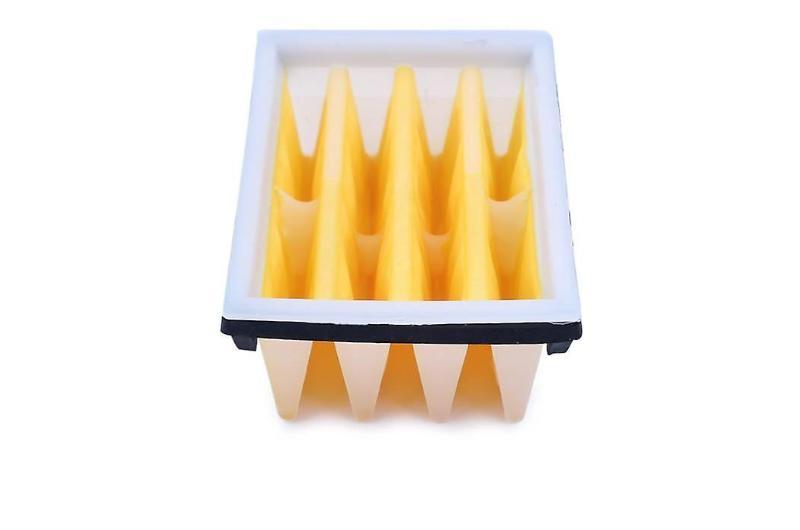

| B-22.4 | Air Filter | G-11 | Cover,Oil Pump |
| B-22.5 | Cover, Air Filter | G-12 | Clutch Needle Bearing |

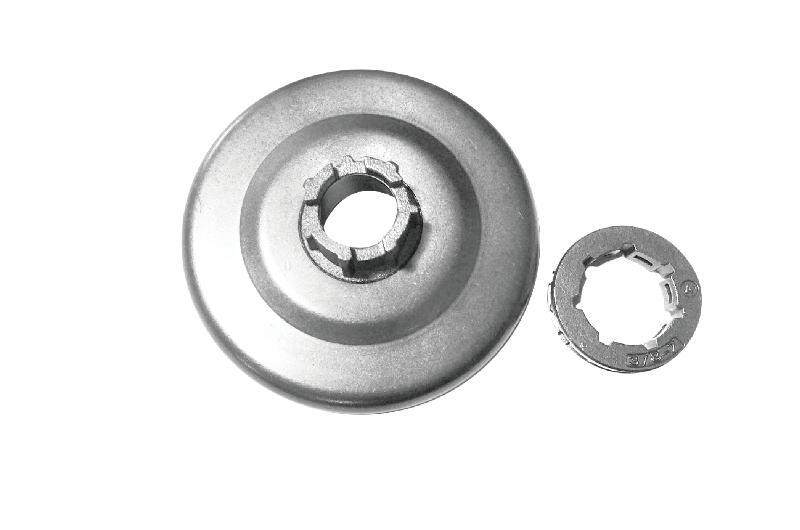

| B-23 | Screw | G-13 | Sprocket |

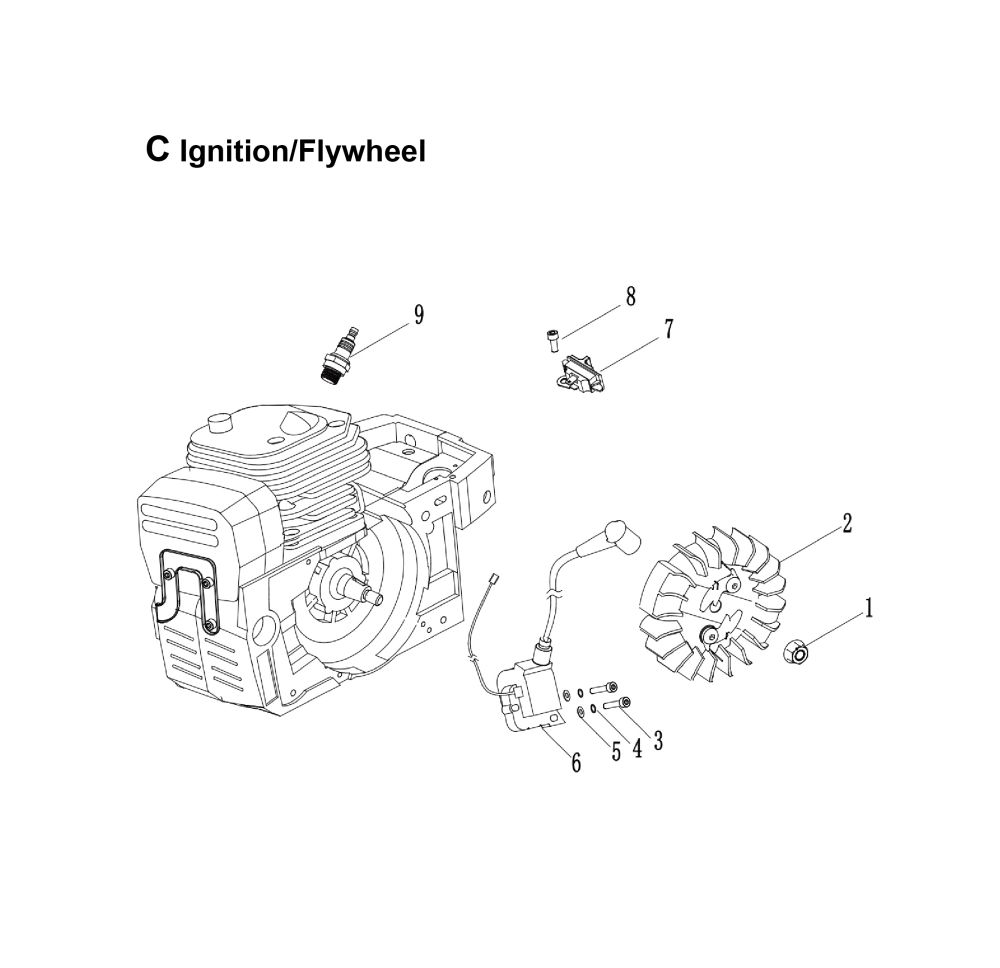

| C-1 | Nut | G-14 | Clutch Drum (Rim Type) |

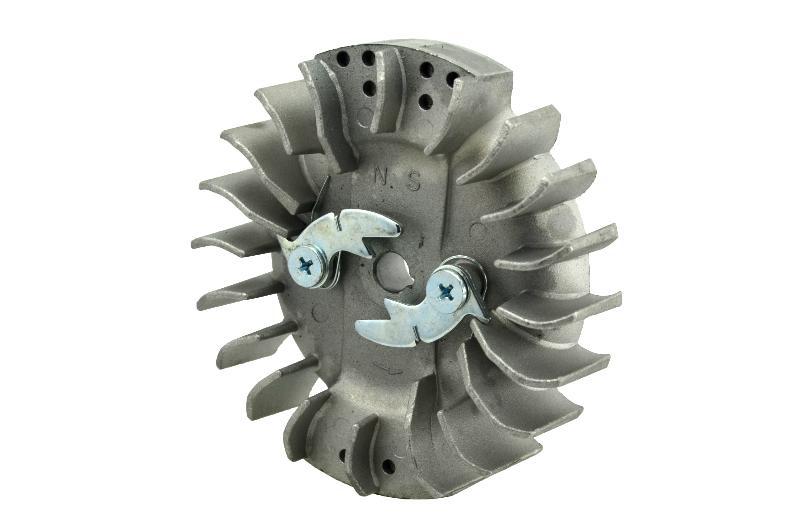

| C-2 | Flywheel | G-15 | Clutch Assy |
| C-3 | Screw | G-16 | Cable tie |

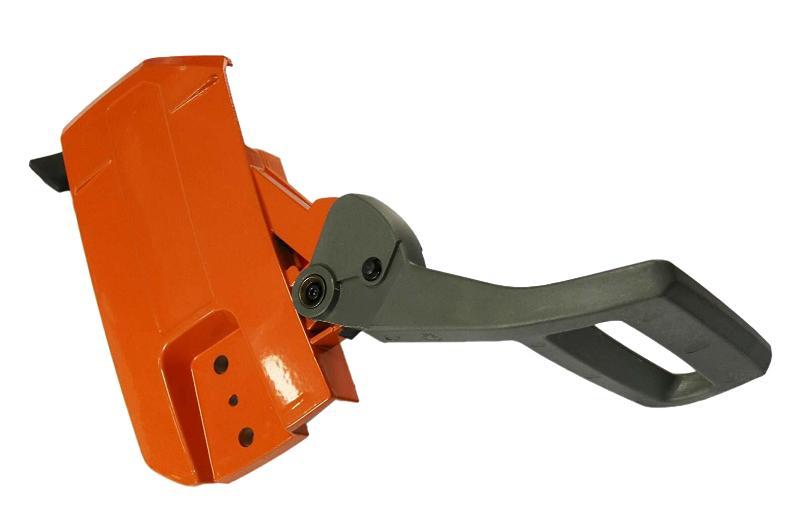

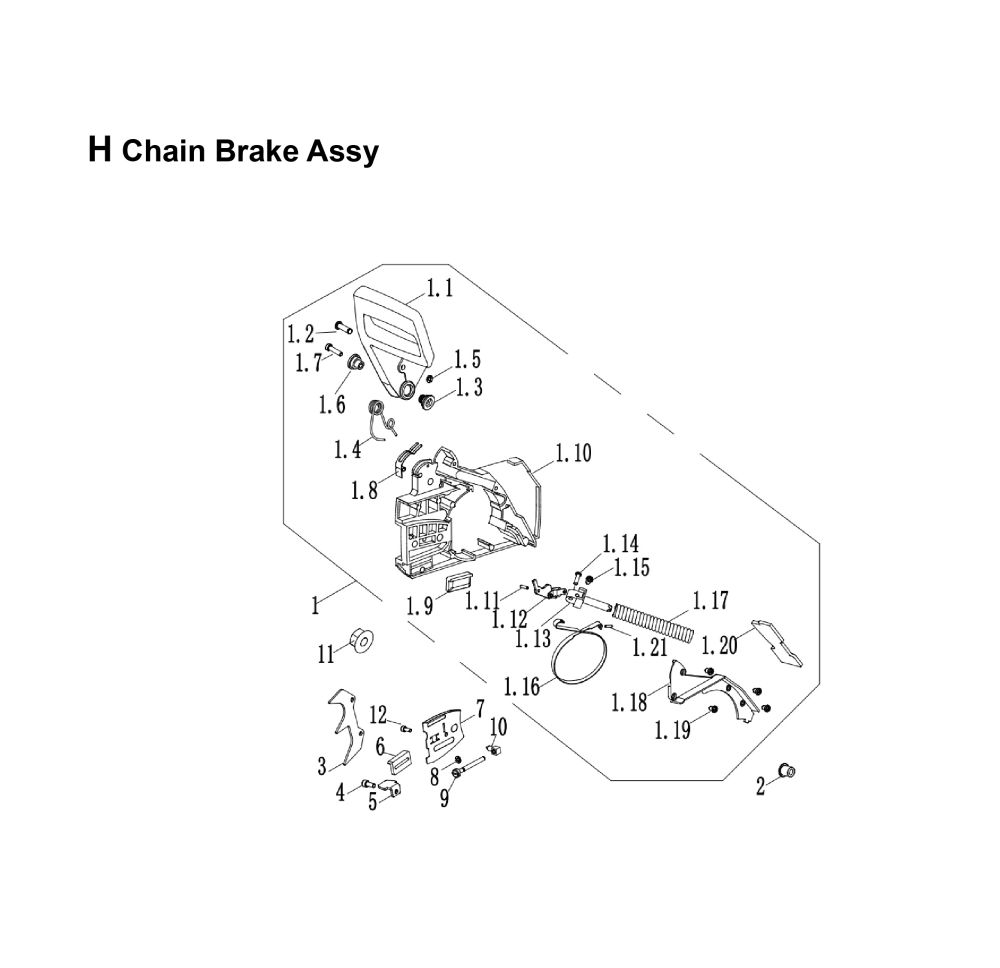

| C-4 | Spring washer | H-1 | Brake Assembly |
| C-5 | Flat Washer | H-1.1 | Braje lever |
| C-6 | Ignition Coil | H-1.2 | Pin |
| C-7 | ON/OFF Switch | H-1.3 | Right Pin Sleeve, Brake handle |
| C-8 | Screw | H-1.4 | Torsion Spring, Brake |

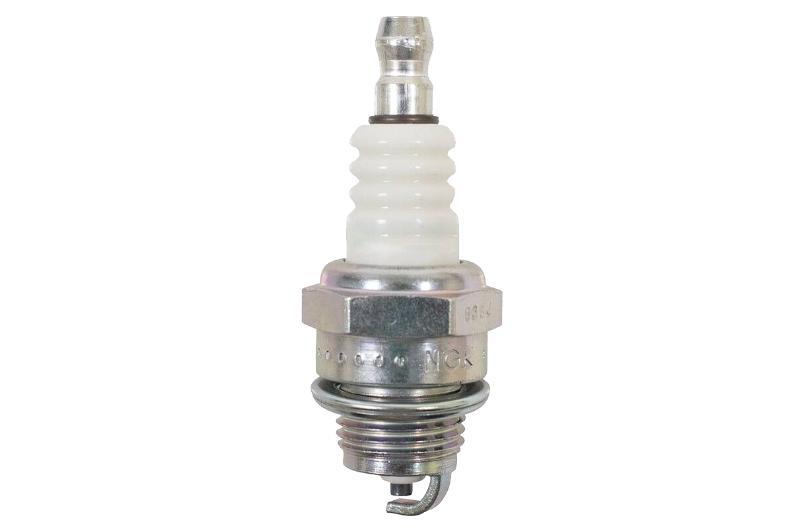

| C-9 | Spark Plug | H-1.5 | Circlip 4 |

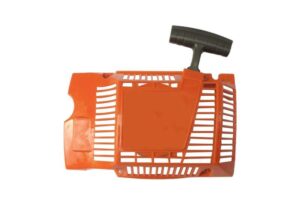

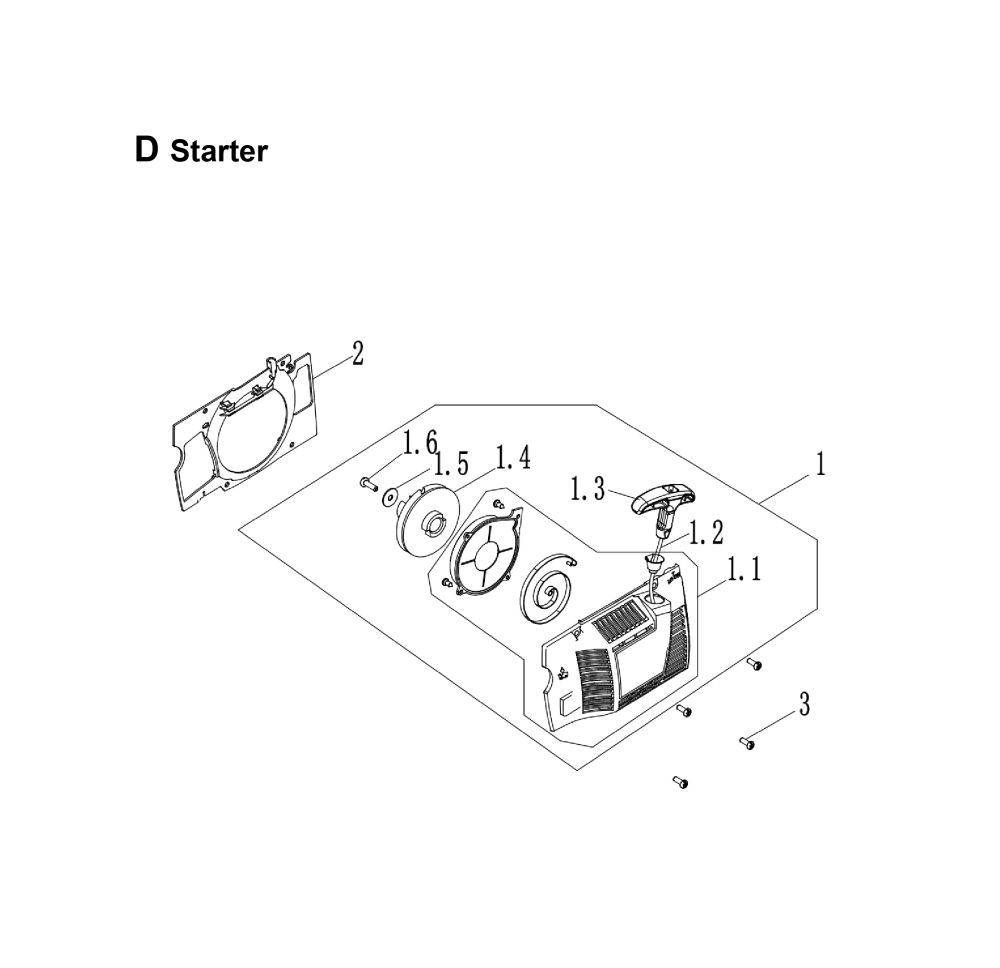

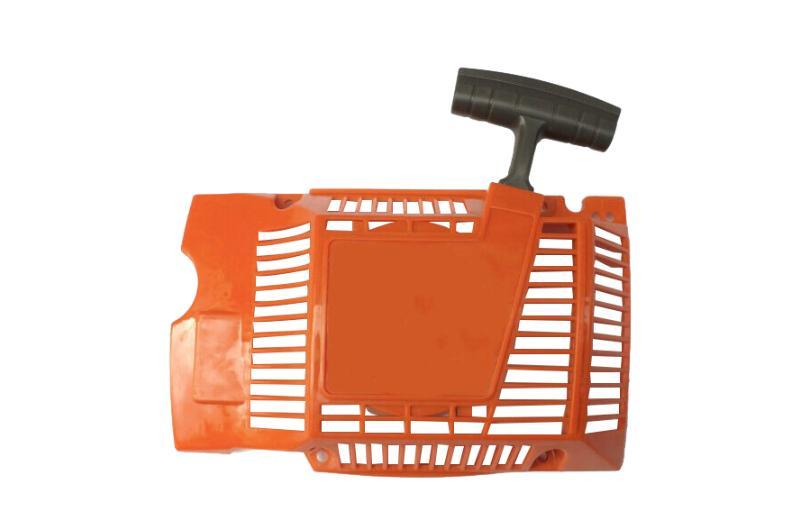

| D-1 | Starter Assembly | H-1.6 | Left Pin Sleeve, Brake handle |
| D-1.1 | Cover,Starter | H-1.7 | Screw |
| D-1.2 | Starter Rope | H-1.8 | Brake Pad |
| D-1.3 | Grip,Starter | H-1.9 | Chain Guide Block |
| D-1.4 | Pulley | H-1.10 | Brake Cover |
| D-1.5 | Flat washer | H-1.11 | Pin |
| D-1.6 | Screw | H-1.12 | Main And Auxiliary Lever Assy |
| D-2 | Fan Cover | H-1.13 | Stoper, Brake |
| D-3 | Screw | H-1.14 | Rivet |

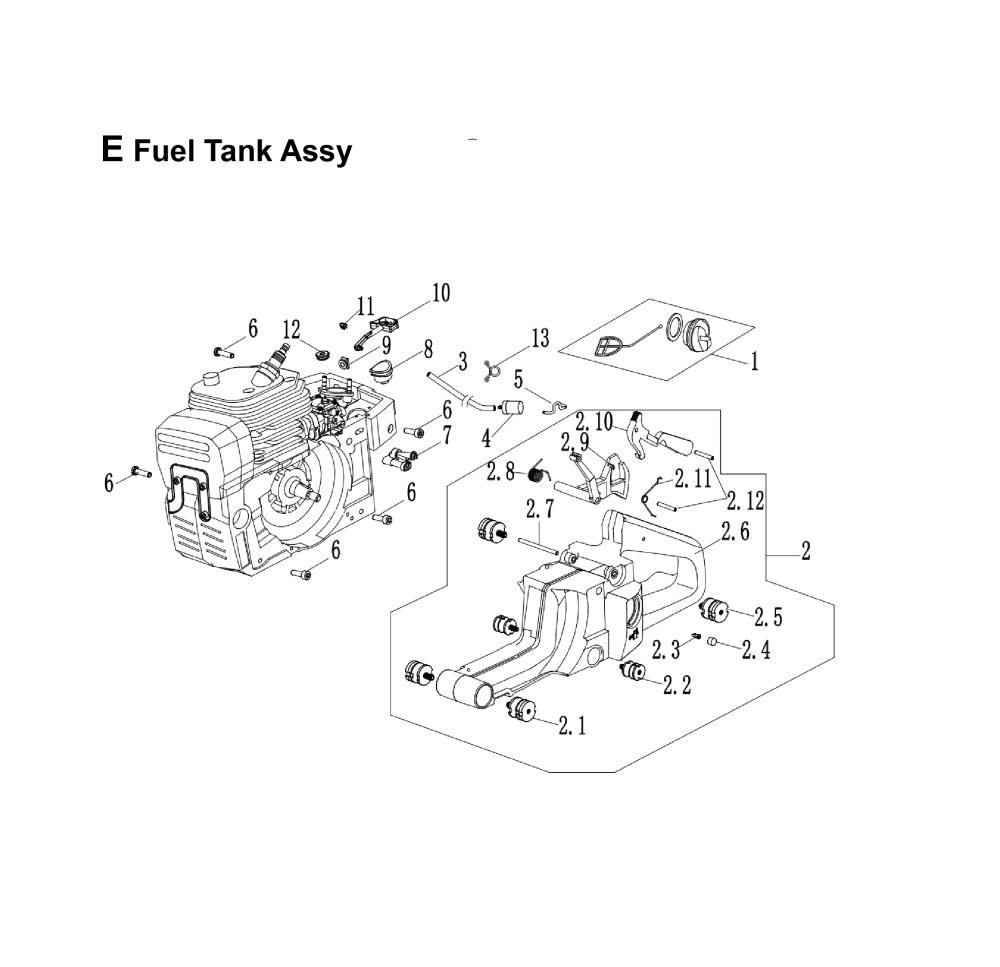

| E-1 | Fuel Tank Cap Assy | H-1.15 | Screw |
| E-2 | Fuel Tank Assy | H-1.16 | Brake Band |

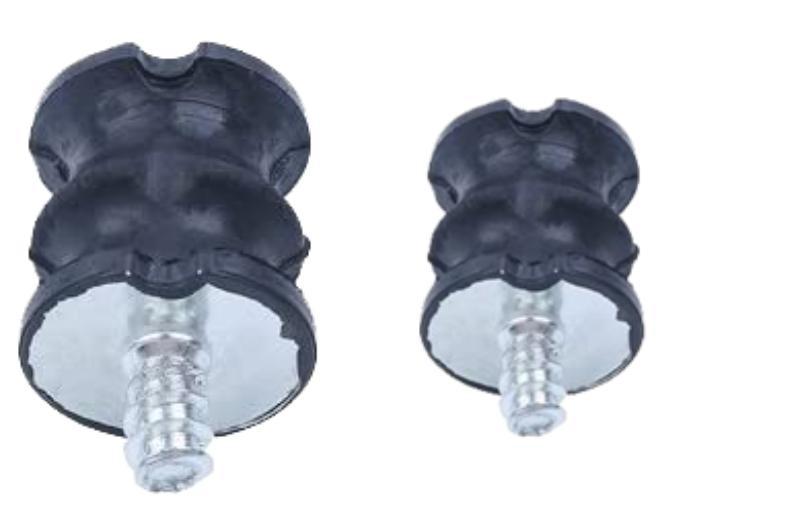

| E-2.1 | Big Buffer | H-1.17 | Brake Spring |
| E-2.2 | Main Buffer | H-1.18 | Brake Spring cover |
| E-2.3 | Ventilation Valve for fuel tank | H-1.19 | Screw |
| E-2.4 | Valve Block | H-1.20 | Chip Guide Rubber Block |
| E-2.5 | Main Buffer 2 | H-1.21 | Pin |
| E-2.6 | Fuel Tank | H-2 | Brake Positioning Sleeve |
| E-2.7 | trigger Shaft | H-3 | Spiked Bumper |
| E-2.8 | Throttle Spring | H-4 | Screw |
| E-2.9 | Throttle trigger | H-5 | Chain Block |
| E-2.1 | Throttle Interlock Arm | H-6 | Chain Guide |
| E-2.11 | Control Arm Torsion Spring | H-7 | Oil outlet plate |
| E-2.12 | Throttle trigger Pin | H-8 | Circlip 4 |
| E-3 | Fuel Hose | H-9 | Adjustment Screw |

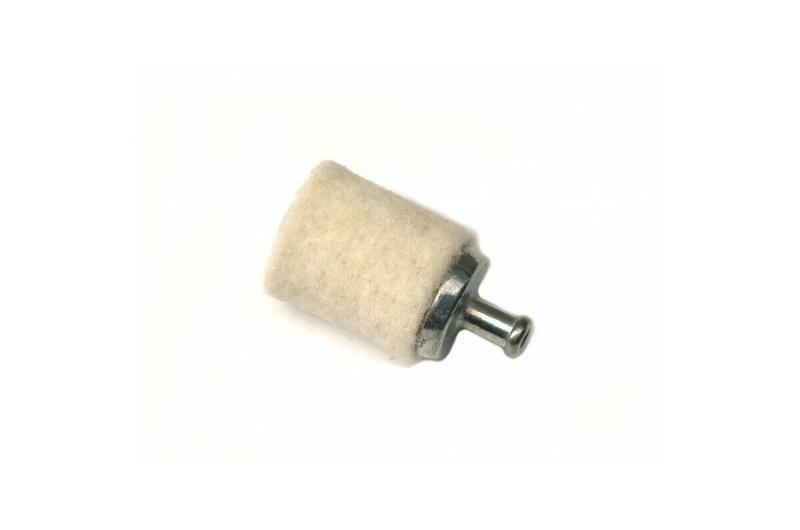

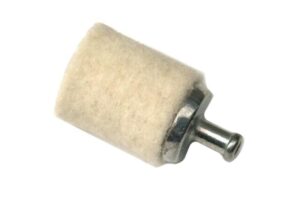

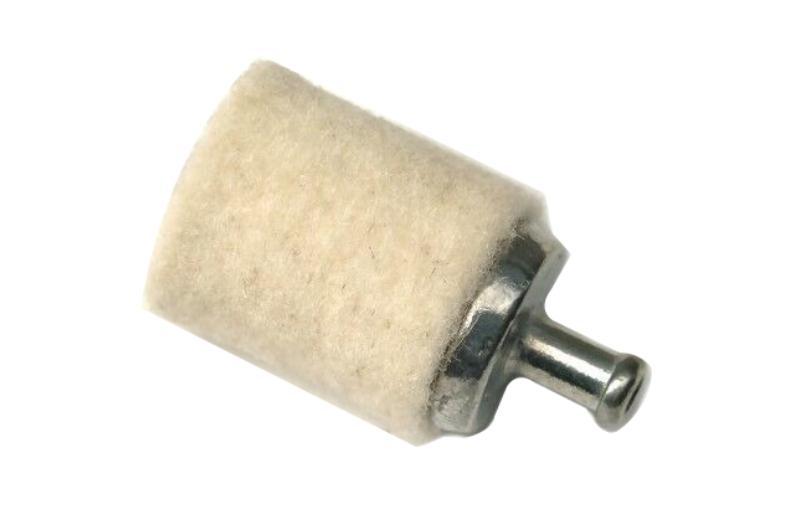

| E-4 | Fuel Filter | H-10 | Adjustment Nut |
| E-5 | Throttle Rod Spring | H-11 | Nut |
| E-6 | Screw | H-12 | Screw |
| E-7 | Adjusting Guide Sleeve | ||
